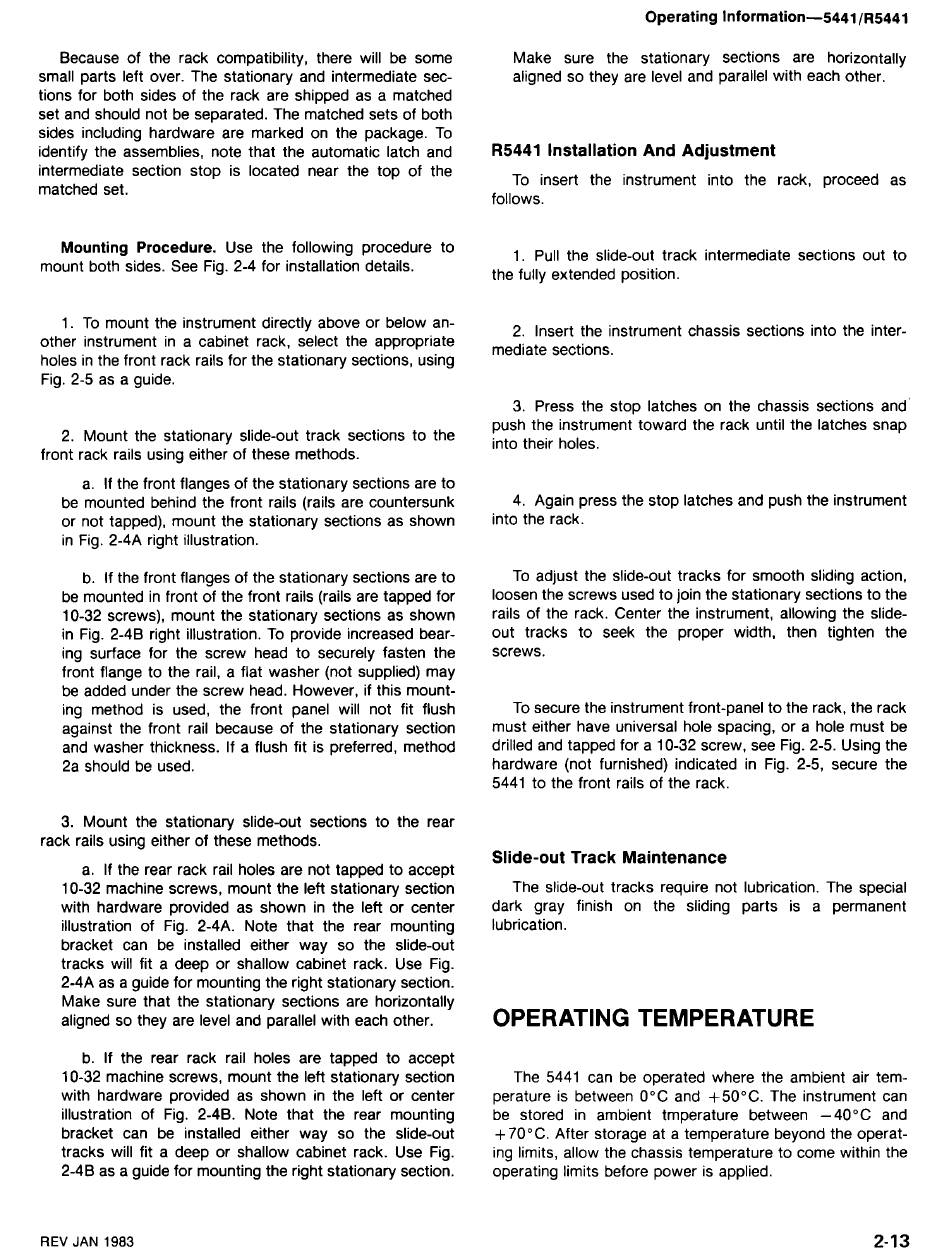

Operating Inforrnation--5441/~544i
Because of the rack compatibility, there will be some
Make sure the stationary sections are horizontally
small parts left over. The stationary and intermediate sec-
aligned so they are level and parallel with each other.
tions for both sides of the rack are shipped as a matched
set and should not be separated. The matched sets of both
sides including hardware are marked on the package. To
identify the assemblies, note that the automatic latch and
R5441 Installation And Adjustment
intermediate section stop is located near the top of the
To insert the instrument into the rack, proceed as
matched set.
follows.
Mounting Procedure. Use the following procedure to
1. Pull the slide-out track intermediate sections out to
mount both sides. See Fig. 2-4 for installation details.
the fully extended position.
1. To mount the instrument directly above or below an-
2. Insert the instrument chassis sections into the inter-
other instrument in a cabinet rack, select the appropriate
mediate sections.
holes in the front rack rails for the stationary sections, using
Fig. 2-5 as a guide.
3. Press the stop latches on the chassis sections and'
push the instrument'toward the rack until the latches snap
2. Mount the stationary slide-out track sections to the
into their holes,
front rack rails using either of these methods.
a. If the front flanges of the stationary sections are to
be mounted behind the front rails (rails are countersunk
4. Again press the stop latches and push the instrument
or not tapped), mount the stationary sections as shown
into the rack.
in Fig. 2-4A right illustration.
b. If the front flanges of the stationary sections are to
be mounted in front of the front rails (rails are tapped for
10-32 screws), mount the stationary sections as shown
in Fig. 2-4B right illustration. To provide increased bear-
ing surface for the screw head to securely fasten the
front flange to the rail, a flat washer (not supplied) may
be added under the screw head. However, if this mount-
ing method is used, the front panel will not fit flush
against the front rail because of the stationary section
and washer thickness. If a flush fit is preferred, method
2a should be used.
To adjust the slide-out tracks for smooth sliding action,
loosen the screws used to join the stationary sections to the
rails of the rack. Center the instrument, allowing the slide-
out tracks to seek the proper width, then tighten the
screws.
To secure the instrument front-panel to the rack, the rack
must either have universal hole spacing, or a hole must be
drilled and tapped for a 10-32 screw, see Fig. 2-5. Using the
hardware (not furnished) indicated in Fig. 2-5, secure the
5441 to the front rails of the rack.
3. Mount the stationary slide-out sections to the rear
rack rails using either of these methods.
Slide-out Track Maintenance
a. If the rear rack rail holes are not tapped to accept
10-32 machine screws, mount the left stationary section
The slide-out tracks require not lubrication. The special
with hardware provided as shown in the left or center
dark gray finish on the sliding parts is a permanent
illustration of Fig. 2-4A. Note that the rear mounting
lubrication.
bracket can be installed either way so the slide-out
tracks will fit a deep or shallow cabinet rack. Use Fig.
2-4A as a guide for mounting the right stationary section.
Make sure that the stationary sections are horizontally
aligned so they are level and parallel with each other.
OPERATING TEMPERATURE
b. If the rear rack rail holes are tapped to accept
10-32 machine screws, mount the left stationary section
The 5441 can be operated where the ambient air tem-
with hardware provided as shown in the left or center
perature is between 0°C and +50°C. The instrument can
illustration of Fig. 2-48. Note that the rear mounting
be stored in ambient tmperature between -40°C
and
bracket can be installed either way so the slide-out
+7OoC. After storage at a temperature beyond the operat-
tracks will fit a deep or shallow cabinet rack. Use Fig.
ing limits, allow the chassis temperature to come within the
2-4B as a guide for mounting the right stationary section.
operating limits before power is applied.
REV JAN
1983
