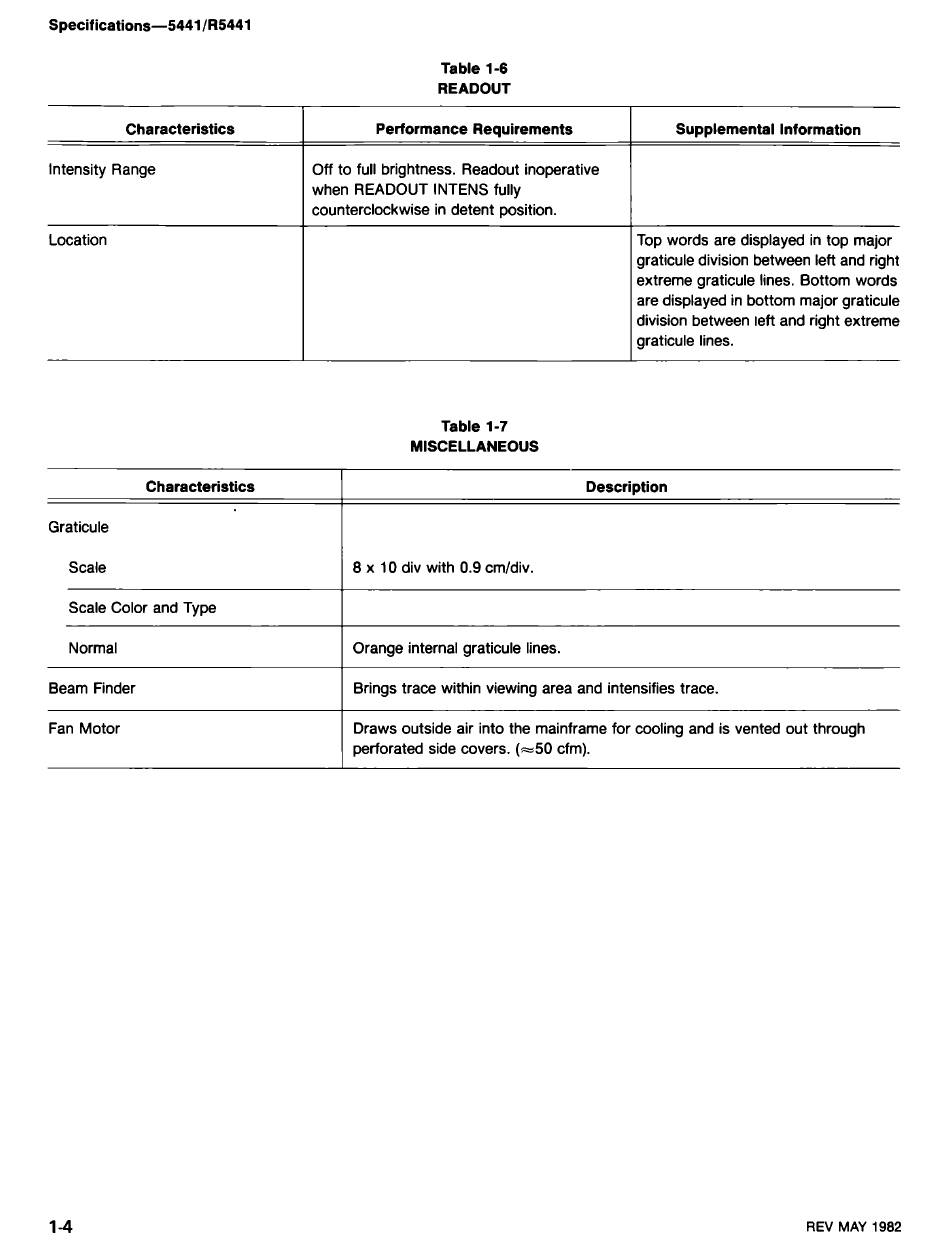

Table 1-6
READOUT
Table
1-7
MISCELLANEOUS
Characteristics
Intensity Range
Location
REV MAY 1982
Performance Requirements
Off to full brightness. Readout inoperative
when READOUT INTENS fully
counterclockwise in detent position.
Characteristics
Graticule
Scale
Scale Color and Type
Normal
Beam Finder
Fan Motor
Supplemental Information
Top words are displayed in top major
graticule division between left and right
extreme graticule lines. Bottom words
are displayed in bottom major graticule
division between left and right extreme
graticule lines.
Description
8 x 10 div with 0.9 cmldiv.
Orange internal graticule lines.
Brings trace within viewing area and intensifies trace.
Draws outside air into the mainframe for cooling and is vented out through
perforated side covers. ( 4 0 cfm).
