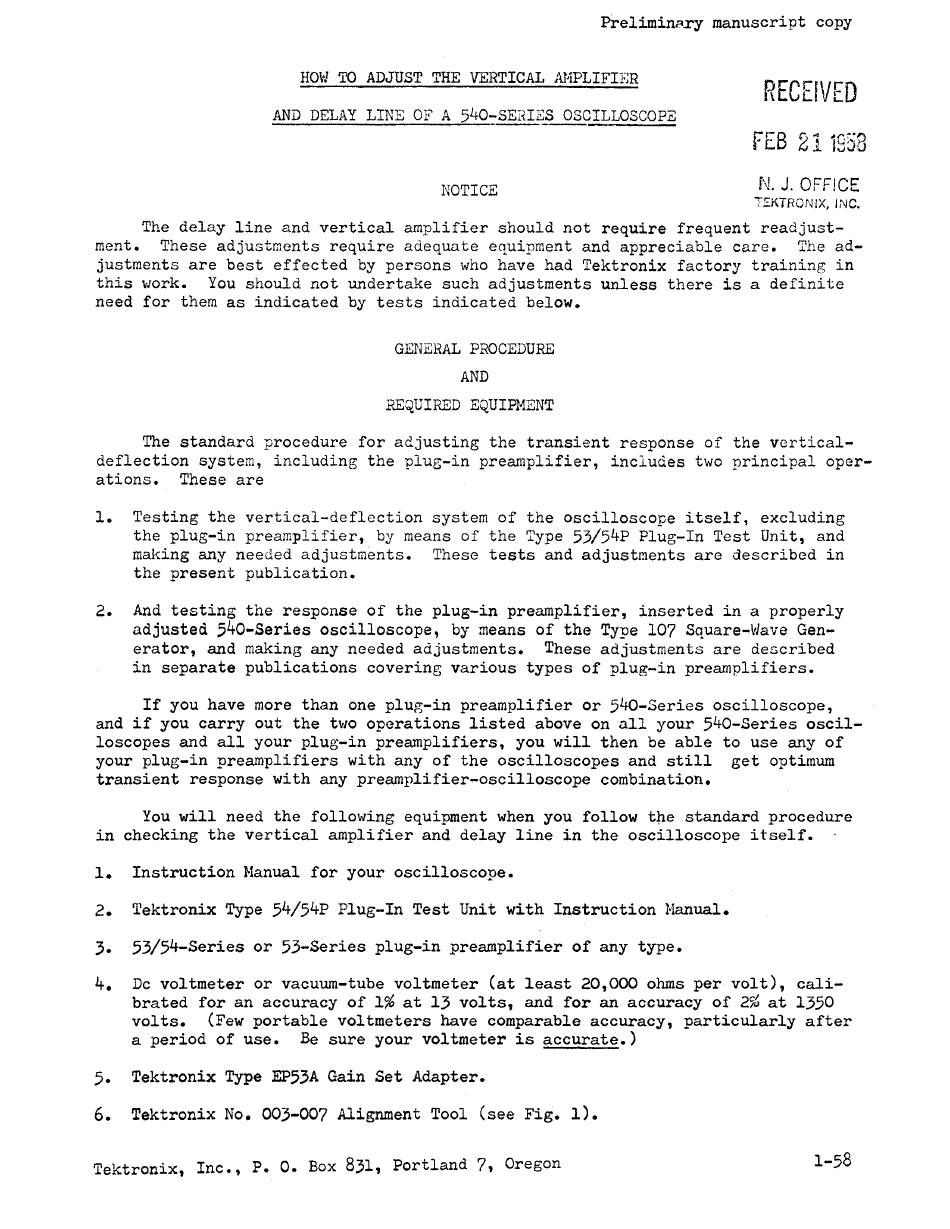

AND DELAY LINE OF A 540-SERIES OSCILLOSCOPE
The delay line and vertical amplifier should not require frequent readjust
ment.
These adjustments require adequate equipment and appreciable care.
justments are best effected by persons who have had Tektronix factory training in
this work.
You should not undertake such adjustments unless there is a definite
need for them as indicated by tests indicated below.
The standard procedure for adjusting the transient response of the vertical-
deflection system, including the plug-in preamplifier, includes two principal oper
ations.
These are
1.
Testing the vertical-deflection system of the oscilloscope itself, excluding
the plug-in preamplifier, by means of the Type 53/5^P Plug-In Test Unit, and
making any needed adjustments.
the present publication.
2.
And testing the response of the plug-in preamplifier, inserted in a properly
adjusted 5^0-Series oscilloscope, by means of the Type 107 Square-Wave Gen
erator, and making any needed adjustments.
in separate publications covering various types of plug-in preamplifiers.
If you have more than one plug-in preamplifier or 5^0-Series oscilloscope,
and if you carry out the two operations listed above on all your 5^0-Series oscil
loscopes and all your plug-in preamplifiers, you will then be able to use any of
your plug-in preamplifiers with any of the oscilloscopes and still
transient response with any preamplifier-oscilloscope combination.
You will need the following equipment when you follow the standard procedure
in checking the vertical amplifier and delay line in the oscilloscope itself.
1.
Instruction Manual for your oscilloscope.
2.
Tektronix Type 5 ^ / 5 ^ Plug-In Test Unit with Instruction Manual.
3.
53/5^-Series or 53-Series plug-in preamplifier of any type.
k.
Dc voltmeter or vacuum-tube voltmeter (at least 20,000 ohms per volt), cali
brated for an accuracy of
volts.
(Few portable voltmeters have comparable accuracy, particularly after
a period of use.
5.
Tektronix Type EP53A Gain Set Adapter.
6.
Tektronix No. 003-007 Alignment Tool (see Fig. 1).
Tektronix, Inc., P. 0. Box 831, Portland 7, Oregon
HOW TO ADJUST THE VERTICAL AMPLIFIER
NOTICE
GENERAL PROCEDURE
AND
REQUIRED EQUIPMENT
These tests and adjustments are described in
1% at 13 volts, and for an accuracy of 2% at 1350
Be sure your voltmeter is accurate.)
Preliminary manuscript copy
These adjustments are described
R E C E IV E D
N. J. OFFICE
FEKTRCNIX, IN C .
The ad
get optimum
1-58
