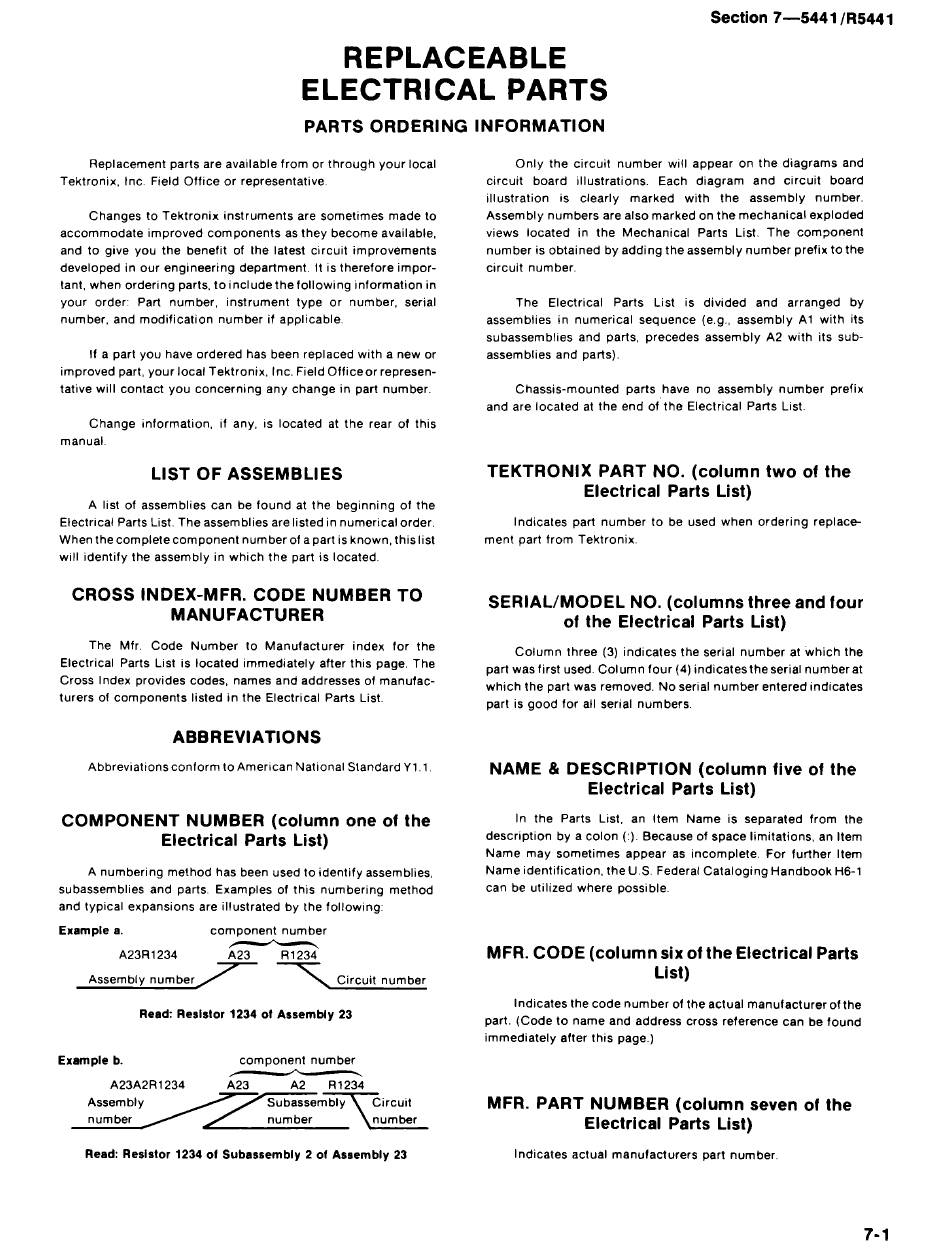

Tektronix 5441 Instruction Manual page 105

Section
7-544 1 /I3544 1
REPLACEABLE
ELECTRICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix. Inc. Field Office or representative
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available.
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore impor-
tant, when ordering parts, t o include the following information in
your order: Part number, instrument type or number, serial
number, and modification number if applicable.
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix. Inc. Field Officeor represen-
tative will contact you concerning any change i n part number.
Only the circuit number will appear on the diagrams and
circuit board illustrations. Each diagram and circuit board
~llustration is clearly marked with the assembly number.
Assembly numbers are also marked on the mechanical exploded
views located in the Mechanical Parts List. The com2onent
number is obtained by adding theassembly number prefix to the
circuit number.
The Electrical Parts List is divided and arranged by
assemblies in numerical sequence (e.g., assembly A1 with its
subassemblies and parts, precedes assembly A2 with its sub-
assemblies and parts).
Chassis-mounted parts have no assembly number prefix
and are located at the end o f t h e Electrical Parts List.
Change information, i f any.
IS
located at the rear of this
manual
LIST OF ASSEMBLIES
TEKTRONIX PART NO. (column two of the
Electrical Parts List)
A list of assemblies can be found at the beginning of the
Electr~cal Parts List. The assemblies are listed in numerical order. Indicates part number to be used when ordering replace-
When thecompletecomponent number of a part is known, thislist ment part from Tektronix.
will identify the assembly in which the part is located.
CROSS INDEX-MFR. CODE NUMBER TO
SERIALIMODEL NO. (columns three and four
MANUFACTURER
of the Electrical Parts List)
The Mfr. Code Number to Manufacturer index for the
Column three (3) indicates the serial number at which the
Electrical Parts List is located immediately after this page. The
part was first used. Column four (4) indicatestheserial numberat
Cross Index provides codes, names and addresses of manufac-
which the part was removed. N o serial number entered indicates
turers of components listed i n the Electrical Parts List.
part is good for all serial numbers.
ABBREVIATIONS
Abbrev~attonsconform to Amer~can Natlonal Standard ~ 1 . 1 NAME & DESCRlPTlON (column five of the
Electrical Parts List)
COMPONENT NUMBER (column one of the
In the Parts List, an Item Name is separated from the
Electrical Parts List)
description by a colon (:). Because of space limitations, an Item
Name may sometimes appear as incomplete. For further Item
A numbering method has been used to identify assemblies,
Name identification, the U.S. Federal Cataloging Handbook H6-1
subassemblies and parts. Examples of this numbering method
can be utilized where possible.
and typical expansions are illustrated by the following
Example a. component number
Y
~ 2 3 ~ 1 2 3 4 ~ 2 3 ~ 1 2 3 4
MFR. CODE (column six of the Electrical Parts
Assembly number Circuit number
List)
Read: Reslslor 1234 of Assembly 23
E x a m ~ l e b.
c o m ~ o n e n t number
A23A2R1234 A23 A2 R1234
Assembly / - / - m - c i r c u i t
number
/ /
number \number
lndlcates the code number of the actual manufacturer of the
part. (Code to name and address cross reference can be found
immediately after this page.)
MFR. PART NUMBER (column seven of the
Electrical Parts List)
Read: Resistor 1234 of Subassembly 2 of Asrembly 23 lndicates actual manulacturers part number.
