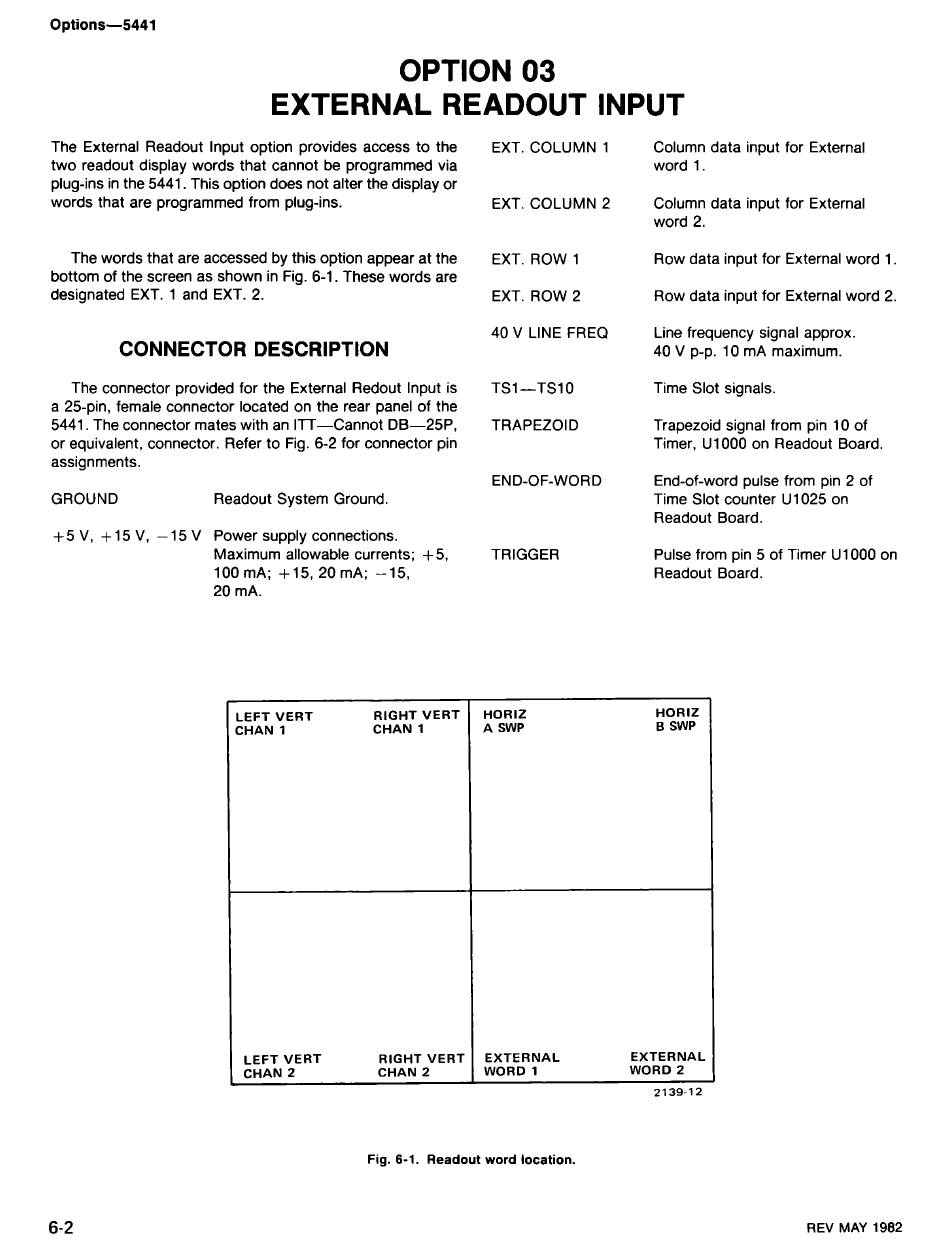

Tektronix 5441 Instruction Manual page 100

OPTION 03
EXTERNALREADOUTINPUT
The External Readout Input option provides access to the EXT. COLUMN 1 Column data input for External
two readout display words that cannot be programmed via word 1.
plug-ins in the 5441. This option does not alter the display or
words that are programmed from plug-ins.
EXT. COLUMN 2 Column data input for External
word 2.
The words that are accessed by this option appear at the
EXT. ROW 1
Row data input for External word 1.
bottom of the screen as shown in Fig. 6-1. These words are
designated EXT. 1 and EXT.
2.
EXT. ROW 2 Row data input for External word 2.
CONNECTOR DESCRIPTION
The connector provided for the External Redout lnput is
a 25-pin, female connector located on the rear panel of the
5441. The connector mates with an In-Cannot DB-25P,
or equivalent, connector. Refer to Fig. 6-2 for connector pin
assignments.
GROUND Readout System Ground.
+
5 V,
+
15 V,
-
15 V Power supply connections.
Maximum allowable currents;
+
5,
100 mA; +15, 20 mA; -15,
20 mA.
40 V LINE FREQ Line frequency signal approx.
40 V p-p. 10 mA maximum.
TS1 -TS10 Time Slot signals.
TRAPEZOID Trapezoid signal from pin 10 of
Timer. U1000 on Readout Board.
END-OF-WORD End-of-word pulse from pin 2 of
Time Slot counter U1025 on
Readout Board.
TRIGGER Pulse from pin 5 of Timer U1000 on
Readout Board.
Fig. 6-1. Readout word location.
L E F T V E R T R I G H T V E R T
CHAN 1 C H A N 1
L E F T V E R T RIGHT V E R T
CHAN 2 CHAN 2
REV MAY 1982
HORlZ H O R l Z
A SWP B SWP
EXTERNAL EXTERNAL
WORD 1 WORD 2
2139-12
