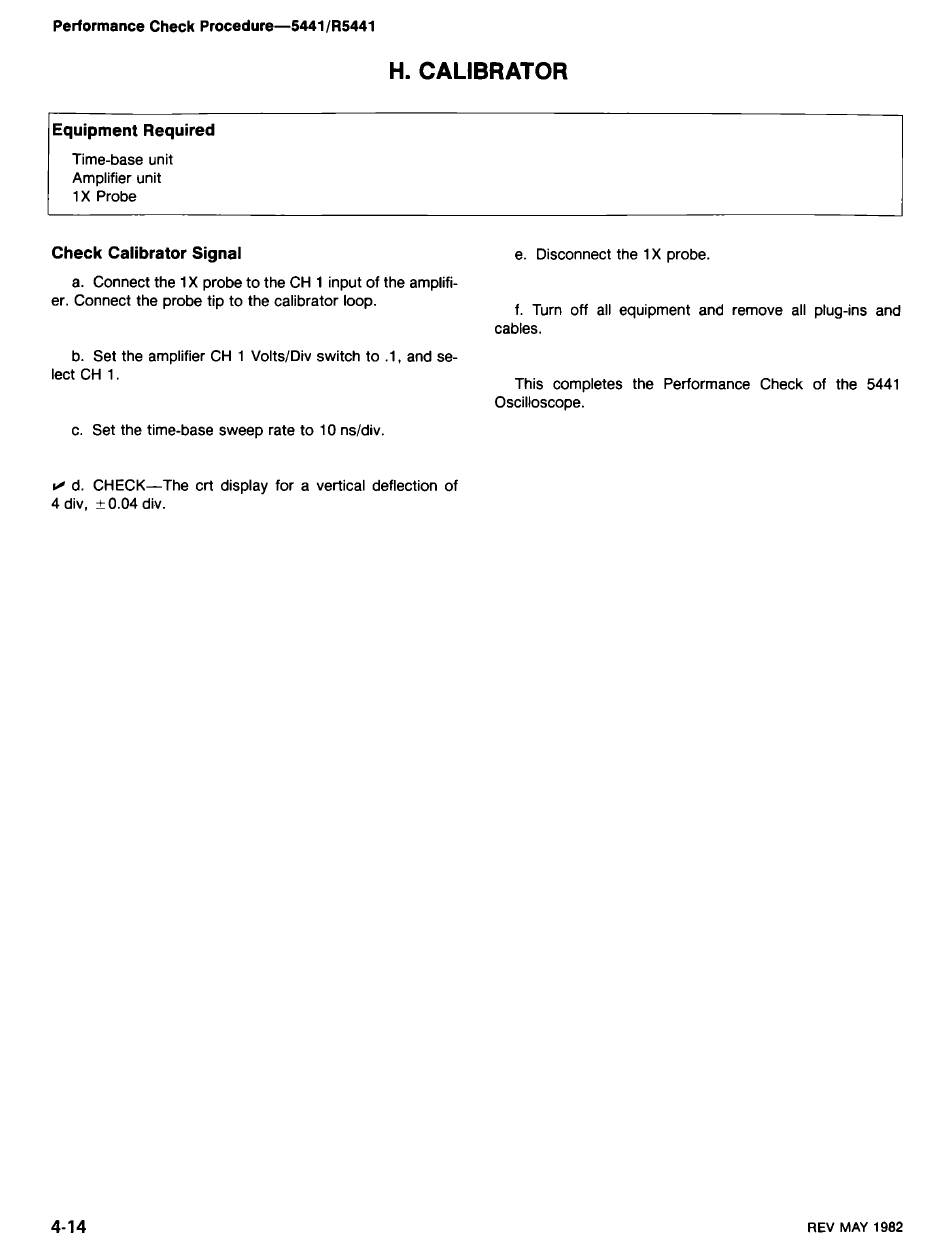

Performance Check Procedure-5441lR5441
H. CALIBRATOR
Equipment Required
Time-base unit
Amplifier unit
1 X Probe
Check Calibrator Signal
e. Disconnect the 1 X probe.
a. Connect the 1 X probe to the CH 1 input of the amplifi-
er. Connect the probe tip to the calibrator loop.
f. Turn off all equipment and remove all plug-ins and
cables.
b. Set the amplifier CH 1 VoltsIDiv switch to .l, and se-
lect CH 1.
This completes the Performance Check of the 5441
Oscilloscope.
c. Set the time-base sweep rate to 10 nsldiv.
v
d. CHECK-The crt display for a vertical deflection of
4 div,
-t
0.04 div.
REV MAY 1982
