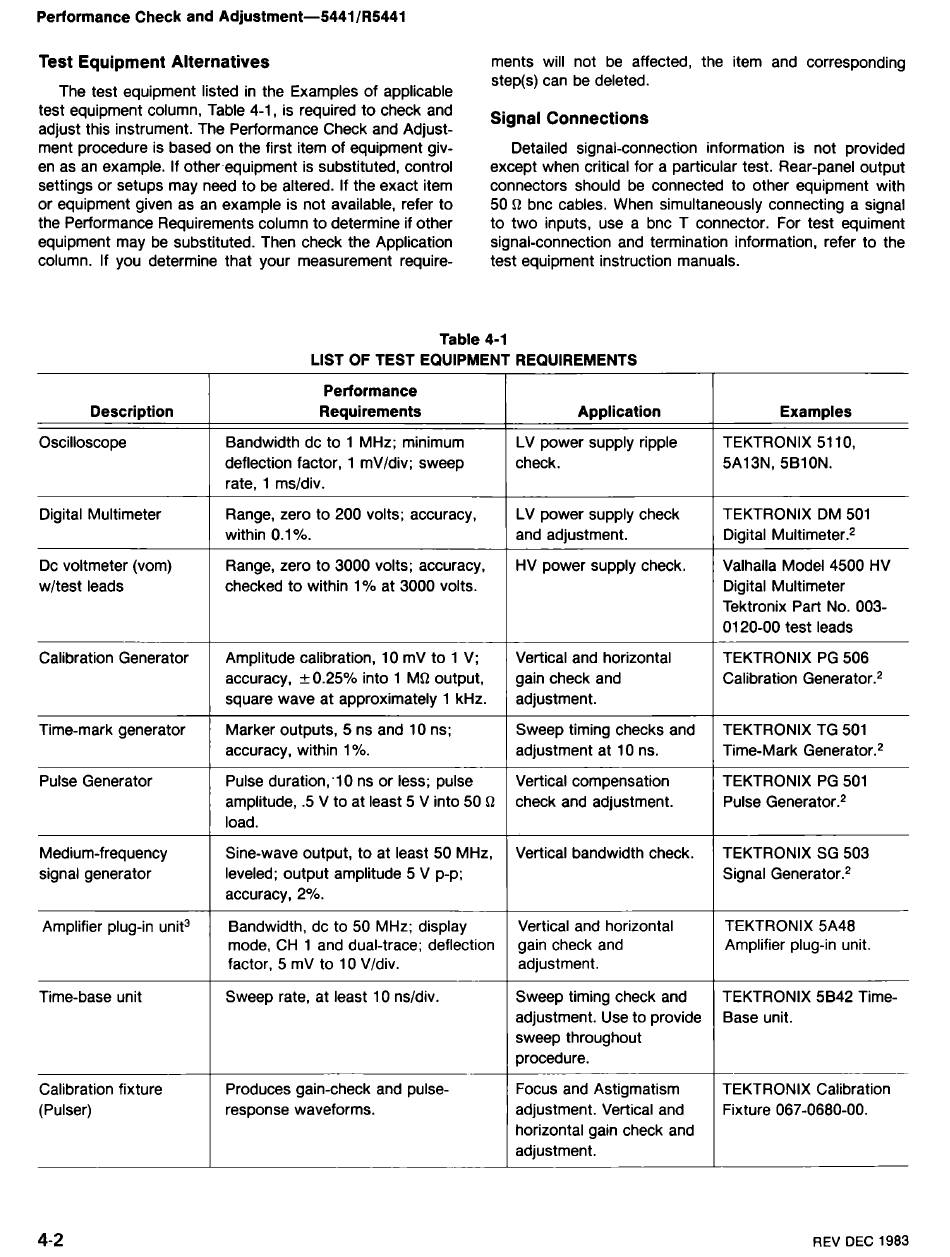

Tektronix 5441 Instruction Manual page 57

Performance Check and Adjustment-5441lR5441
Test Equipment Alternatives
ments will not be affected, the item and corresponding
The test equipment listed in the Examples of applicable
step(s) can be deleted.
test equipment &lumn. Table 4-1, is required to check and
Signal
adjust this instrument. The Performance Check and Adjust-
ment procedure is based on the first item of equipment giv- Detailed signal-connection information is not provided
en as an example. If other equipment is substituted, control except when critical for a particular test. Rear-panel output
settings or setups may need to be altered. If the exact item connectors should be connected to other equipment with
or equipment given as an example is not available, refer to 50 R bnc cables. When simultaneously connecting a signal
the Performance Requirements column to determine if other to two inputs, use a bnc T connector. For test equiment
equipment may be substituted. Then check the Application
signal-connection and termination information, refer to the
column. If you determine that your measurement require- test equipment instruction manuals.
Table 4-1
LIST OF TEST EQUIPMENT REQUIREMENTS
4-2
REV DEC 1983
Description
Oscilloscope
Digital Multimeter
Dc voltmeter (vom)
wltest leads
Calibration Generator
Time-mark generator
Pulse Generator
Medium-frequency
signal generator
Amplifier plug-in unit3
Time-base unit
Calibration fixture
(Pulser)
Examples
TEKTRONIX 51 10,
5A13N, 5B10N.
TEKTRONIX DM 501
Digital M~ltimeter.~
Valhalla Model 4500 HV
Digital Multimeter
Tektronix Part No. 003-
01 20-00 test leads
TEKTRONIX PG 506
Calibration Generator.*
TEKTRONIX TG 501
Time-Mark Generat~r.~
TEKTRONIX PG 501
Pulse Generat~r.~
TEKTRONIX SG 503
Signal Generat~r.~
TEKTRONIX 5A48
Amplifier plug-in unit.
TEKTRONIX 5842 Time-
Base unit.
-
TEKTRONIX Calibration
Fixture 067-0680-00.
Performance
Requirements
Bandwidth dc to 1 MHz; minimum
deflection factor, 1 mvldiv; sweep
rate, 1 msldiv.
Range, zero to 200 volts; accuracy,
within 0.1%.
Range, zero to 3000 volts; accuracy,
checked to within 1% at 3000 volts.
Amplitude calibration, 10 mV to 1 V;
accuracy,
+
0.25O/0 into 1 Mi2 output,
square wave at approximately 1 kHz.
Marker outputs, 5 ns and 10 ns;
accuracy, within 1 %.
Pulse duration, '1 0 ns or less; pulse
amplitude, .5 V to at least 5 V into 50 R
load.
Sine-wave output, to at least 50 MHz,
leveled; output amplitude 5 V p-p;
accuracy, 2%.
Bandwidth, dc to 50 MHz; display
mode, CH 1 and dual-trace; deflection
factor, 5 mV to 10 Vldiv.
-.
Sweep rate, at least 10 nsldiv.
Produces gain-check and pulse-
response waveforms.
Application
LV power supply ripple
check.
LV power supply check
and adjustment.
HV power supply check.
Vertical and horizontal
gain check and
adjustment.
Sweep timing checks and
adjustment at 10 ns.
Vertical compensation
check and adjustment.
Vertical bandwidth check.
Vertical and horizontal
gain check and
adjustment.
Sweep timing check and
adjustment. Use to provide
sweep throughout
procedure.
Focus and Astigmatism
adjustment. Vertical and
horizontal gain check and
adjustment.
