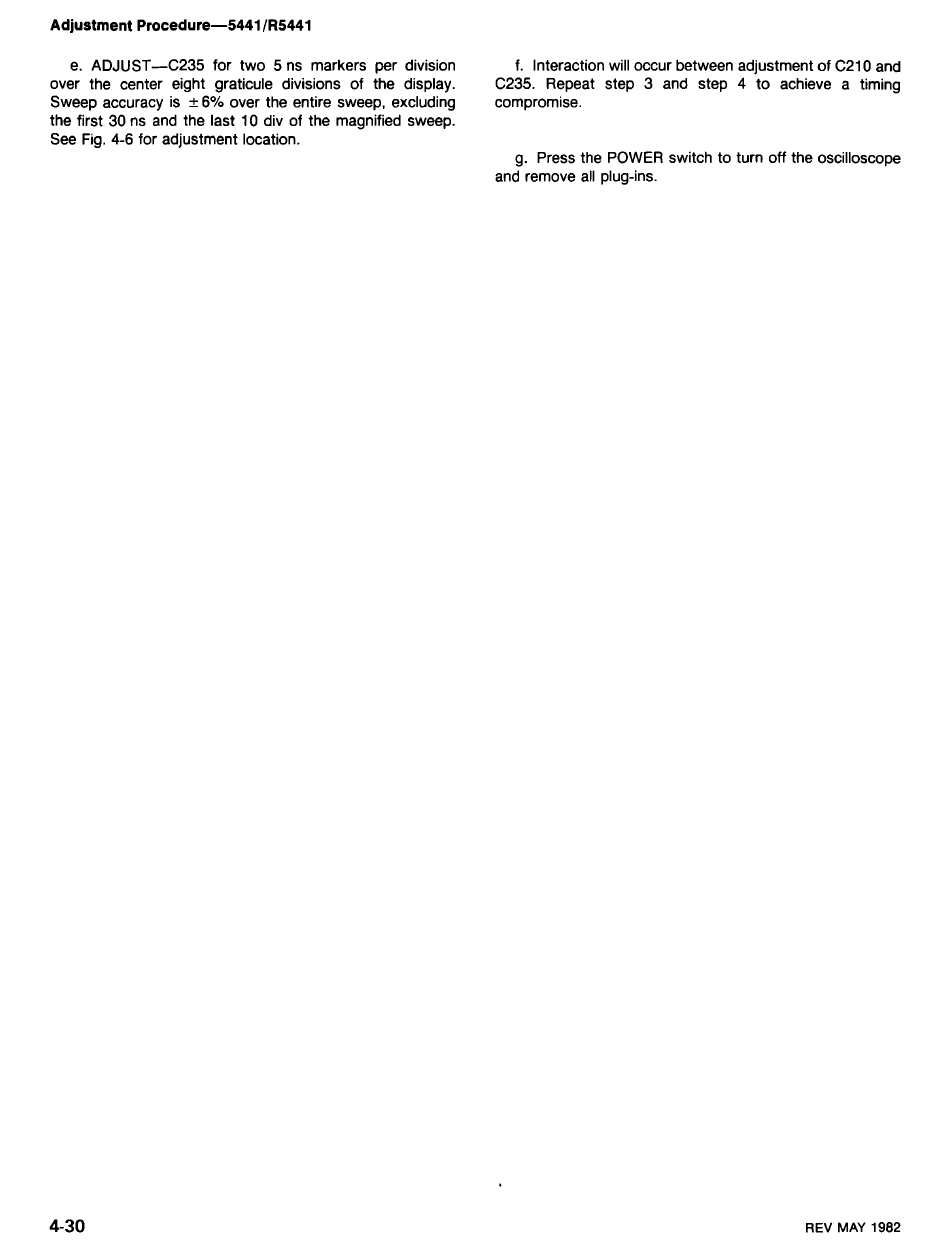

Adjustment Procedure-5441 lR5441
e. ADJUST-C235 for two 5 ns markers per division f. Interaction will occur between adjustment of C210 and
over the center eight graticule divisions of the display. C235. Repeat step 3 and step 4 to achieve a timing
Sweep accuracy is
?
6% over the entire sweep, excluding compromise.
the first 30 ns and the last 10 div of the magnified sweep.
See Fig. 4-6 for adjustment location.
g. Press the POWER switch to turn off the oscilloscope
and remove all plug-ins.
