Operating Information-5441lR5441

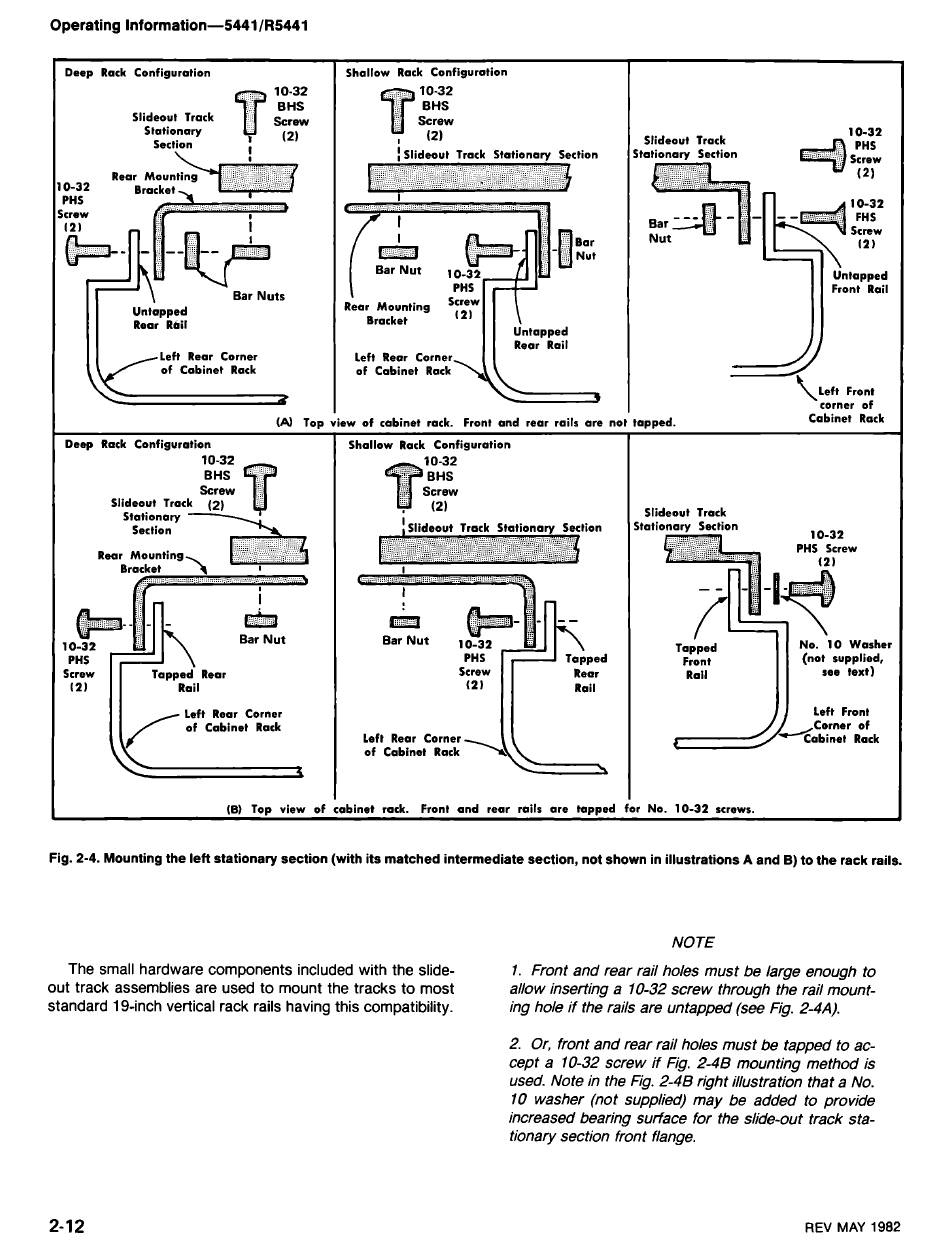

Fig.
2-4.
Mounting the left stationary section (with its matched intermediate section, not shown in illustrations A and B) to the rack rails.
Deep Rack Configuration
Slideout Track
Left Rear Corner
of Cabinet Rack
(A) Top
NOTE
Shallow Rack Configuration
10-32
Slideout Track
10-32
I
Slideout Track Stationary Section Stationary Section
12)
Front Rail
Rear Mounting
Screw
Bracket
Rear Rail
Left Rear Corner
of Cabinet Rack
Left Front
corner of
view of cabinet rack. Front and rear rails are not tapped.
Cabinet Rack
The small hardware components included with the slide-
out track assemblies are used to mount the tracks to most
standard 19-inch vertical rack rails having this compatibility.
Deep Rack Configuration Shallow Rack Configuration
10-32
Slideout Track (2)
Stationary
,
(2) Slideout Track
Section
Slideout Track Stationary Section
Stationary Section
10-32
Rear Mounting
PHs Screw
Bar Nut
No. 10 Washer
(not supplied,
Screw Screw see text)
12) ( 2 ) Rail
Left Rear Corner Left Front
of Cabinet Rack
Left Rear Corner
(6) Top view of cabinet rack. Front and rear rails are tapped for No. 10-32 screws.
*
1. Front and rear rail holes must be large enough to
allow inserting a 10-32 screw through the rail mount-
ing hole if the rails are untapped (see Fig. 2-4A).
2. Or, front and rear rail holes must be tapped to ac-
cept a 10-32 screw if Fig. 2-48 mounting method is
used. Note in the Fig. 2-48 right illustration that a No.
10 washer (not supplied) may be added to provide
increased bearing surface for the slide-out track sta-
tionary section front flange.
REV MAY 1982
