nFUSE ECE Lightbar
®
Mode Select: The nFUSE Exterior Lightbar is equipped with 8 selectable pattern configuration modes. Default wire configuration has
defined settings for 6 of the 8 modes. Default is mode 1 when no other mode select inputs are active. Mode 2 is in use when the input is
activated. This feature allows up to 8 completely different sets of patterns to be programmed into the Light-bar's non-volatile memory.
Once programming configuration is complete, the Mode can be changed "on-the-fly" by an activation switch which applies voltage to the
Mode input wire(s).
Cruise Mode: Allows the user to program any light group(s) to "Glow" when this feature is activated. The LED intensity is selectable
between 1 and 10% duty cycle. For dual / tri color bars, the color for each light group is selectable.
Takedown Mode: Allows the user to program any Light Head Group(s) to turn on steady when this feature is activated to provide steady
ON takedown lighting.
Directional Arrow Built-in: The directional controller is built-in with multiple arrow patterns for each of the 3 modes (left arrow, right
arrow, and center out arrow) and the color is selectable for dual / tri color bars
Steady On Mode: Accessible with PC App only and allows the user to program any light module to turn on steady at 100% duty cycle.
Stop Lamp (Stop) / Rear Position Lamp (Tail) / Rear Directional Indicator (Turn): Allows the user to program the Stop lamp, Rear
position lamp, and Rear directional indicator. Only light heads configured as STT when ordered should be programmed to these functions
to ensure ECE R148 compliance. Stop lamp and Rear position lamp may use the same light head.
Low Power Mode: Operates lighting at reduced intensity. Selectable between 20 and 100% duty cycle. To be ECE R65 Category Tx2
compliant, low power must be set to 45%.
Scene Lighting Mode: Allows the user to program any Light Head Group(s) to turn on steady when this feature is activated to provide
additional scene lighting. The activation of this input also activates the Takedown function
Speed Sense Input: The breakout box has a speed sense input that is capable of sensing vehicle speed when connected to the Vehicle
Speed Sense (VSS) trigger wire which is supplied in the police upfitter wire harness for some vehicles. This feature is configured using the
PC configuration software utility.
Auto Dimming: Operates lightbar at reduced intensity when ambient light is low when configured to do so.
Matrix Input: Matrix inputs are virtual inputs which can be triggered based on combinations of up to four system signals, comprised of
physical wires, siren inputs, or other system signals. This feature also allows the installer to invert the state of inputs, latch momentary
inputs and adjust trigger timing through on and off delay timer settings. This feature is configured using the PC configuration software
utility.
8
800-338-7337 | soundoffsignal.com

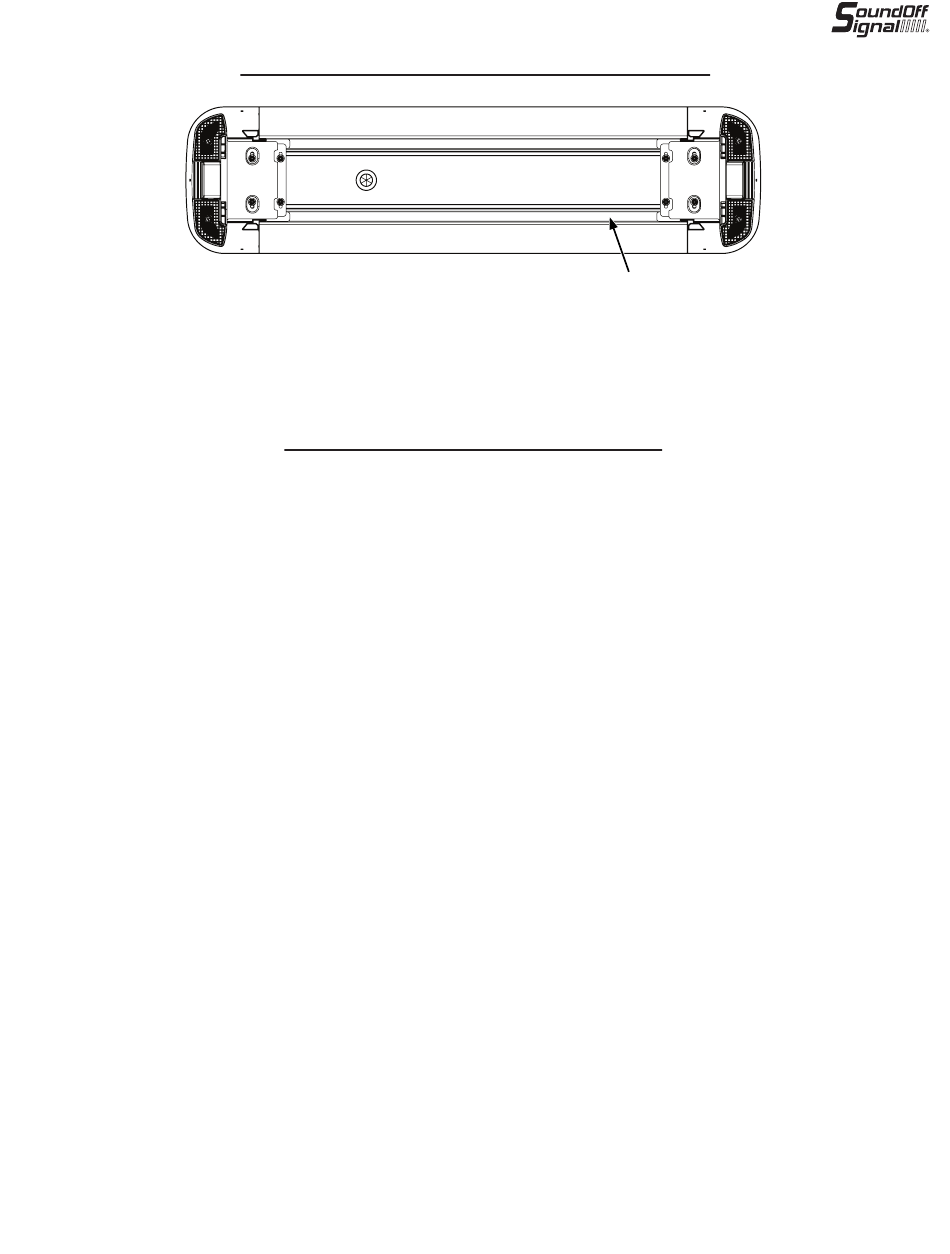

GASKET MOUNTING INSTRUCTIONS
GASKET MOUNTING INSTRUCTIONS
Install the Grey gasket in the front slot of the lightbar as shown above.
FUNCTION DESCRIPTIONS
REAR
GREY GASKET IN CHANNEL
FRONT
(CUT LENGTH TO FIT)
nFUSE ECE Lightbar English
®
0000KP 0325 REV A
