Quick Links

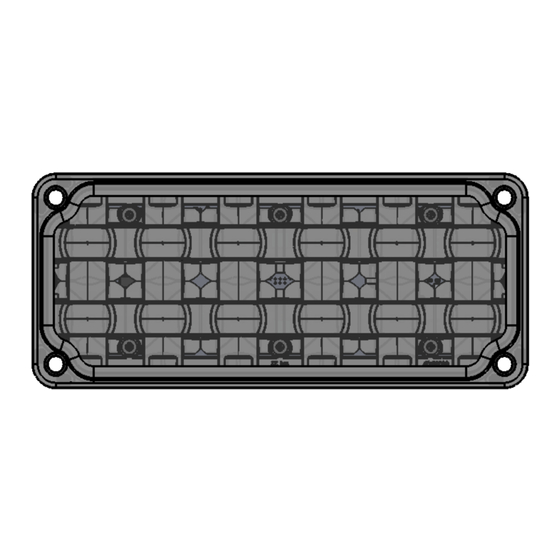

7x3 Dual Color Shown
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
P SERIES WARNING LIGHT
EPSSC0J(xx)-(x) -- 7X3 Screw Mount & Stud Mount
EPSSBOJ(xx)-(x) -- 6X4 Screw Mount & Stud Mount
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
6x4 Dual Color Shown
DIMENSIONS . . . . . . . . . . . . . . . . . . 2
WARNING LIGHT OPTIONS . . . . . . . 2
TECHNICAL SPECIFICATIONS . . . . . . 3
WIRING INFORMATION . . . . . . . . 4-7
STUD MOUNT INSTALLATION . . . . . 8
SCREW MOUNT INSTALLATION . . . . 9
RETENTION CLIP INSTRUCTIONS . . . 10
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.

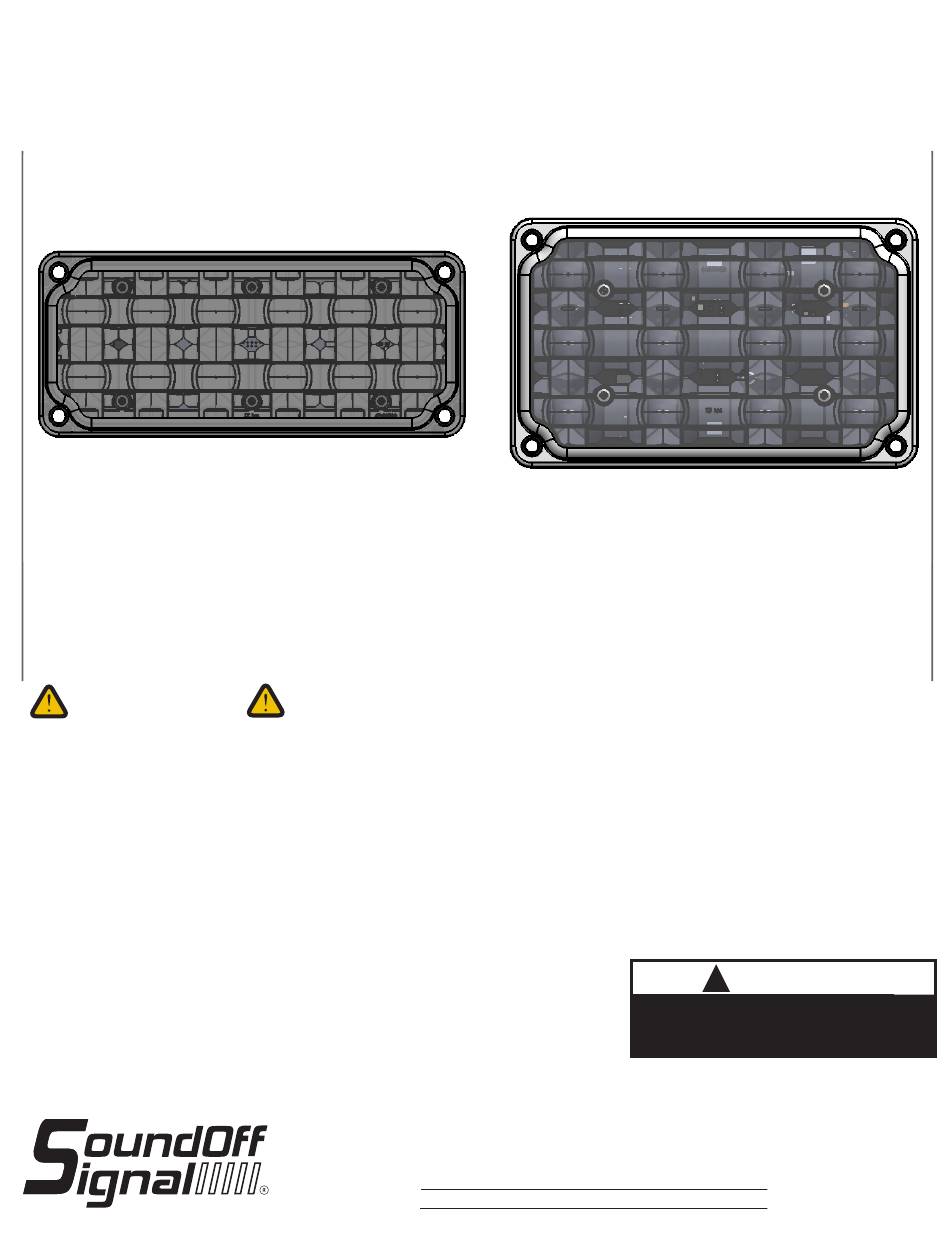

7X3 / 6X4 P SERIES_WARNING
00KPJL 0822 REV B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Soundoff Signal P Series
Summary of Contents for Soundoff Signal P Series
- Page 1 Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
- Page 2 • 6x4 - EPSSB0J XX-X** • SAEJ595 • NFPA 1901-2009 • California Title 13 • KKK-A-1822 (July 2021) **See SoundOff Signal configurator or sales representative for specific color, lens, and mounting options. 1.800.338.7337 / www.soundoffsignal.com 7X3 / 6X4 P SERIES_WARNING 00KPJL 0822 REV B...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS: 7X3 & 6X4 P SERIES WARNING LIGHT TECHNICAL SPECIFICATIONS Input Voltage: 9-32Vdc WARNING LIGHT CURRENT CONSUMPTION (Amps) 12.8Vdc 25.6Vdc Peak Average Peak Average 1.55 0.78 0.78 0.39 Amber, Blue, 1.90 0.95 0.95 0.48 Green, or White AFTER POWER IS ON, touching the WHITE wire to the ground will allow you to change various settings on the module. - Page 4 WIRING AND TABLE INFORMATION: OVER-VOLTAGE PROTECTION WIRE HOOK-UP TABLE When an over-voltage condition is detected, the module will flash an overvolt- age warning pattern of 50mS ON/950mS OFF to alert of the overvoltage condi- WIRE COLOR: FUNCTION: tion and protect the electronics from damage due to heat/voltage. Power (Primary) THERMAL COMPENSATION PROTECTION BLACK...
- Page 5 WIRING AND TABLE INFORMATION (CONT.): FUNCTION TABLES EXAMPLE The functional operation of the LED module can be changed while If the light is using Function Table 2 with the Orange wire to applying the +V to the Red wire with the Black wire connected power, which steady burns color 2, and you then apply the to ground.
- Page 6 For Cruise mode or Low Power control of the LED module, the sig- nal to the control wires must be 100 +/- 2Hz using the duty cycle inputs listed below to produce the light output. 6x4 & 7X3 P SERIES LED LIGHT REMOTE MODE FUNCTIONALITY SINGLE COLOR DUAL COLOR...
- Page 7 WIRING AND TABLE INFORMATION (CONT.): COLOR SWAP BACKUP PATTERN This function is only valid for dual and tri-color warning light mod- This function is only valid when the LED module is in a flashing ules and can only be changed when the light module is in a flash- mode (disabled in cruise or steady ON functions).
- Page 8 STUD MOUNT INSTALLATION: 1. Drill (2) 1/4" holes to mount light and 3/4" wire hole (see Fig. 7). FIG. 6 The drill template shown is compatible with both the the 6x4 and WIRE HOLE WIRE HARNESS 7x3 stud mount light. GASKET 2.
- Page 9 SCREW MOUNT INSTALLATION: Drill (4) 5/16" holes to mount light. Drill 3/4" wire hole. See Fig. FIG. 8 PLACE LIGHT INTO BEZEL, P 9 (7x3) OR Fig. 10 (6x4). AND GASKET AGAINST MO If a bezel is being used, place bezel over light. GASKET WIRE Place the gasket on the back of the light and bezel (if used).
- Page 10 RETENTION CLIP INSTRUCTIONS: NOTE: In the event the harness needs to be disengaged from the light, these instructions can be used to reattach and apply the retention clip. 1. Plug harness into light housing, aligning tab to window, as shown in Fig 13. 2.
