Soundoff Signal nFUSE Installation Instructions Manual page 7

nFUSE ECE Lightbar
®
HEADACHE RACK MOUNTING (PNFLBK02)
1. Place the T-Slot bolts in the extrusion slots on the underside
of the lightbar.
2. Insert the ½" hex head bolt into the center hole of the
bracket.
3. Place the bracket on the T-Slot bolts and loosely secure with
flat washers and nylon locking nuts.
4. Measure and drill appropriate sized holes on the desired
mounting surface, spaced evenly for securing the lightbar.
5. Place the plastic spacer over each mounting hole.
6. Place lightbar and bracket assembly into the holes and
install the flat washer, lock washer and hex nut on the ½"hex
bolt, tighten to compress lock washer. (Torque may vary
depending on the mounting surface.)
7. Complete the installation by tightening the ¼-20 lock nuts to
40-60 in-lbs, DO NOT OVER TIGHTEN.
8. Follow the appropriate lightbar Owner's Manual for additional
instructions and installation.

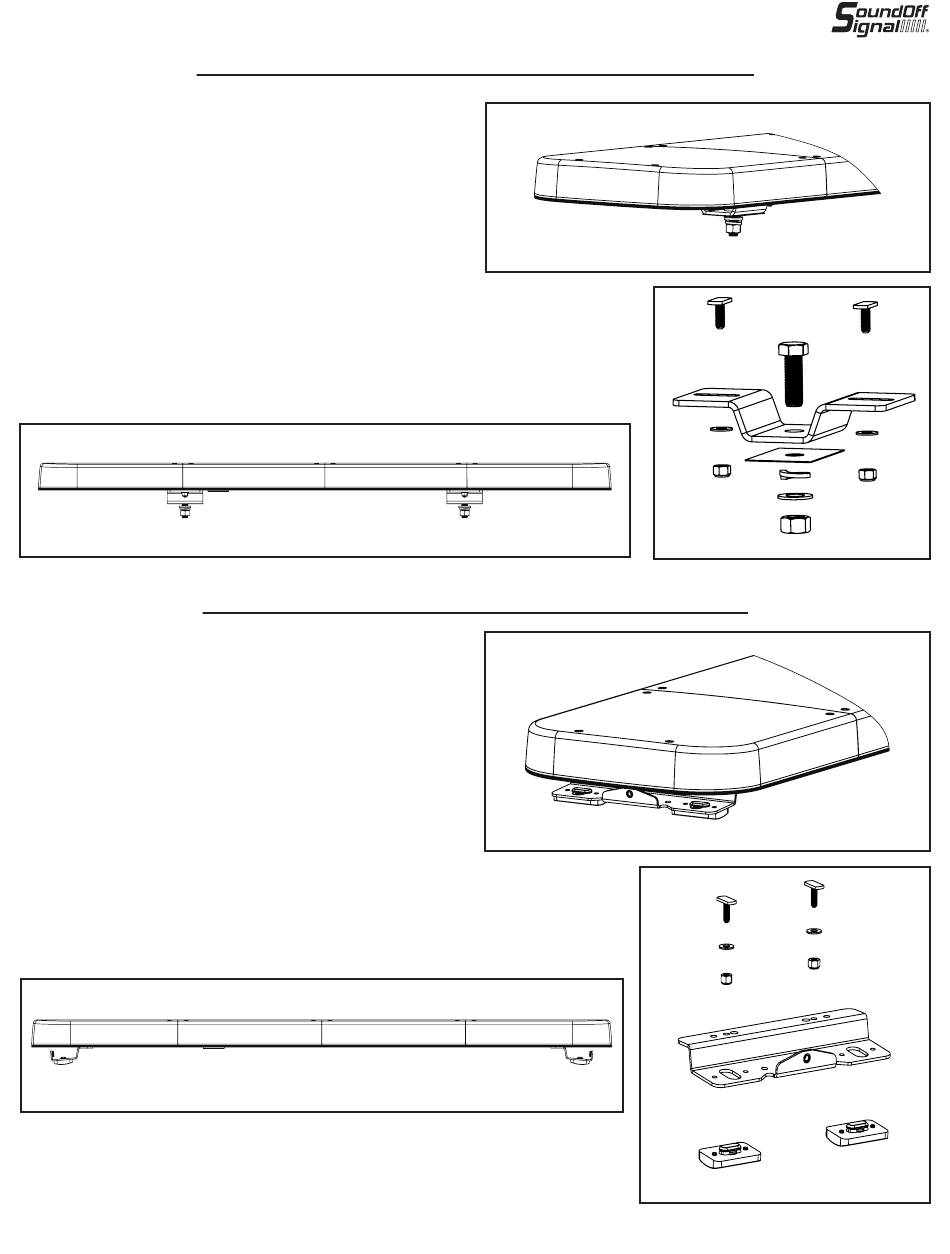

Figure 3.
1. Place the T-Slot bolts in the extrusion slots on the underside
of the lightbar.
2. Insert the ½" hex head bolt into the center hole of the
bracket.
3. Place the bracket on the T-Slot bolts and loosely secure with
flat washers and nylon locking nuts.
4. Measure and drill appropriate sized holes on the desired
mounting surface, spaced evenly for securing the lightbar.
5. Place the plastic spacer over each mounting hole.
6. Place lightbar and bracket assembly into the holes and
install the flat washer, lock washer and hex nut on the ½"hex
bolt, tighten to compress lock washer. (Torque may vary
depending on the mounting surface.)
7. Complete the installation by tightening the ¼-20 lock nuts to
40-60 in-lbs, DO NOT OVER TIGHTEN.
8. Follow the appropriate lightbar Owner's Manual for additional
instructions and installation.
Figure 3.
7
800-338-7337 | soundoffsignal.com
PERMANENT MOUNTING (PNFLBK10)
Figure 1.
Figure 2.
Figure 1.
Figure 2.
PNFLBK02
PNFLBK10
nFUSE ECE Lightbar English
®
0000KP 0325 REV A
