Soundoff Signal P Series Quick Start Manual

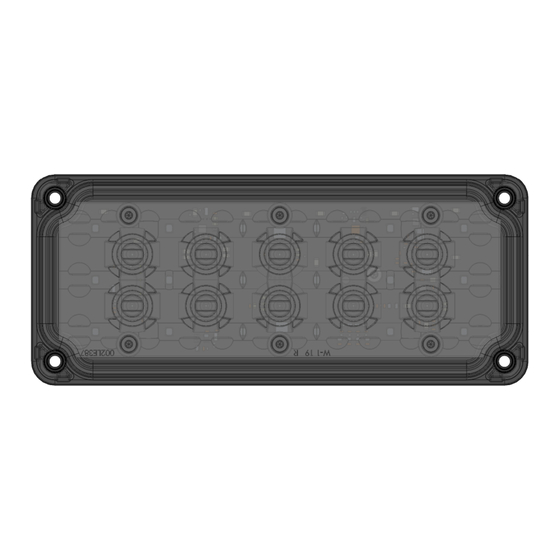

7x3 Backup Light Shown
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
P SERIES BACKUP LIGHT
EPSSCOJ(xx)-(x) -- 7X3 Screw Mount & Stud Mount
EPSSBOJX(x)-(x) -- 6X4 Screw Mount & Stud Mount
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
6x4 Backup Light Shown
DIMENSIONS . . . . . . . . . . . . . . . . . . 2
WARNING LIGHT OPTIONS . . . . . . . 2
TECHNICAL SPECIFICATIONS . . . . . . 3
WIRING INFORMATION . . . . . . . . 4-5
STUD MOUNT INSTALLATION . . . . . 6
SCREW MOUNT INSTALLATION . . . . 7
RETENTION CLIP INSTRUCTIONS . . . 8
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
7X3 / 6X4 P SERIES_BACKUP
00KPJL 0822 REV B
