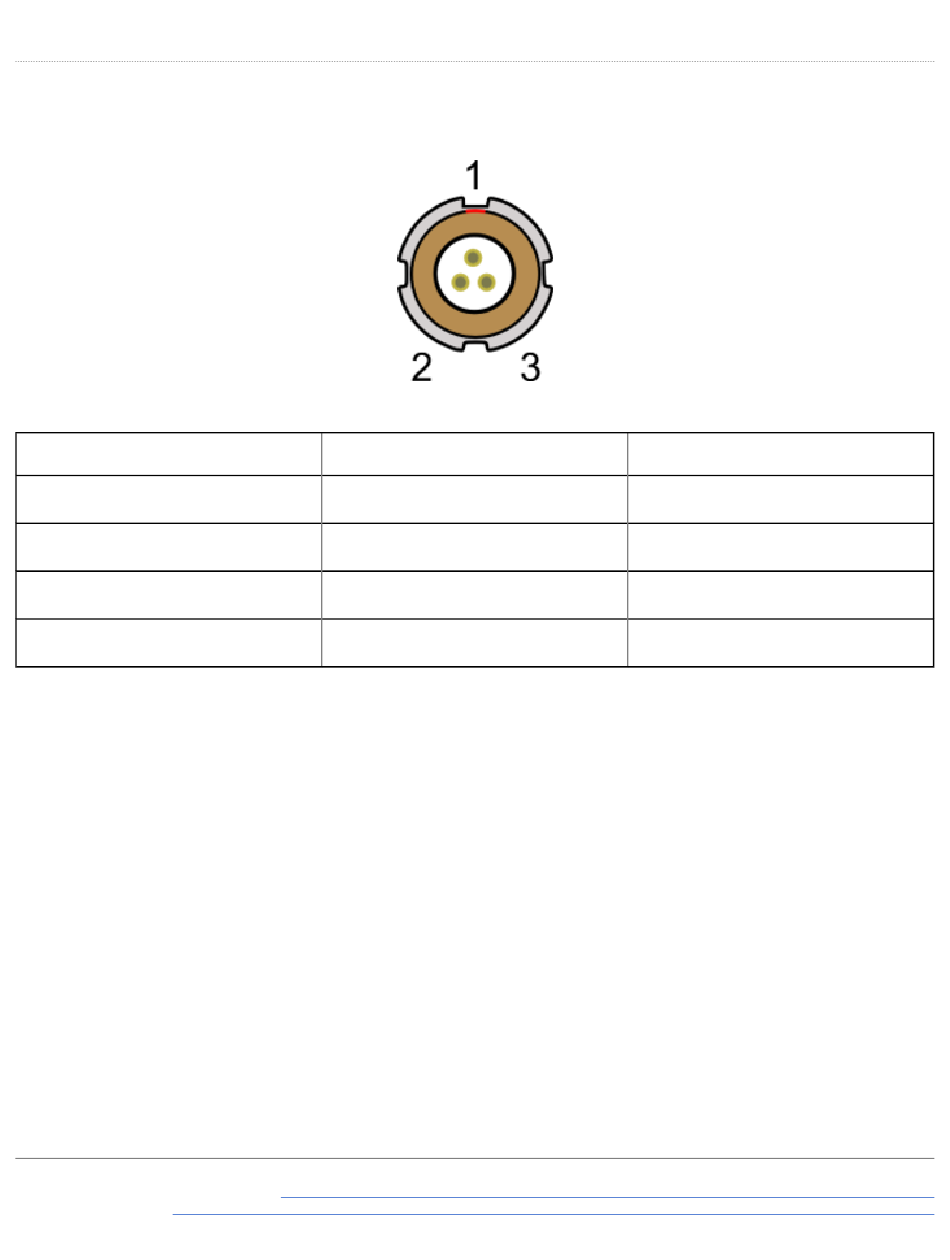

Connector 2 / 3 - OUT 1 / OUT 2 (Lemo 3 PIN)
(One Analogue and One Digital Output Each)
PIN
1
2
3
Chassis
User_Guide_VBOX_II_(VB2SX5%2C_VB2SX10%2C_VB20SL3)/15_-_VBOX_II_Technical_Properties/VBOX_II_PIN_OUTS
I/O
O
O
I
I
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_II/Discontinued_VBOX_II_versions/
Function
Analogue Out 1 / 2
Digital Out 1 / 2
Ground
Ground
