Note: An auto detect message may appear if the baud rate has been changed from the default value – select 'Yes' to
allow the different baud rates to be scanned.

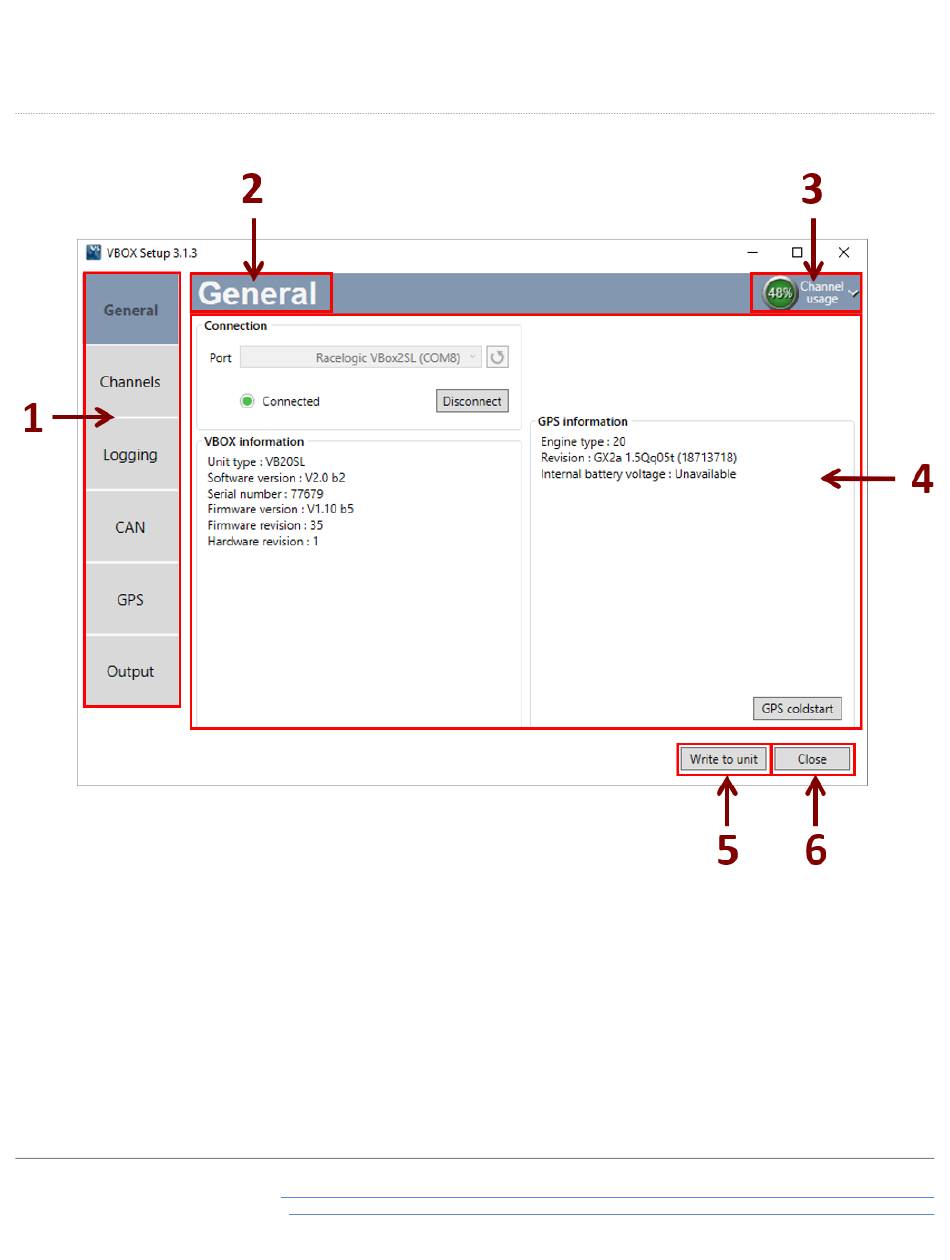

Software Overview
1. Menu - The side bar allows selection between the different settings menus. Click the buttons to change.
2. Current menu - Displays the currently selected menu.
3. Bus usage - View serial and CAN channel usage.
4. Settings area - This area contains all the settings options dependent on which menu is selected.
5. Write to unit - After making changes to setup, the write to unit button should be selected to ensure the settings
have been uploaded.
6. Close - Closes the software, if changes have not been saved to the unit, you will be prompted to save the settings.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_II/Discontinued_VBOX_II_versions/
User_Guide_VBOX_II_(VB2SX5%2C_VB2SX10%2C_VB20SL3)/04_-_VBOX_II_VBOX_Setup_Overview
20
