Operation
5. See 3-35. Switch controller power to OFF
Figure
(O).

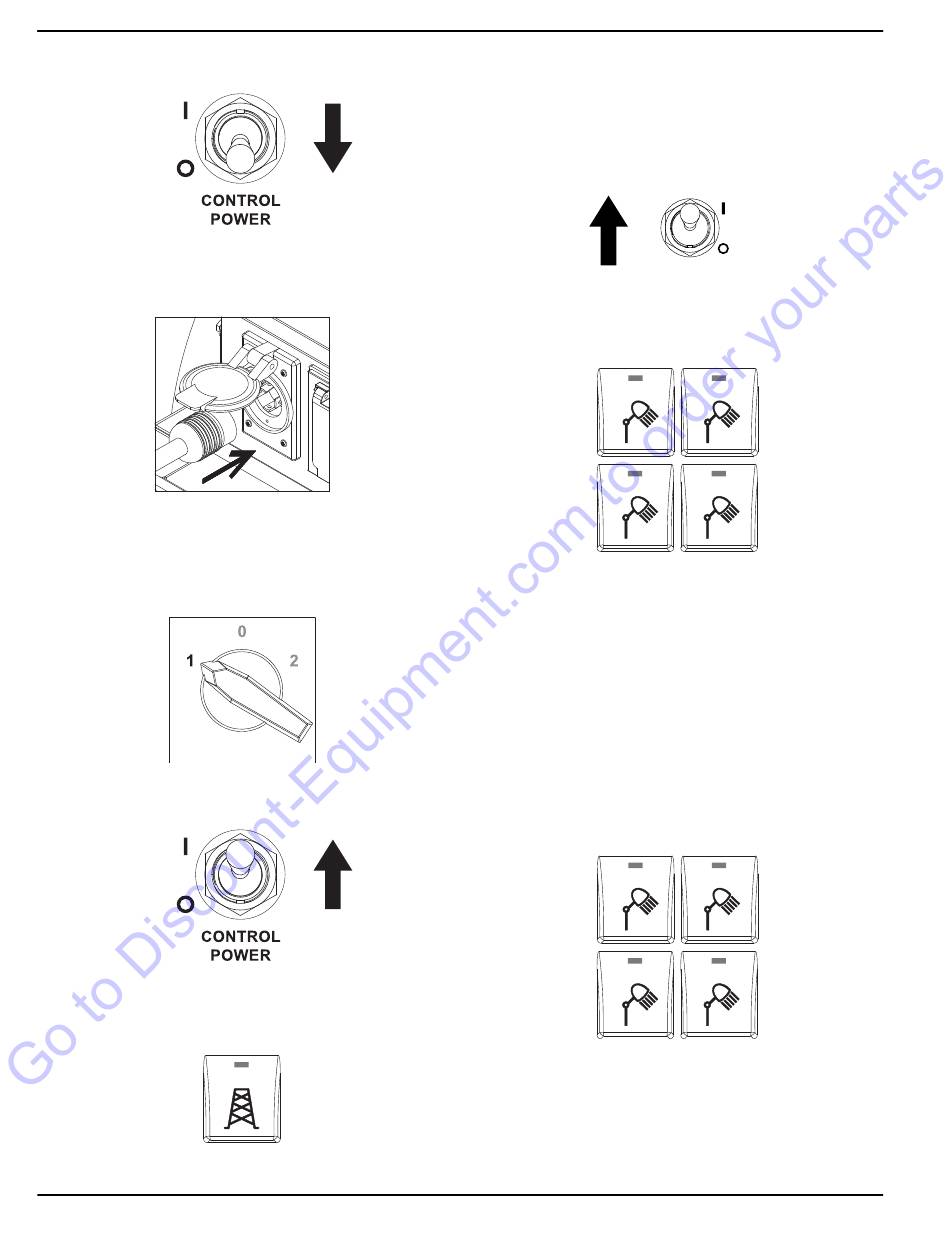

Figure 3-35. Controller Power OFF (O)
6. See
Figure 3-36. Install 120 V, NEMA 5-15 cord to
unit power inlet port.
Figure 3-36. Utility Cord Installation to Unit
7. Install 120 V, NEMA 5-15 cord to utility power
source.
8. See 3-37. Switch the flex switch (if
Figure
equipped) to position 1.
Figure 3-37. Flex Switch—Position 1
9. See
Figure 3-38. Switch controller power to ON (I).
Figure 3-38. Controller Power ON
10. See
Figure 3-39. On controller, activate utility
mode by pushing the Utility Mode button.
Figure 3-39. Utility Mode Button
32
NOTE: When utility mode is activated, the LED (A)
switches on.
11. See
Figure
ON (I).
010596
Figure 3-40. Main AC Circuit Breaker ON (I)
12. See
Figure
the light ON-OFF buttons.
Light 1
010597
010597
Light 4
Figure 3-41. Light Fixture ON-OFF Buttons
13. Close unit hood.
Stopping Utility Mode (If
Equipped)—Power Zone
Controls
1. Open unit hood.
2. Remove
010598
Removing
Equipped).
3. See Figure
pressing the light ON-OFF buttons.
Light 1
010588
Light 4
Figure 3-42. Light Fixture ON-OFF Buttons
010581
3-40. Switch main circuit breaker to
MAIN AC
CIRCUIT
BREAKER
3-41. Switch lights ON (I) by pressing
Light 2
Light 3
all loads from receptacles.
Loads from Receptacles
3-42. Switch lights OFF (O) by
Light 2
Light 3
Owner's Manual for Mobile Light Tower
010589
010579
See
(If
010579
