Control Panel
Standard Analog
A
B
F
E

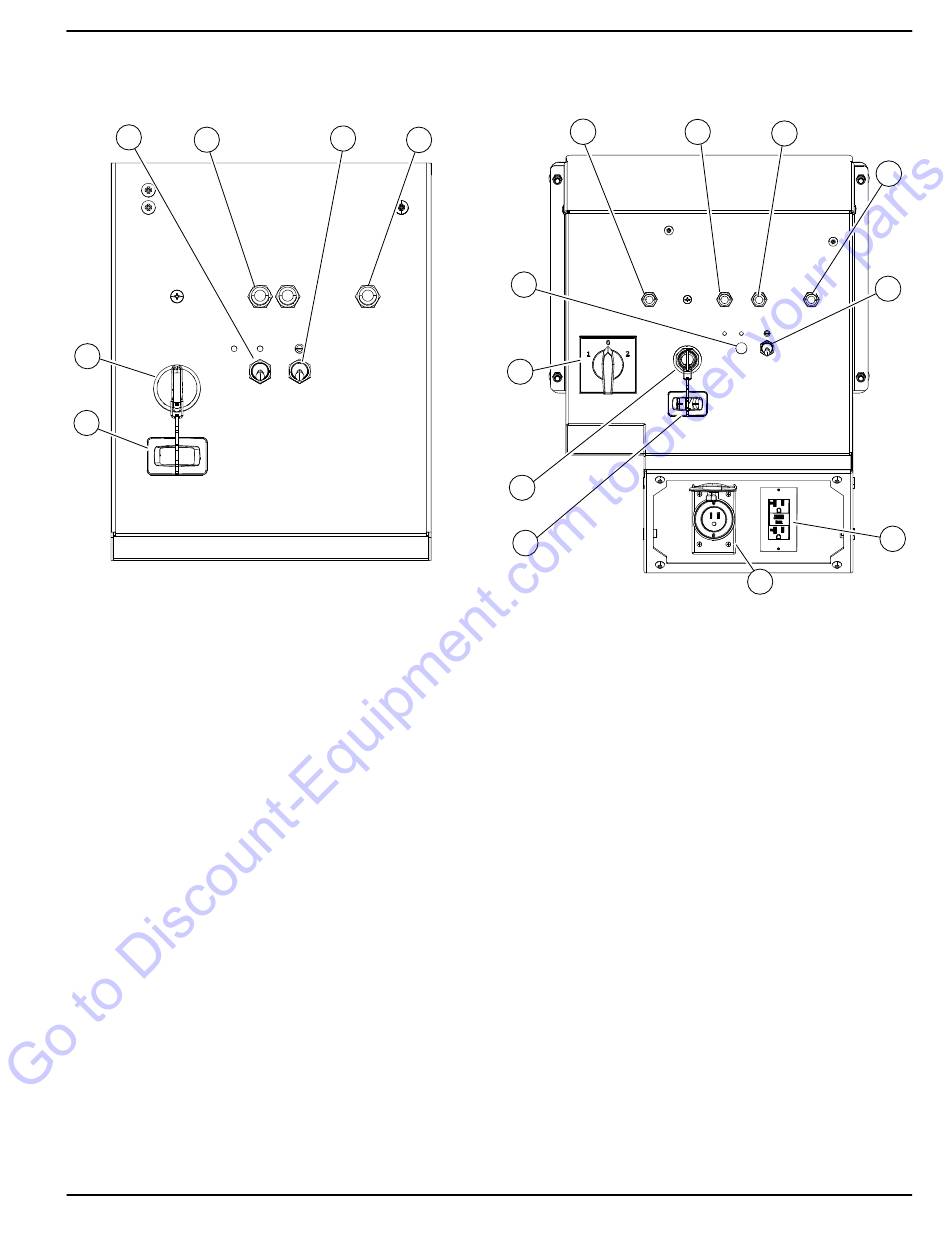

Figure 2-11. Standard Analog Controls
A Main circuit breaker
B DC circuit breaker (2 locations)
C Light fixtures ON-OFF switch
One switch controls power to all light fixtures
D AC circuit breaker
Controls export power (if equipped)
E Engine hour meter
Displays how many hours engine has run
F Engine ignition switch
Owner's Manual for Mobile Light Tower
Analog with Import Power (If Equipped)
C
D
K
015216
Figure 2-12. Analog Controls With Optional Import
A
B
C
D
E
F
G
H
J
K
L
A B
L
J
H
Power
GFCI breaker (if equipped)
DC circuit breaker
DC circuit breaker
AC circuit breaker
Light switch
Outlet receptacle
Inlet receptacle
Engine hour meter
Displays how many hours engine has run
Engine ignition switch
Engine/utility power selector switch (flex switch)
Main breaker
