General Information

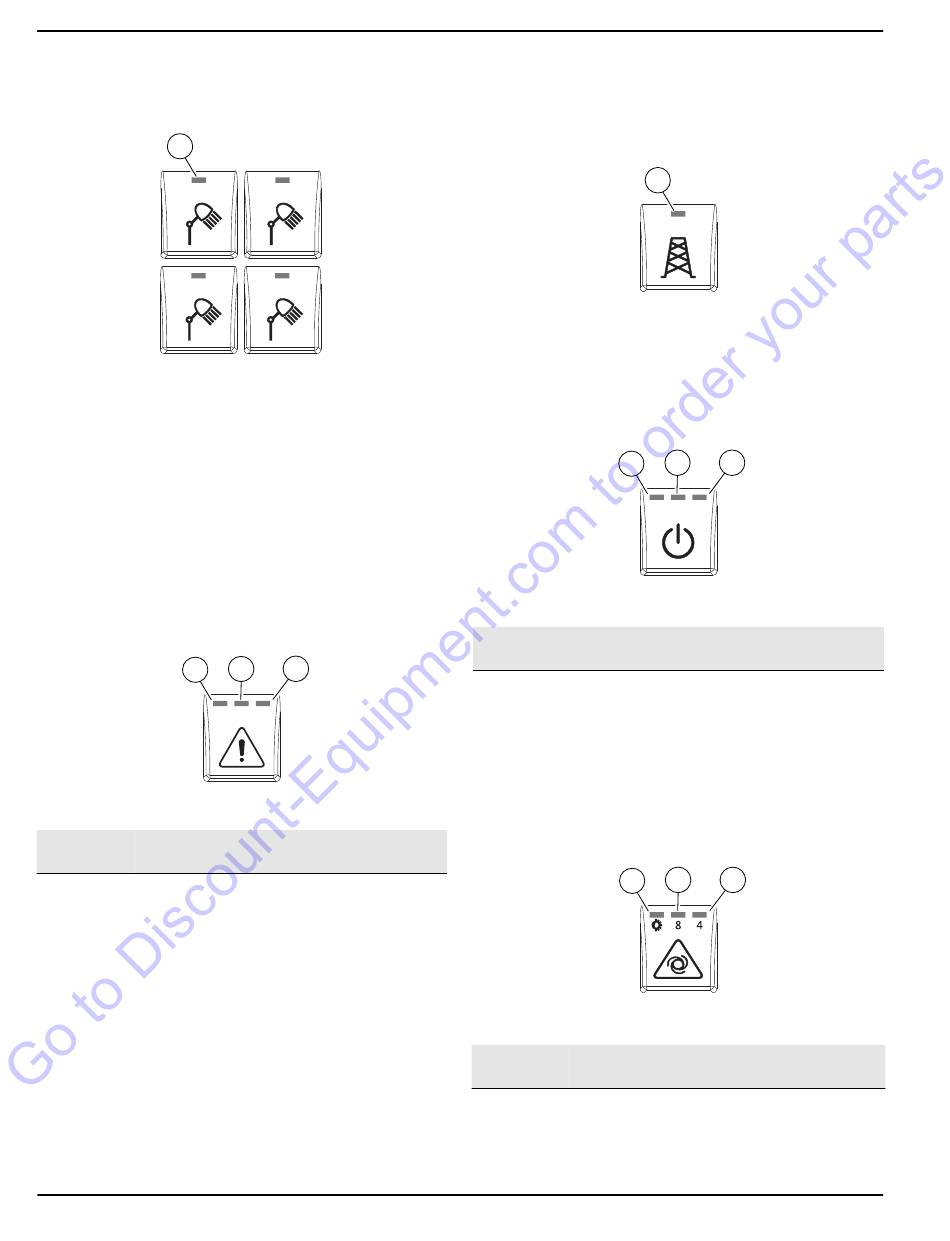

(A) Light Fixture ON-OFF Button (4 locations)
See 2-16. These buttons control power to the light
Figure
fixtures. One button controls one light fixture, as
illustrated.
A
Light 1
Light 4
Figure 2-16. Light Fixture ON-OFF Buttons
•
Each button contains an LED (A). If an LED is
illuminated, the corresponding light fixture is
powered.
•
Each button is single-push: Press once to switch
the corresponding light ON or OFF.
NOTE: If any light does not function as described, see
Troubleshooting.
(B) Fault Indicator Button
See Figure 2-17. This button resets faults indicated by
the LEDs (A, B, C). To reset a fault, press and hold for 3
seconds.
A
Figure 2-17. Fault Indicator Button
Illuminated Indicates Fault
LED
A Engine fault
B Low battery
C Fail to crank (AUTO mode only)
A and C Engine overspeed
or
engine underspeed
B and C Loss of speed signal
See Troubleshooting for more information.
20
Light 2
Light 3
010579
B C
010580
(C) UTILITY Mode Button
NOTE: This button only functions in units equipped with
UTILITY mode.
See Figure 2-18. This button controls UTILITY mode.
Press the button to switch UTILITY mode ON or OFF.
A
Figure 2-18. UTILITY Mode button
When the LED (A) is illuminated, UTILITY mode is ON.
(D) Engine START-STOP Button
See Figure 2-19. This button controls start-up and shut-
down. Press once button to start or stop the engine and
generator (genset).
A
Figure 2-19. Engine START-STOP Button
Illuminated Indicates
LED
A Unit is starting or running
B Glow plugs active
C Engine cranking
(E) AUTO mode button
See Figure 2-19. This button controls whether the unit
starts/stops automatically or is operator-controlled. When
AUTO mode is active, the unit starts and stops on an
operator-defined schedule, as shown below.
A
Figure 2-20. AUTO Mode Button
Illuminated Indicates
LED
A Automatic dusk to dawn
B Schedule 1: Dusk + 8 hr
C Schedule 2: Dusk + 4 hr
Owner's Manual for Mobile Light Tower
010581
B C
010582
B C
010583
