General Information
Trailer Tongue Storage and Tow
Positions
The trailer tongue is designed to fold upright for shipping
and storage.
IMPORTANT NOTE: Do not attempt to tow the unit
with trailer tongue in the storage position.
Place Trailer Tongue in Tow Position
1. Verify unit is on a level surface and wheels are
blocked.
NOTE: See 2-3. Unit ships from factory with jack
Figure
in the storage location (A).
A
B

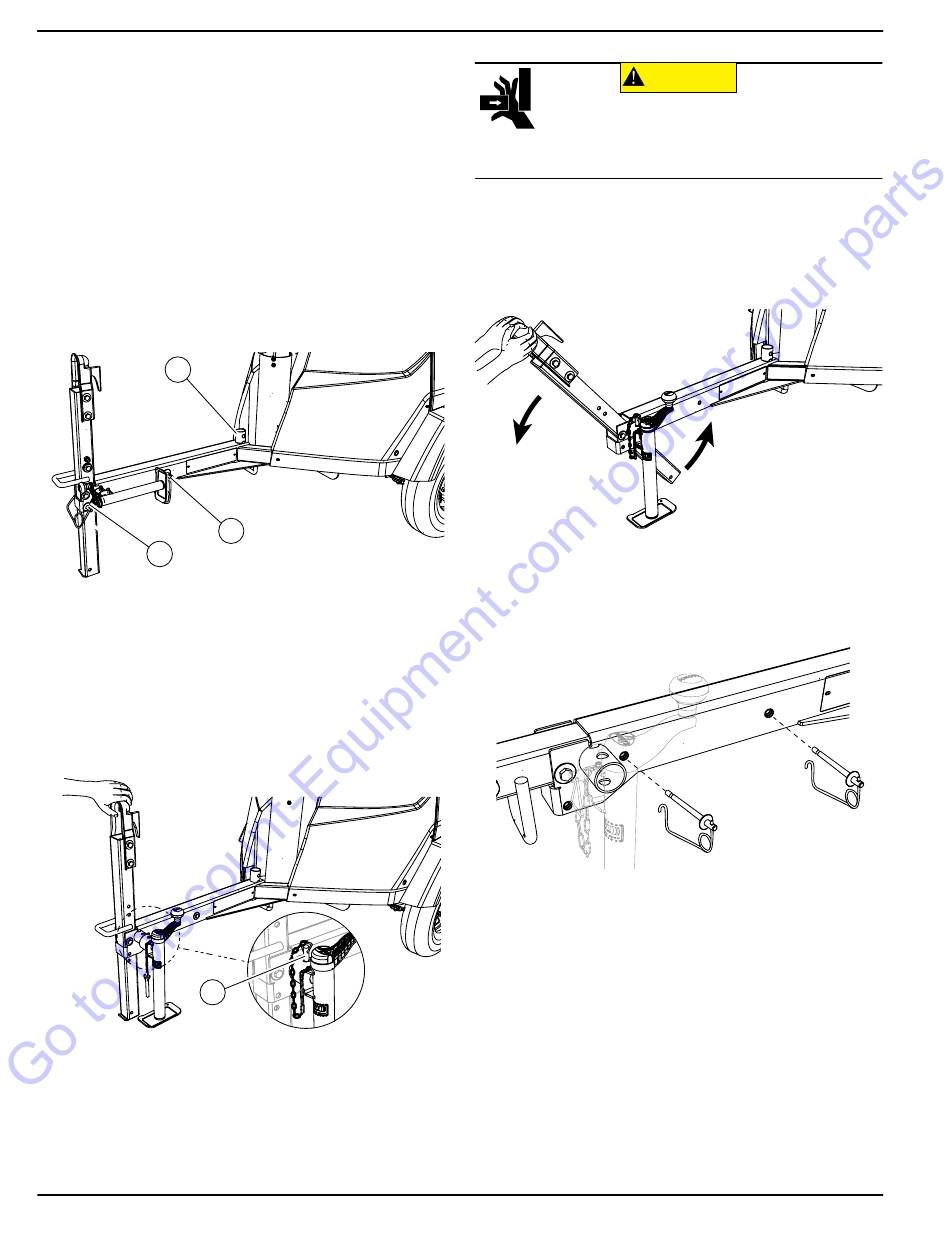

Figure 2-3. Jack and Pin Locations
2. Remove clevis securing jack parallel to ground.
3. Remove jack from tongue weldment. Hold jack
vertically and extend until weldment on jack is
aligned with tongue weldment.
4. See Figure 2-4. Install jack and secure with clevis
(D).
D
Figure 2-4. Jack Installed
5. See Figure 2-3. Remove pins (B) and (C).
14
C
003591
003517
CAUTION
Pinching and crushing hazard. To avoid
possible injury, keep fingers away from pivot
point when folding or unfolding trailer tongue.
6. See
Figure 2-5. Using both hands, slowly lower
trailer tongue into tow position.
NOTE: Varying levels of effort may be required
depending on terrain.
Figure 2-5. Lower Trailer Tongue into Tow Position
7. See 2-6. Install pins as shown to secure
Figure
trailer tongue in tow position.
Figure 2-6. Install and Secure Pins
Owner's Manual for Mobile Light Tower
(000313)
