Operation

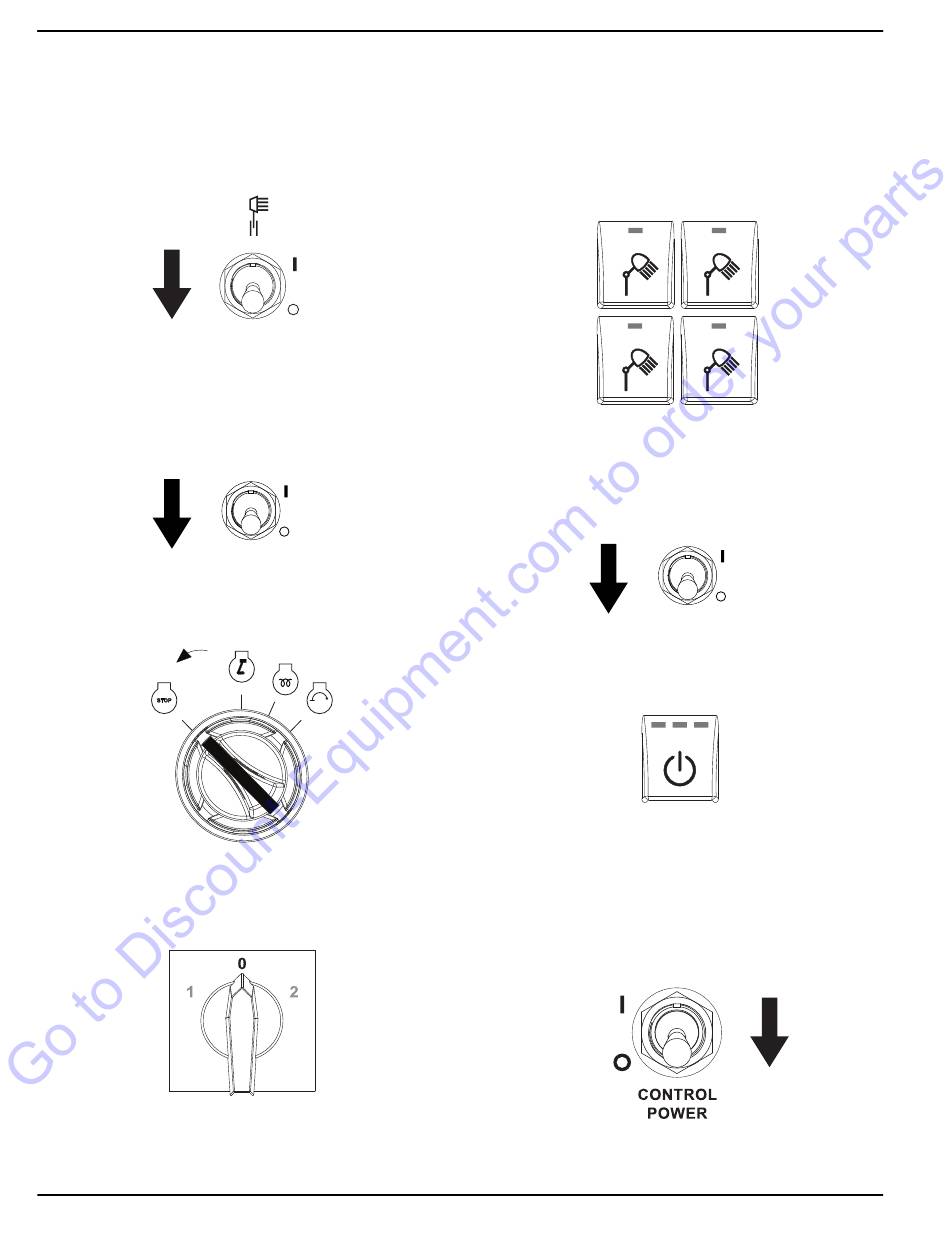

Shutting Down Unit—Analog
Controls
1. Stop using and unplug equipment from the 120 V
convenience receptacles. See
from Receptacles (If
2. See Figure 3-20. Switch lights to OFF (O).
Figure 3-20. Lights Switch
3. See
Figure 3-21. Switch main AC circuit breaker to
OFF (O).
Figure 3-21. Main AC Circuit Breaker OFF (O)
4. See
Figure 3-22. Turn ignition switch to STOP
position.
Figure 3-22. Stop Engine
5. Open unit hood.
6. See Figure 3-23. Switch the flex switch (if
equipped) to position 0.
Figure 3-23. Flex Switch—Position 0
7. Close unit hood.
30
Removing Loads
Equipped).
MAIN AC
CIRCUIT
BREAKER
Shutting Down Unit—Power
Zone Autolite Controls (MANUAL
Mode)
1. Remove all loads from receptacles. See
ing Loads from Receptacles (If
2. See
Figure
pressing the light ON-OFF buttons.
Light 1
010586
Light 4
Figure 3-24. Light Fixture ON-OFF Buttons
3. See
Figure
OFF (O).
010587
Figure 3-25. Main AC Circuit Breaker OFF (O)
4. See
Figure
button once.
Figure 3-26. Engine START-STOP Button
010594
NOTE: Engine begins cool-down cycle, shutting off when
engine is sufficiently cool.
NOTE: To skip cool-down cycle, press the ENGINE
START-STOP button twice instead of once.
5. See
Figure
OFF (O).
010595
Figure 3-27. Controller Power—OFF (O)
Equipped).
3-24. Switch OFF (O) lights by
Light 2
Light 3
3-25. Switch main AC circuit breaker to
MAIN AC
CIRCUIT
BREAKER
3-26. Press the engine START-STOP
3-27. Switch controller power switch to
