Place Trailer Tongue in Storage Position
1. Verify unit is on a level surface and wheels are
blocked.
2. See Figure 2-7. Extend jack (A) enough to allow
minimum effort to pivot trailer tongue into storage
position.
A

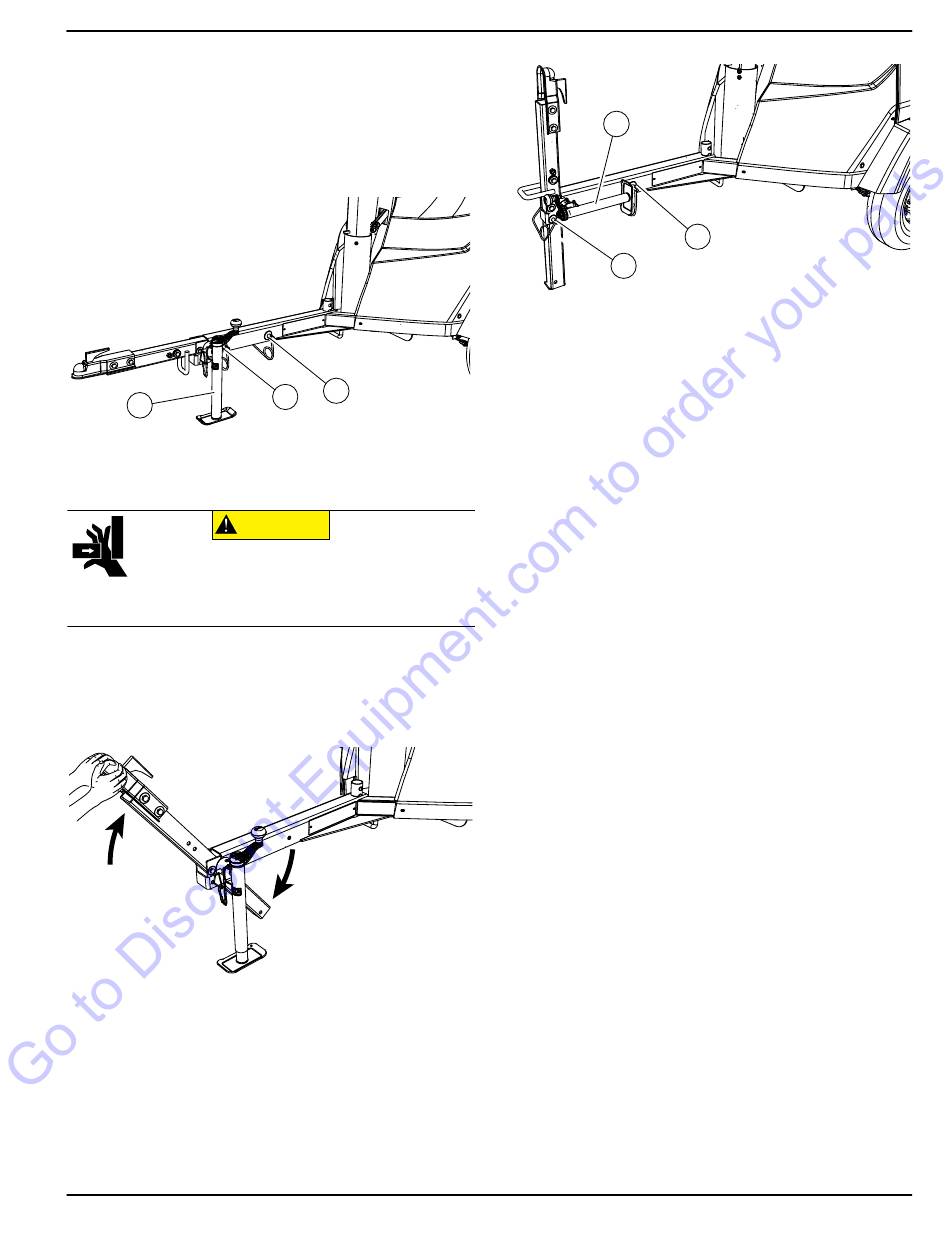

Figure 2-7. Extend Jack and Remove Pins
3. Remove pins (B) and (C) from trailer tongue.
CAUTION
Pinching and crushing hazard. To avoid
possible injury, keep fingers away from pivot
point when folding or unfolding trailer tongue.
4. See Figure 2-8. Pivot trailer tongue into storage
position.
NOTE: Varying levels of effort may be required
depending on terrain.
Figure 2-8. Pivot Trailer Tongue Into Storage Position
5. See Figure 2-9. Install pins (B) and (C) at locations
shown to secure trailer tongue in storage position.
Owner's Manual for Mobile Light Tower
C
B
003593
(000313)
003520
A
C
B
Figure 2-9. Install Pins and Rotate Jack
6. Remove clevis and remove jack (A) from tongue
weldment.
7. Completely retract jack.
8. Rotate jack 90° counterclockwise, place jack on
tongue weldment, and install clevis to secure jack
parallel to ground.
General Information
