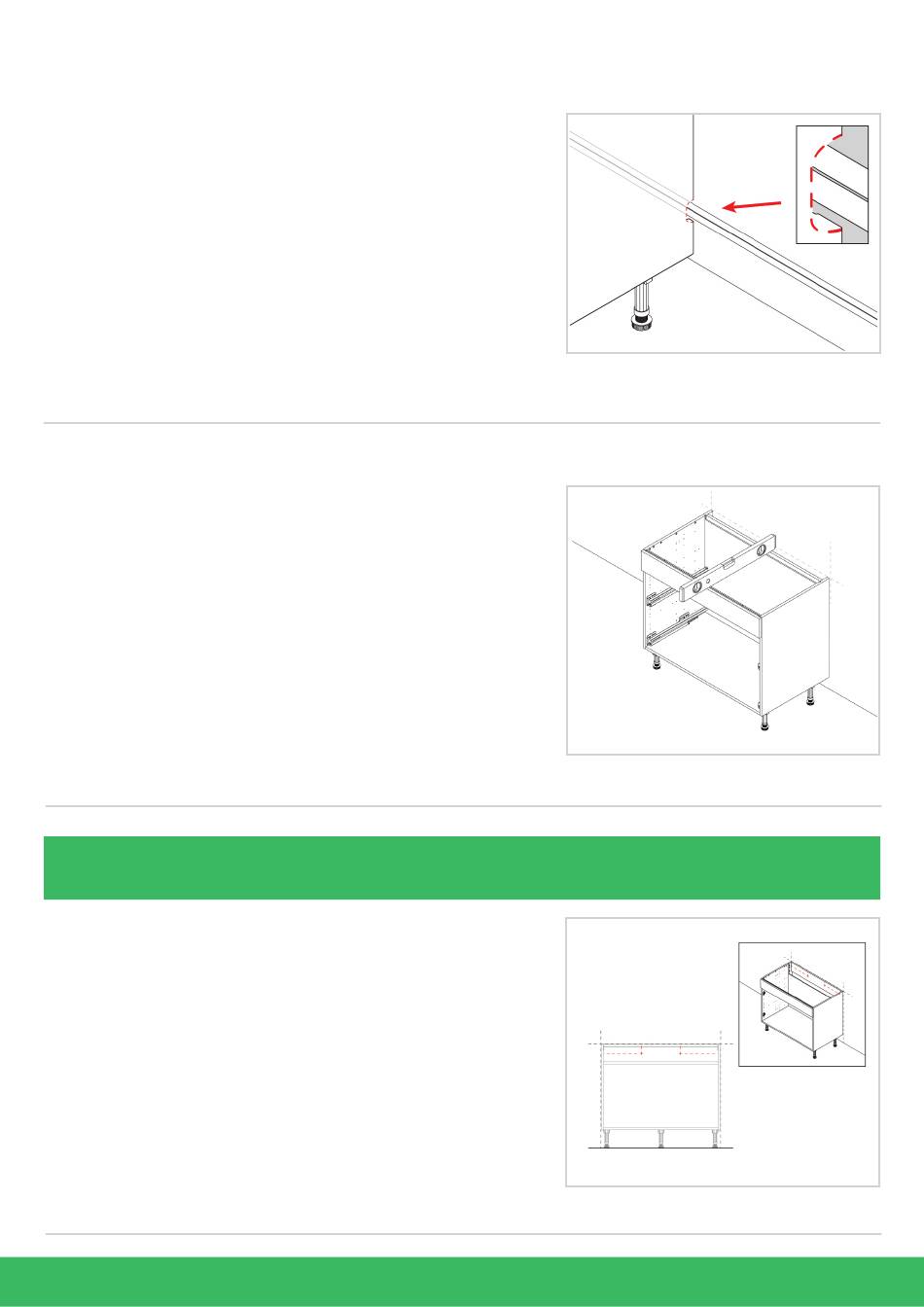

Notching out the end panels (when
required)
In order to allow for any horizontal pipework
running behind the unit, some units will
require the back of the unit's side to be
notched out.
Create a notch for the horizontal pipes at the
back of the end panels using a jigsaw.
Sliding the unit into place
Slide the unit against the wall and align it
with the wall markings and the services.
Use a spirit level to ensure the unit is
level from front to back, left to right, and
diagonally. Adjust the legs if required.
The leg height can be adjusted by turning the
foot of the leg clockwise or anti-clockwise.
Before drilling into the wall, you MUST check for any hidden services or pipework within the walls.
Finding the centre points
Find the centre point measurements of the
rear top rail and lightly mark these positions.
Transfer the measurements onto the wall at
the unit markings, which were drawn at the
room preparation stage.
This will be the position of the wall fixings.
