L I N E A / M I L A N O

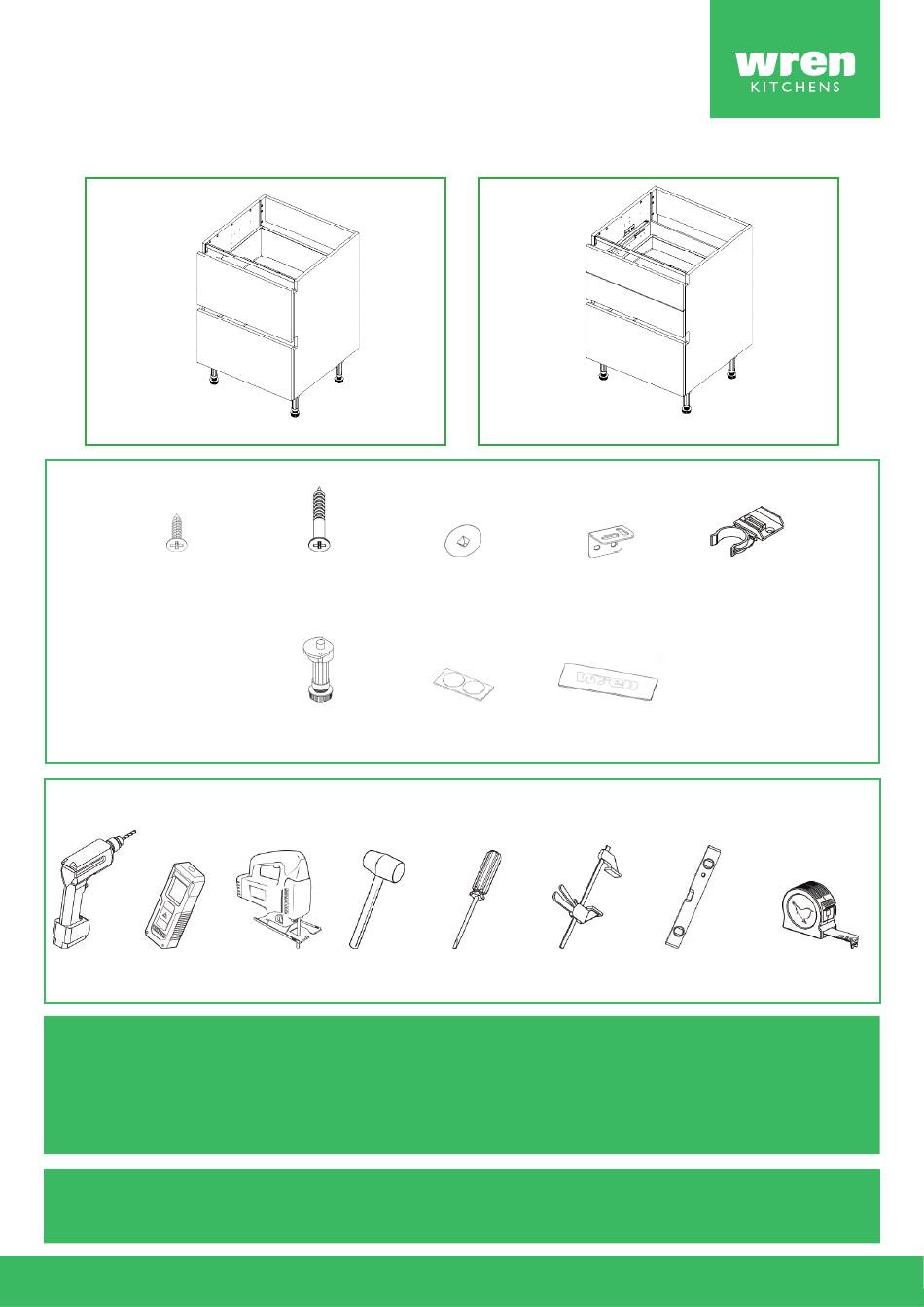

Base Cabinet
Cooktop Base (Drawer, Open Top, 4 Legs) - Fitting Guide
2 Drawers
Cabinet Parts
32x
5/8" Screws
Tools Required
Drill
Stud Finder
Remember to take care when unpacking. Please keep your workspace clean,
clear, and tidy when working. This will help keep all items safe from damage. Any
waste cardboard or plastic should be flattened down and placed in the trash can.
A minimum of two people will be needed to lift the cabinet.
6x
1 1/4" Screws
Cover Caps
4x
Legs
Door Buffers
Jigsaw
Mallet
3 Drawers
with non - opening drawer
18x
2x
L-Brackets
5x
Drawer
Cover Caps
Screwdriver
Clamp
2x
Toe Kick Clips
Spirit Level
Tape Measure
Page 1
