L I N E A / M I L A N O
Tower Unit
600 + 450 Appliance Including 1 Lift Door, 1 Door (Door, Solid Top, 5 Legs) -
Fitting Guide
Unit Parts
30x
15mm Screws
30mm Screws
1x
Appliance Shelf
Tools Required
Drill
Jigsaw
6x
5x
Legs
2x
12x
Shelves
Shelf Pegs
Mallet
Screwdriver
5x
Leg Brackets
Plinth Clips
2x
Small L-Brackets
L-Brackets
Clamp
Spirit Level
2x
5x
Door Buffers
2x
24x
Cover Stickers
Tape Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens LINEA Tower Unit
Summary of Contents for Wren Kitchens LINEA Tower Unit

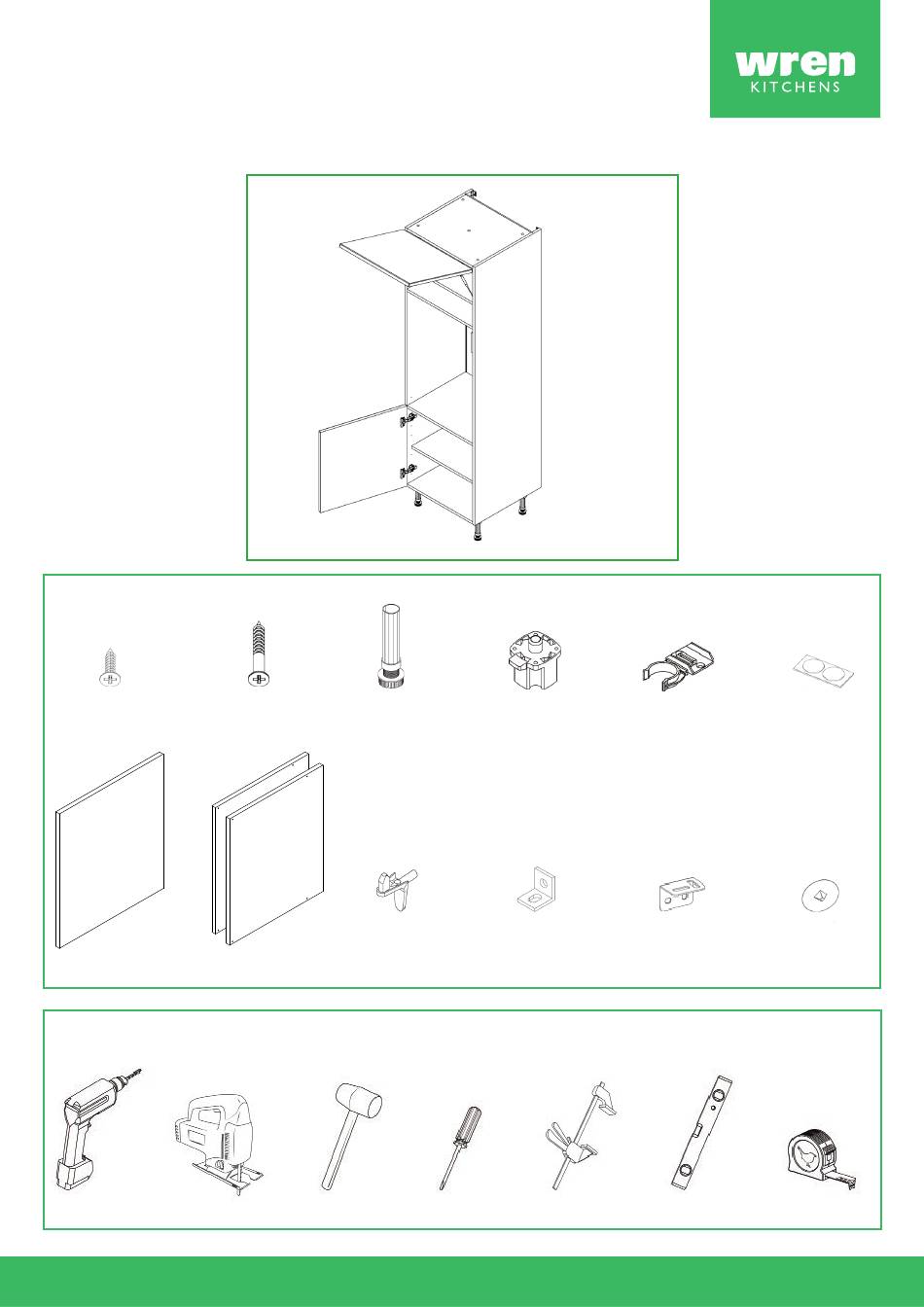

- Page 1 L I N E A / M I L A N O Tower Unit 600 + 450 Appliance Including 1 Lift Door, 1 Door (Door, Solid Top, 5 Legs) - Fitting Guide Unit Parts 15mm Screws 30mm Screws Legs Leg Brackets Plinth Clips Door Buffers Appliance Shelf...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Positioning the leg brackets Locate the leg brackets and position, as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge, as this provides support for the edge of the unit. Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket.
- Page 4 Securing the L-bracket Secure each of the L-brackets to the upper rear of the unit using 2x15mm screws at each side. Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage.
- Page 5 To attach adjacent tower units to this unit, refer to: Milano Mid Profile - Fitting Guide To attach adjacent base or wall units to this unit, refer to: Milano End Profile - Fitting Guide Inserting the shelf into position Position the shelf pegs into the pre-drilled holes.
- Page 6 Attaching the frontal The frontal should be re-attached to the unit by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge pushed to the hinge plate until it clicks.
- Page 7 Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right.
- Page 8 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Page 8...
