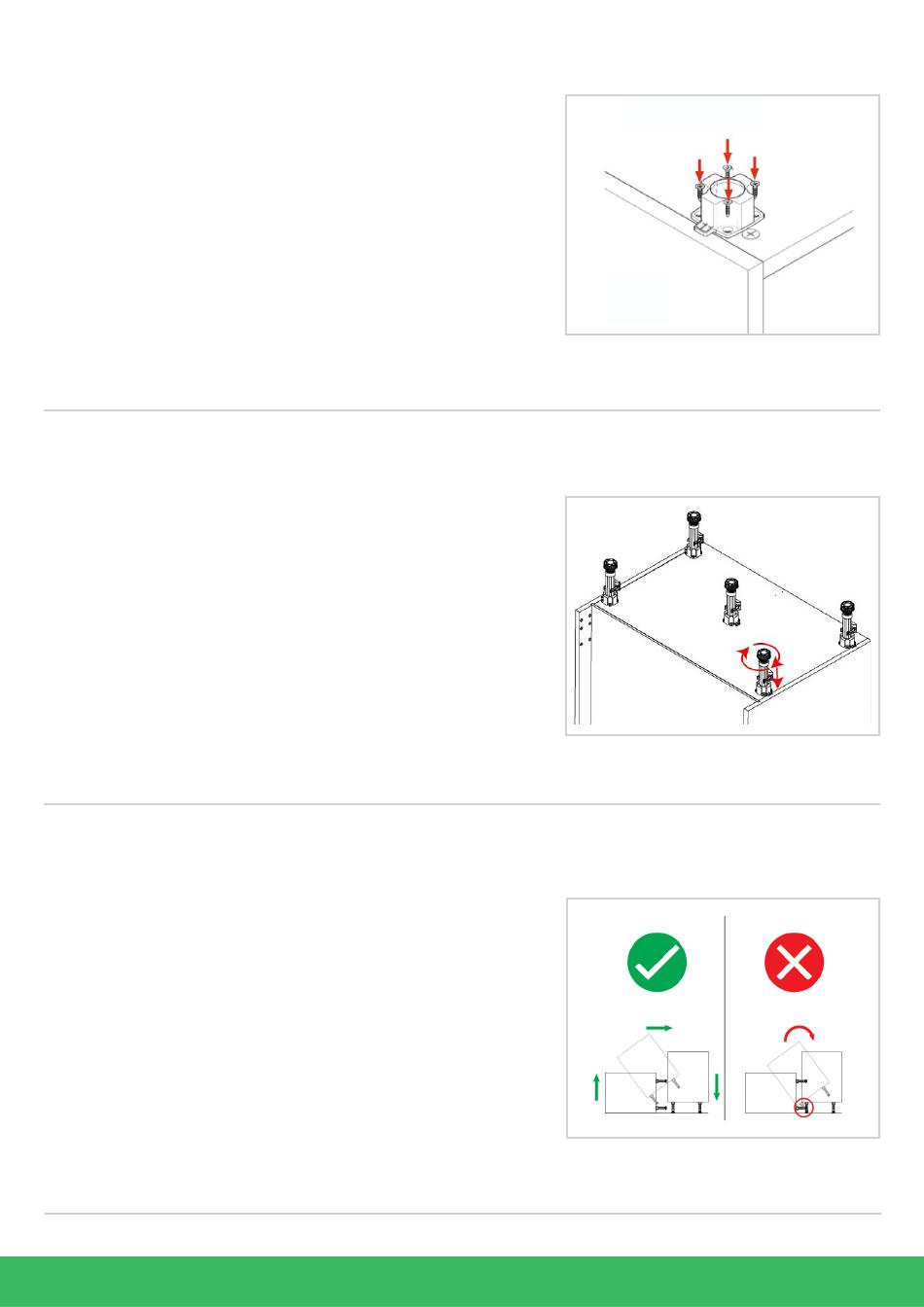

Fixing the leg bases

Secure each of the leg brackets into place

with 4x15mm screws per bracket.

Inserting the legs

Push each leg firmly down into the leg

bracket. Adjusting each leg to 165mm.

Adjust the legs to the correct height by

turning clockwise or anti-clockwise.

Lifting the unit into place

When lifting the unit into place do not tilt as

this can damage the legs.

Page 6
