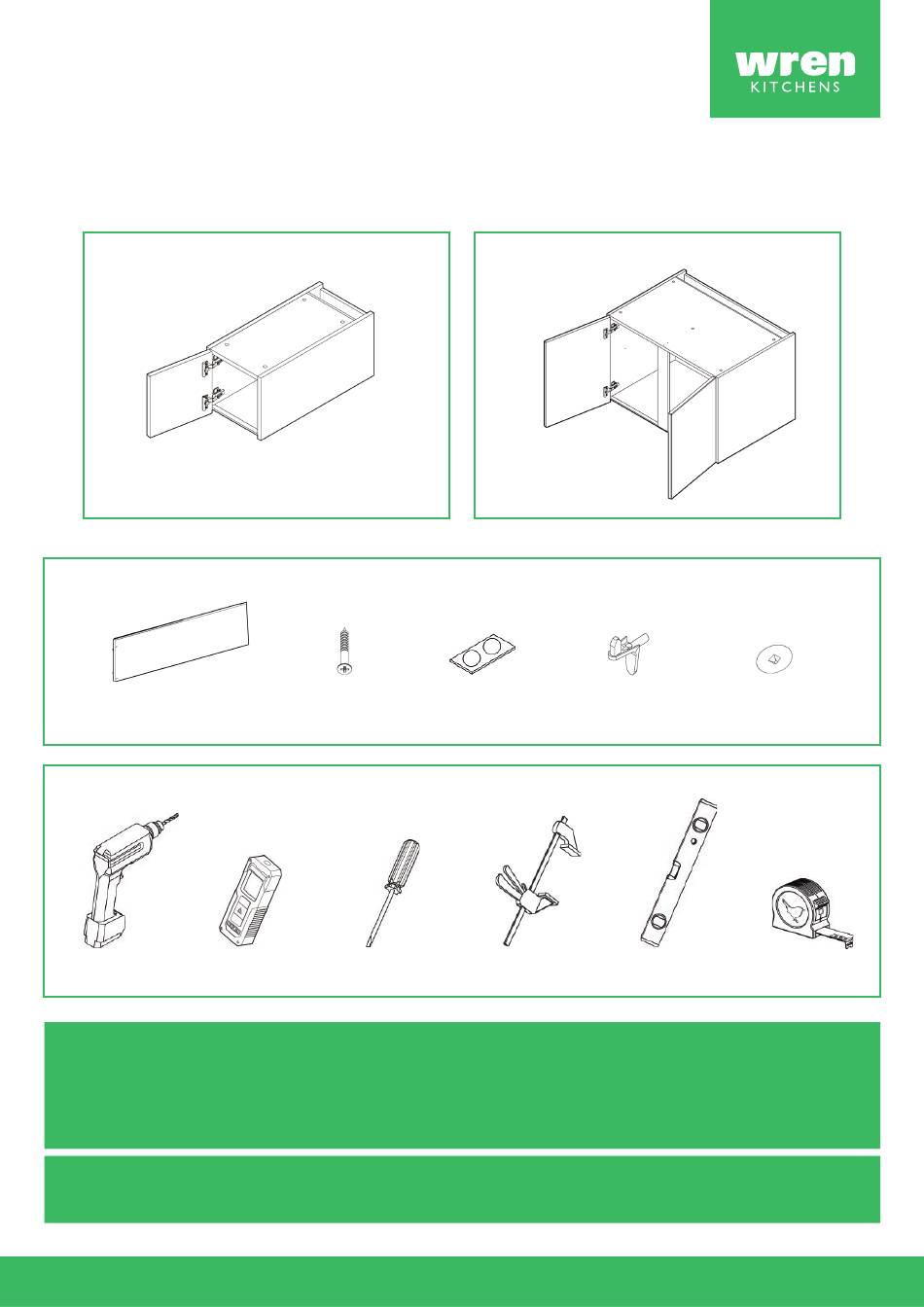

Deep Bridging Wall (Door, Solid Top) - Fitting Guide

1 door

Cabinet Parts

Shelf

(If required)

Tools Required

Drill

Stud Finder

Remember to take care when unpacking. Please keep your workspace clean,

clear, and tidy when working. This will help keep all items safe from damage. Any

waste cardboard or plastic should be flattened down and placed in the trash can.

A minimum of two people will be needed to lift the cabinet.

Door Buffers

1 1/4" Screws

Screwdriver

2 door

Shelf Supports

Clamp

Spirit Level

12x

Cover Caps

Tape Measure
