Wren Kitchens LINEA Base Cabinet Fittings Manual

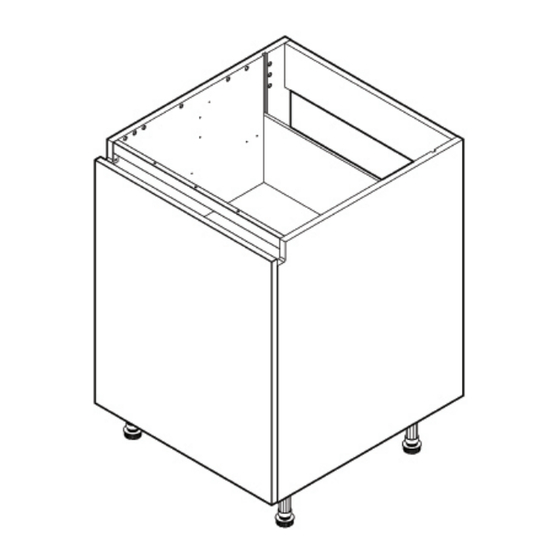

Cooktop base (door, open top, 4 legs)
Hide thumbs Also See for LINEA Base Cabinet:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

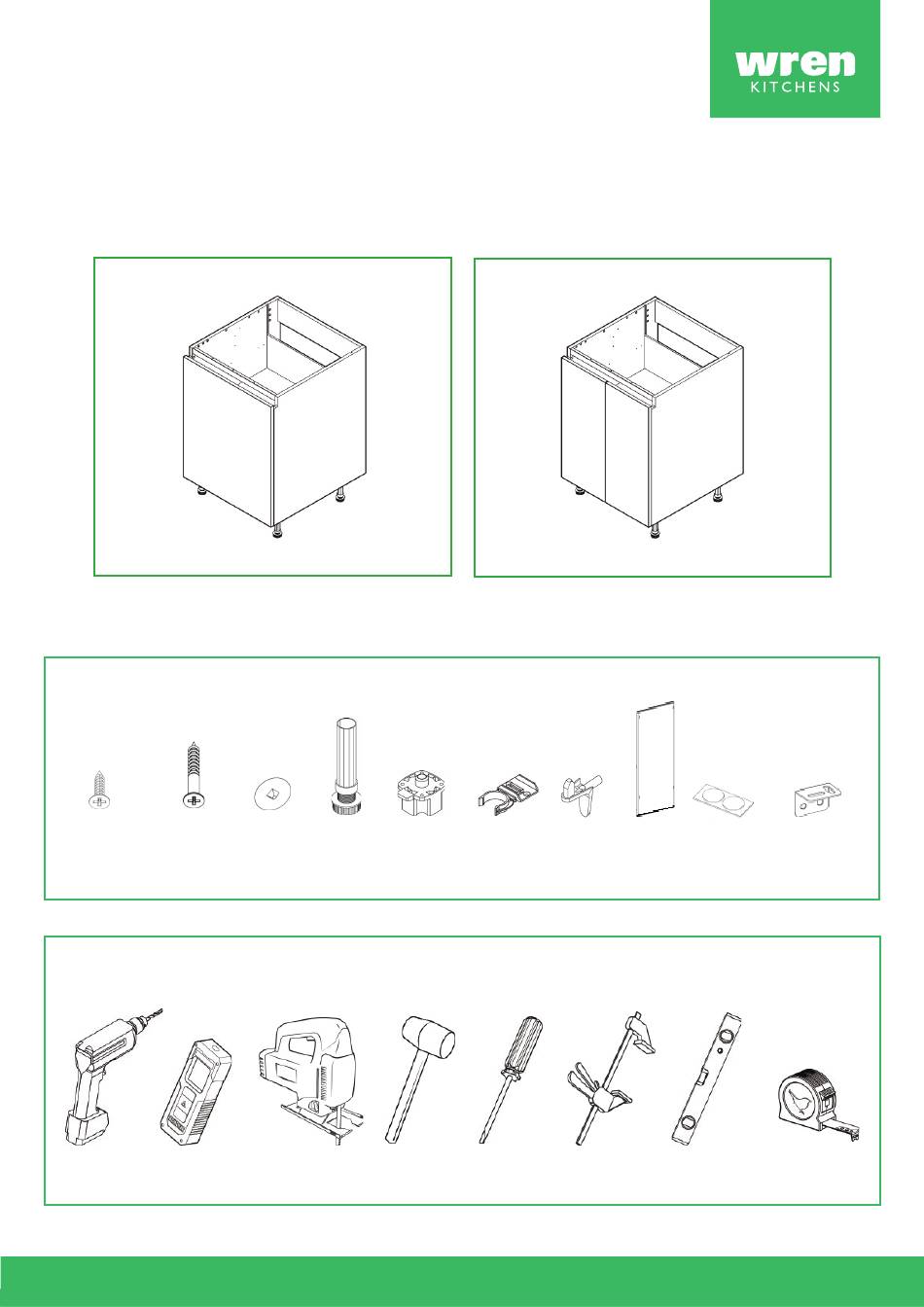

L I N E A / M I L A N O
Base Cabinet
Cooktop Base (Door, Open Top, 4 Legs) - Fitting Guide
Cabinet Parts
32x 5/8"
6x 1 1/4"
18x
4x
4x
2x
4x
5x
2x
1x
Screws
Screws
Cover
Legs
Leg
Toe Kick
Shelf
Door
L-Brackets
Shelf
Caps
Brackets
Clips
Pegs
Tools Required
Drill
Stud Finder
Jigsaw
Mallet
Screwdriver
Clamp
Spirit Level
Tape Measure
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINEA Base Cabinet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wren Kitchens LINEA Base Cabinet

Summary of Contents for Wren Kitchens LINEA Base Cabinet

  • Page 1 L I N E A / M I L A N O Base Cabinet Cooktop Base (Door, Open Top, 4 Legs) - Fitting Guide Cabinet Parts 32x 5/8” 6x 1 1/4” Screws Screws Cover Legs Toe Kick Shelf Door L-Brackets Shelf Caps Brackets...
  • Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear, and tidy when working. This will help keep all items safe from damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. A minimum of two people will be needed to lift the cabinet.
  • Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x 5/8” screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 4 9/16”. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
  • Page 4 Locating the stud Using a stud finder, locate the studs where the cabinet will be installed and mark the wall where the cabinet will sit. For help on determining the sort of wall you have, please refer to the “Room Preparation Guide.” Notching out the end panels (when required) In order to allow for any horizontal pipework...
  • Page 5 Before drilling into the wall, you MUST check for any hidden services or pipework within the walls. Finding the center point Find the center point measurement of the rear top rail and lightly mark this position. Transfer the measurement onto the wall at the cabinet markings, which were drawn at the room preparation stage.
  • Page 6 Before attaching the cabinets together, ensure that the linea/milano profile cutouts of both cabinets align. Securing adjacent cabinets Any adjacent cabinets need to be secured using the 1 1/4” screws provided. Screw to the rear of both hinge plates and to the rear of the cabinet at the top and bottom.
  • Page 7 Attaching the frontal The frontal should be re-attached to the cabinet by clipping the hinges onto the hinge plates. The bar of the hinge needs to be positioned into the hooks on the hinge plate. Then the rear of the hinge is pushed to the hinge plate until it clicks.
  • Page 8 Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right. Point 2 - Will adjust the frontals in and out. To move the hinges up or down, loosen the screws A and B.
