M I L A N O
BASE UNIT

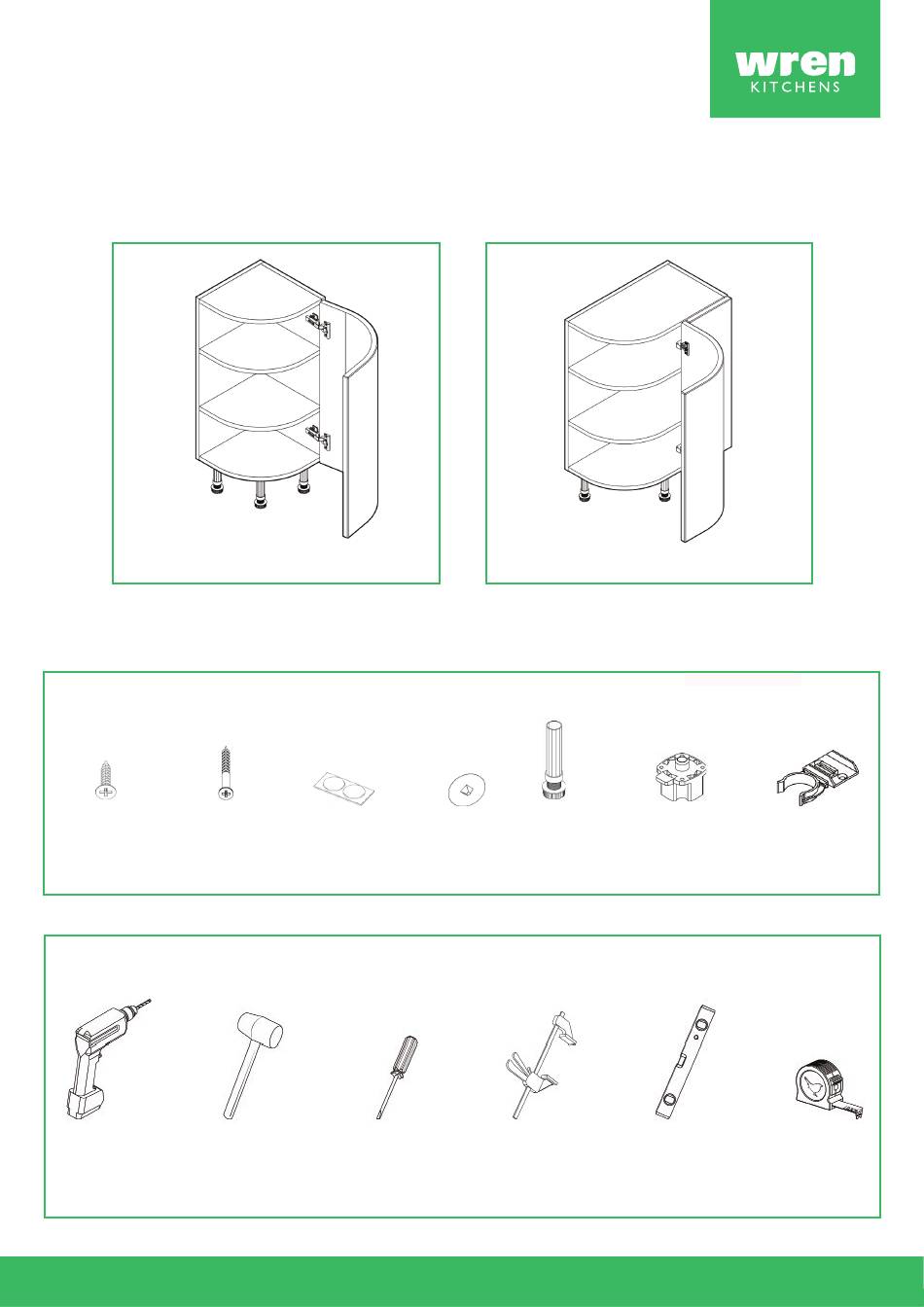

Curved End Base (1 door, 2 shelves, Solid Top, 4 Legs) - Fitting Guide
570mm unit
330mm unit
Unit Parts
30x
6x
5x
18x
4x
4x
2x
15mm Screws
30mm Screws
Door Buffers
Cover Caps
Legs
Leg Brackets
Plinth Clips
Tools Required
Drill
Mallet
Screwdriver
Clamp
Tape Measure
Spirit Level
Page 1
Advertisement
Related Manuals for Wren Kitchens MILANO BASE UNIT
Summary of Contents for Wren Kitchens MILANO BASE UNIT
- Page 1 M I L A N O BASE UNIT Curved End Base (1 door, 2 shelves, Solid Top, 4 Legs) - Fitting Guide 570mm unit 330mm unit Unit Parts 15mm Screws 30mm Screws Door Buffers Cover Caps Legs Leg Brackets Plinth Clips Tools Required Drill Mallet...
- Page 2 This unit should be fitted only after the adjacent base unit has been fully installed. Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damage. Any un-needed cardboard or plastic should be flattened down and placed in the bin.
- Page 3 Positioning the leg brackets Locate the leg brackets and position as shown in the diagram. Ensure the leg brackets are rotated so the flange covers the outer edge at the back and inner side of the unit as this provides more support for the unit’s side panels.
- Page 4 Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage. Use a spirit level to ensure the unit is level from front to back, left to right, and diagonally.
- Page 5 Before attaching the units together, ensure that the milano profile cutout of both units align. Securing to adjacent units Clamp together the two units, checking the front edges are level and flush. Using the screws provided, 1x30mm screw should be fixed from the inside of the adjacent unit, into each corner of the unit.
- Page 6 Removing the hinge cover cap (330mm unit) Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge (330mm unit) To adjust the hinges, use a screwdriver as required at points 1 and 2.
- Page 7 Removing the hinge cover cap (570mm unit) Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge (570mm unit) To adjust the hinges, use a screwdriver as required at points 1 and 2.
- Page 8 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Page 8...
