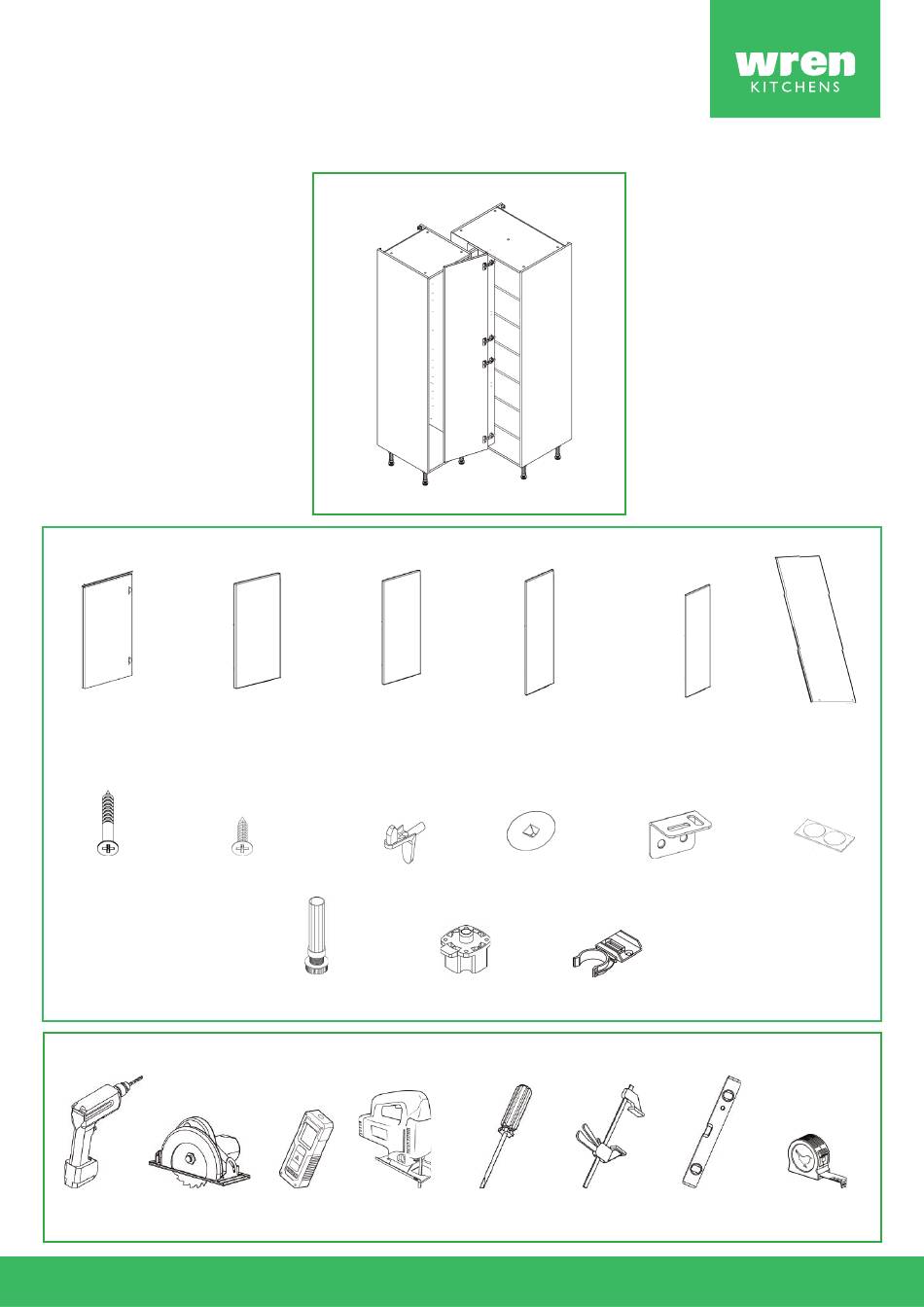

L I N E A / M I L A N O
Tower Cabinet
Adjustable Corner Tower (Door, Solid Top, 5 Legs) - Fitting Guide
Cabinet Parts
1x
Frontal
Corner post
16x
1 1/4" Screws
5/8" screws
Tools Required
Drill
Circular
Saw
1x
1x
Blanking
Panel
30x
5x
Shelf Pegs
5x
Legs
Stud
Jigsaw
Finder
1x
Packer Y1
16x
Cover Caps
5x
Leg Brackets
Toe Kick Clips
Screwdriver
Clamp
1x
Packer Z1
2x
L-Brackets
2x
Spirit
Level
6x
Shelf
5x
Door Buffer
Tape
Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens LINEA Tower Cabinet
Summary of Contents for Wren Kitchens LINEA Tower Cabinet
- Page 1 L I N E A / M I L A N O Tower Cabinet Adjustable Corner Tower (Door, Solid Top, 5 Legs) - Fitting Guide Cabinet Parts Frontal Corner post Blanking Packer Y1 Packer Z1 Shelf Panel 1 1/4” Screws 5/8”...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear, and tidy when working. This will help keep all items safe from damage. Any waste cardboard or plastic should be flattened down and placed in the trash can. A minimum of two people will be needed to lift the cabinet.
- Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x5/8” screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 4 9/16”. Adjust the legs to the correct height by turning clockwise or anti-clockwise.
- Page 4 Drilling the pilot holes for the packer fixing Packer Z1 should be positioned closely to the center post and in line with the front edge of the cabinet. Position the corner post’s opposite side to the hinge plates. On the cabinet’s front rail and base panel, transfer the 1 1/4”...
- Page 5 Lifting the cabinet into place When lifting the cabinet into place, do not tilt, as this can damage the legs. Position the cabinet against the wall so that the stud is in the center of the cabinet. Use a spirit level to ensure the cabinet is level from front to back, left to right, and diagonally.
- Page 6 Measuring the corner post Clamp the corner post panel into place by positioning it 3/4” behind the centerpost. Measure the gap between the corner post panel and the side of the adjacent cabinet. Take measurements from the top, middle, and bottom. All measurements must be the same.
- Page 7 Marking the position of panel Y onto panel Re-position the panel Z and clamp it into place, 3/4” back from the edge of the center post. Hold panel Y against the adjacent cabinet, as shown in the diagram. Mark the front and rear of panel Y onto panel Z using a pencil to determine the position for attaching the two panels.
- Page 8 Attaching the packer Secure Packer Y1 to the back of Panel Y using 3x 1 1/4” screws, ensuring the screws are equally spaced and both pieces align. View from above corner post. Fixing the corner post to the cabinet Move the adjacent base cabinet away from the corner cabinet.
- Page 9 Position the blanking panel with its white side facing the cabinet Fixing the blanking panel Position 7x 5/8” screws 3/8” from the edges of the blanking panel to secure it into the cabinet end panel, top rail, and bottom fixed shelf, ensuring the screws are evenly spaced.
- Page 10 To attach adjacent tower units to this unit, refer to: Milano Mid Profile - Fitting Guide To attach adjacent base or wall units to this unit, refer to: Milano End Profile - Fitting Guide Placing the shelf into position Remove the masking tape. Position the shelf pegs into the pre-drilled holes.
- Page 11 Adding the door buffers Position 1x door buffer at the top and bottom corners of the cabinet, as illustrated in the image. Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting.
- Page 12 Altering the soft-close Fit the hinge cover caps to the hinges by pressing down to secure. Adjust the soft-close to suit (if required). The soft-close is adjusted by turning the screw at the top of the hinge clockwise or anti-clockwise. Cleaning the cabinet Finally, the cabinet should be thoroughly cleaned to remove any debris that may have...
