Granular Activated Carbon and HEPA Filter
1. Use an appropriate stepladder to gain access to the top of the EDC and release
the two bungee cords securing the granular activated and carbon and HEPA
filters, as shown in Figure 7-3.
2. When handling used filters or prefilters, always wear appropriate personnel
protective equipment.
3. Lift the granular activated carbon and HEPA filters straight up and out of the
cabinet top.
4. Install the replacement filters, with the HEPA filter below the granular activated
carbon filter. The gaskets on both filters should be on the lower (bottom) surface.
5. Reinstall both bungee cords to secure the filters in place. The unit is now ready to
resume operation.
6. Filters should be disposed of properly. HEPA Filters should be treated as a
biohazard.

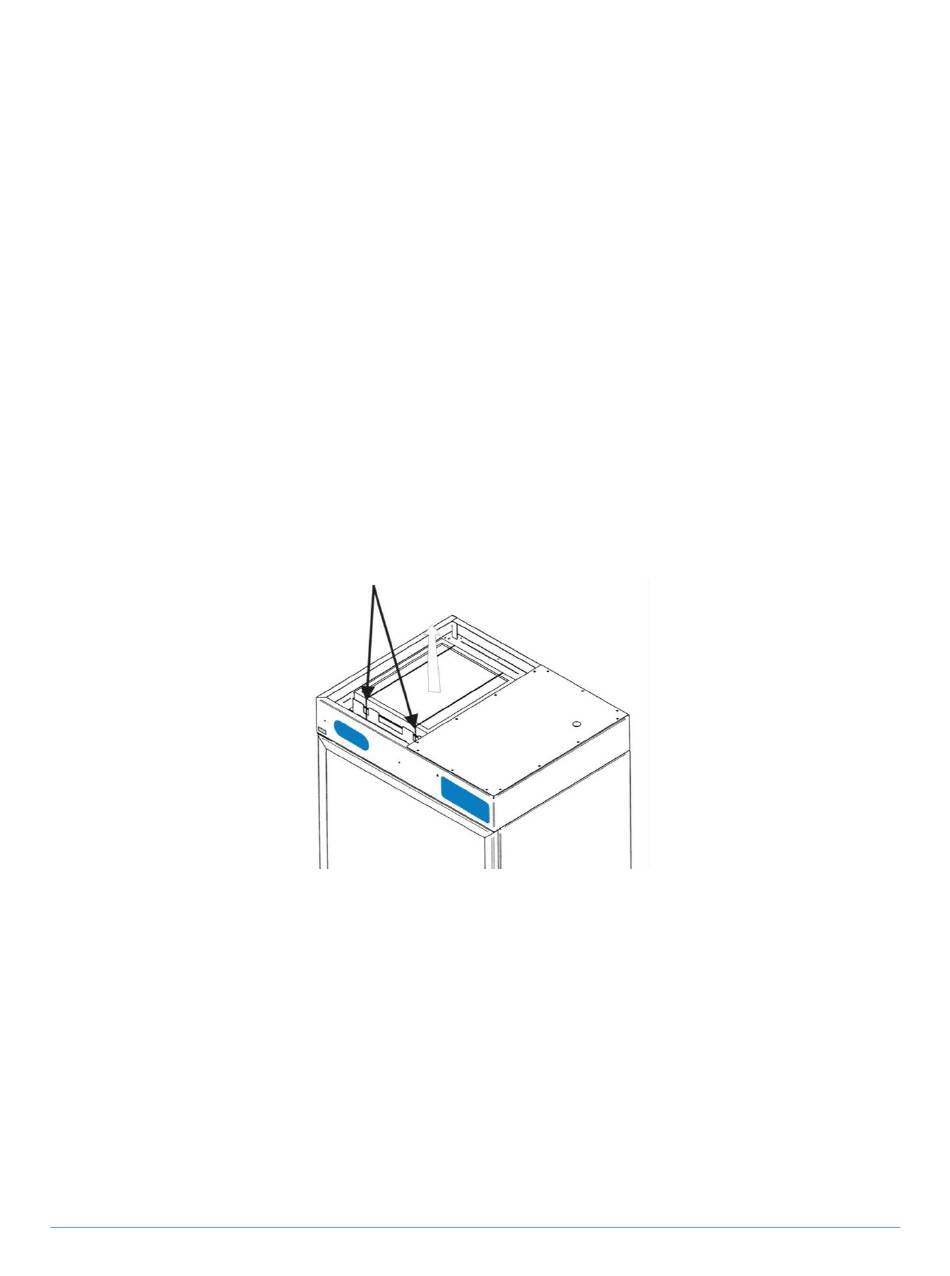

front of the unit, and then lift the filters
Unhook the bungee cord from the
straight up to remove.
Replacement:
32
Figure 7-3
