Service Operations
Door Evidence Prefilter
1. Pull the prefilter frame(s) straight away from the door(s), as shown in
Figure 7-1.
2. Wearing appropriate gloves and working on the inside surface of the prefilter
frame(s), carefully pull out the Evidence prefilter(s). The Evidence prefilter(s) can
now be examined for trace evidence or stored with the evidence in a sealed bag for
future reference.
3. Examine the door prefilter(s). If contaminated from the evidence drying operation, or
from dust, replace with a new one(s), such that the orange side of the prefilter(s)
faces you (away from the front of the prefilter frame).
4. Press the prefilter frame(s) back into the door, engaging the fastener strips.
Door Prefilter Replacement:
1. Follow Steps 1, 3, and 4 above.
Replacement:
30

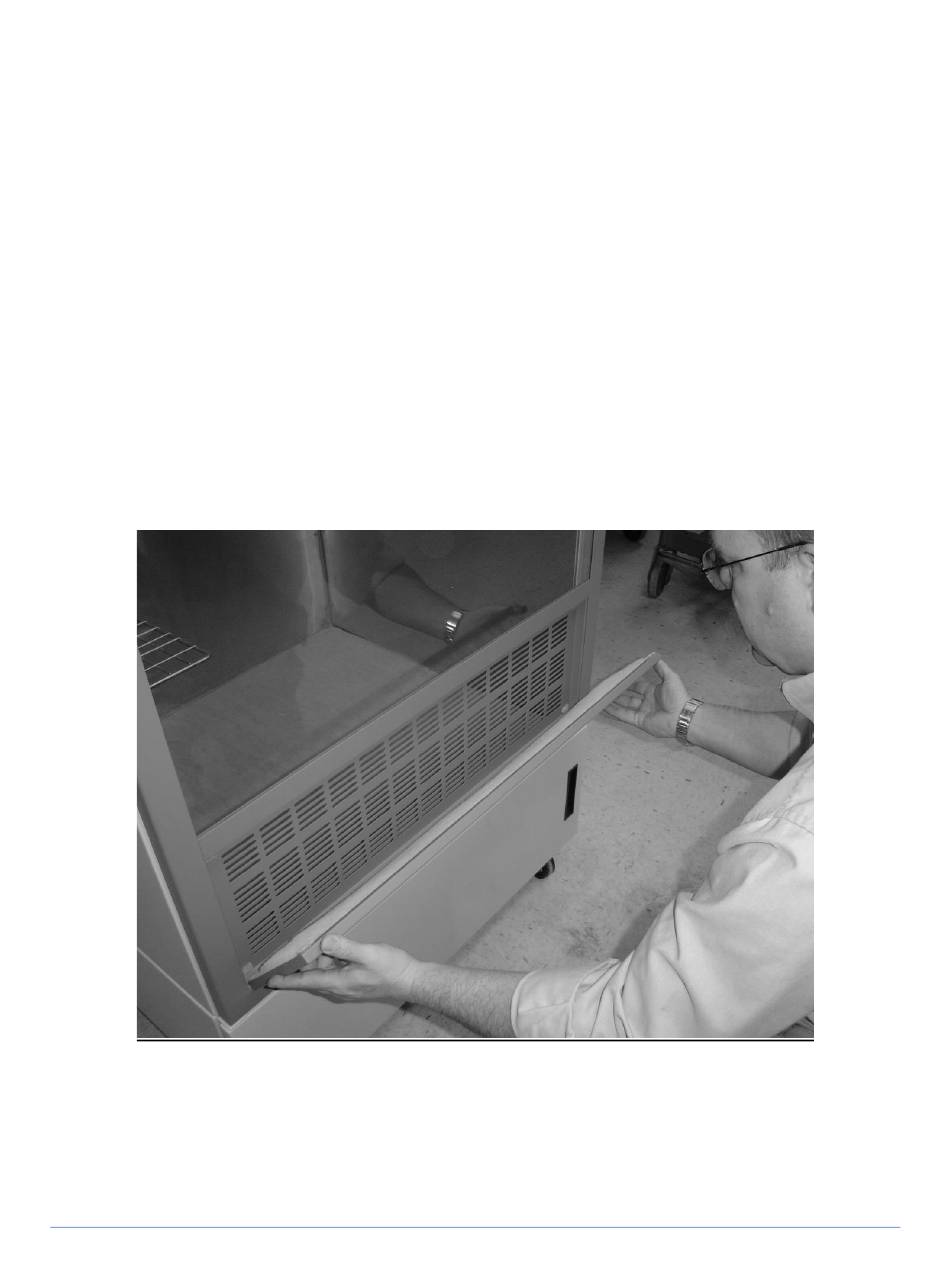

Figure 7-1
