Shelf Operation
The three drying shelves on the left side wall can be positioned horizontally to dry small
pieces of evidence, or swung down, against the left side wall of the liner, if needed. To
position the shelves in the up (horizontal) position:
1. Pivot the desired shelf until it is above horizontal (the frame of the shelf is higher
than the retaining clip on the back wall of the liner.
2. Push the shelf back all the way.
3. Slowly lower the shelf to a horizontal position, ensuring that the frame of the shelf
engages the retaining clip on the back wall of the liner. The shelf is now ready to
use.
To fold the shelf down (vertical position):
1. Lift up on the rear frame of the shelf, to release it from the rear retaining clip.
2. Pull the shelf towards the front of the liner and allow the shelf to swing down into
a vertical position.
25

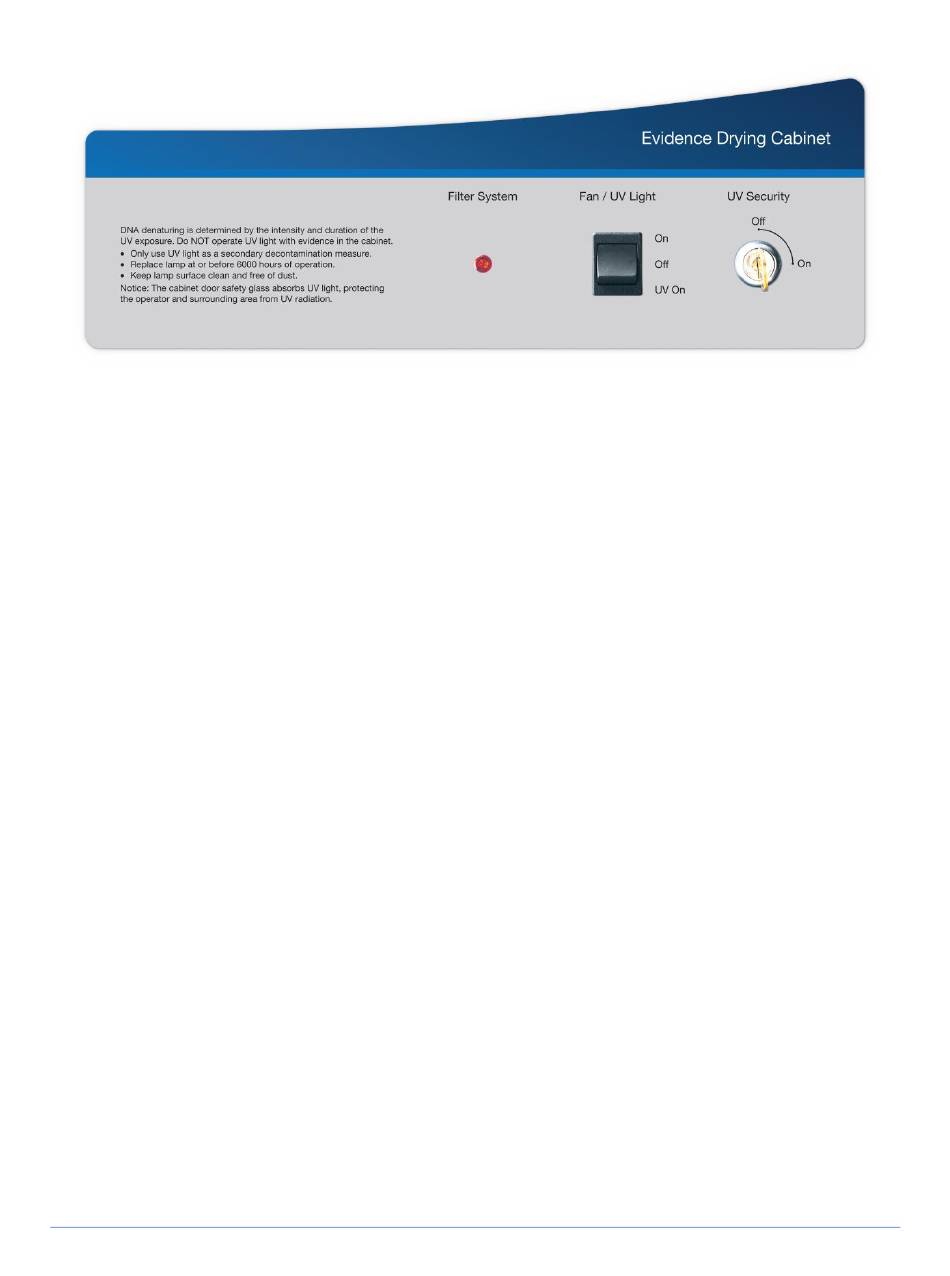

Figure 6-1
