S T E P 5
INSTALL
FRONT WHEEL

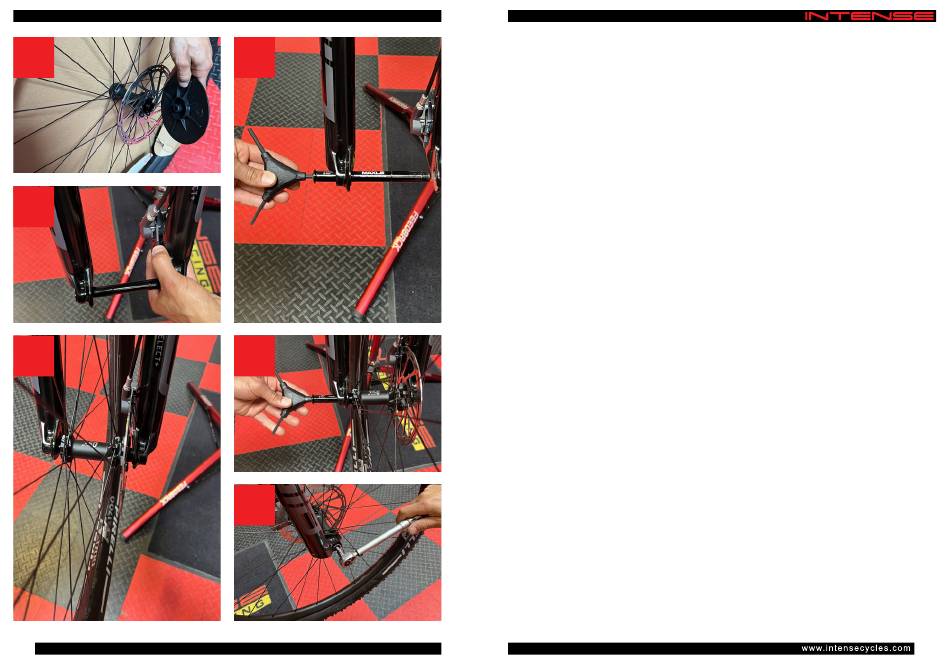

Remove all packaging from the front wheel
making sure the hub end caps are still in the correct
place and that they haven't been pulled off by
accident. If they do come off, just press them back
into position. Then remove the brake pad spacer (B).
At this stage be careful not to pull the front brake
lever until the wheel has been installed. Do not touch
the brake rotors with your hands or gloves as this
may contaminate them.
Using 6mm Allen remove the front wheel axle from
the fork (C). Position the wheel so that the rotor
fits into the brake caliper body and that the hub
body slots into the grooves on the fork (D). When
everything is in the correct place reinsert the front
wheel axle using a 6mm Allen (E). Finish off using the
torque wrench to 9-13.5Nm (F).
