8. Connectivity
8. Connectivity

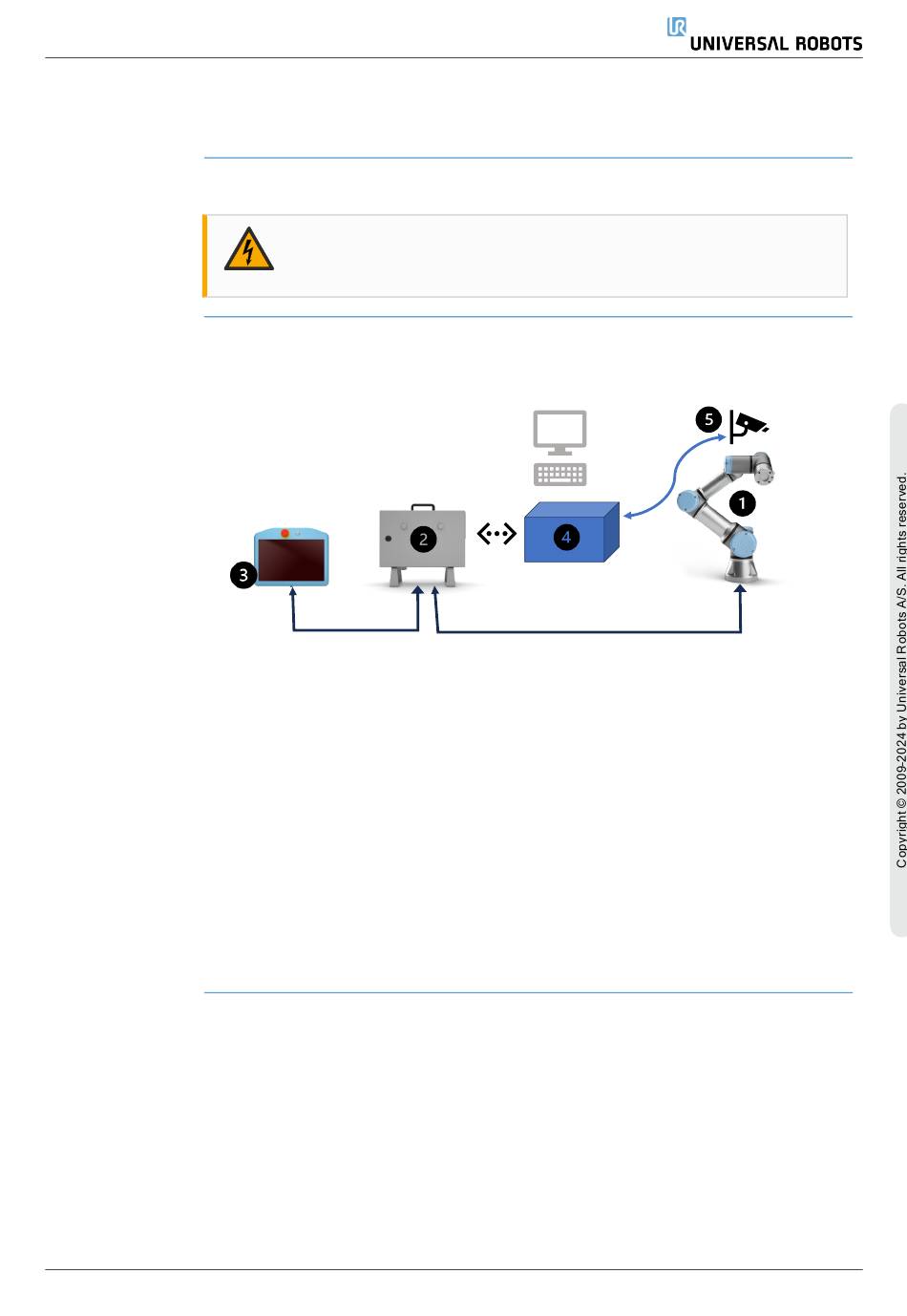

Description This section describes the connection of the components of the AI Accelerator
1
2
3
4
5
User Manual
WARNING: ELECTRICITY
Do not use any cables if they are damaged or show signs of wear.
Robot Arm
Connected to Control Box with proprietary cable.
Control Box
Connected to the mains power (not shown).
Teach Pendant
Connected to the Control Box with proprietary cable.
Compute module
Connected to Control Box via Ethernet connection.
Initial setup requires monitor, keyboard and mouse (not included).
Camera
Connected to Compute module with supplied camera cable.
