Fault codes and fault LEDs

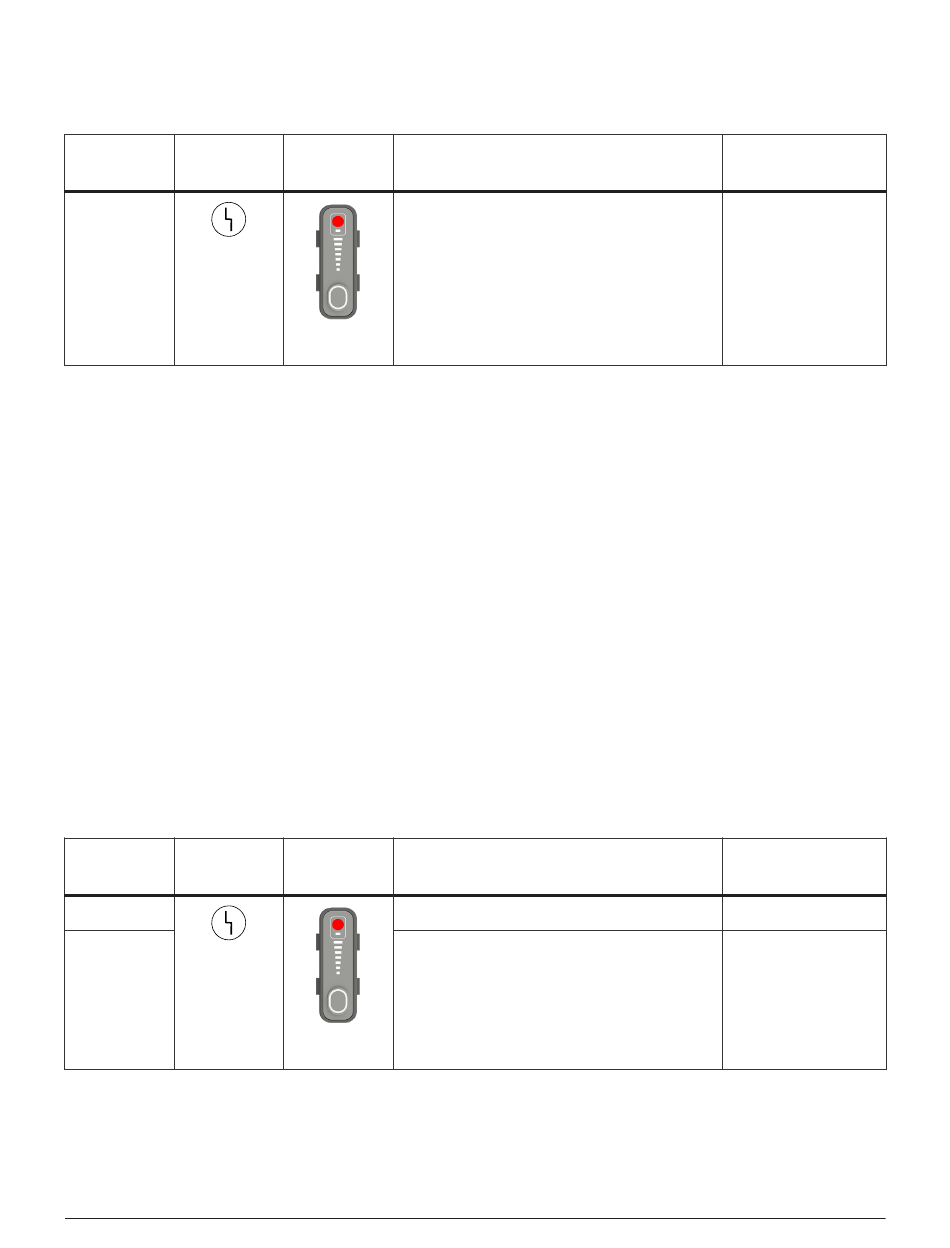

Fault code Fault LEDs
2-00-0
ON
Corrective action for 2-00-0 faults
1. Do a cold restart.
In some conditions, a restart can remove the fault condition.
2. Replace the power PCB.
If restarting the plasma power supply does not remove the fault condition, it is possible that the power
PCB must be replaced.
Troubleshooting for inverter module temperature sensor faults
(2-10-n)
2-10-n faults could indicate that there is a problem with the power PCB.
Fault codes and fault LEDs
Fault code Fault LEDs
2-10-0
2-10-1
ON
Powermax45 SYNC® Service Manual
Torch LED Description
The ADC value is out of range.
Red
Torch LED Description
The inverter module temperature sensor is open.
The inverter module temperature sensor short-
circuited.
Red
811480
Troubleshooting for fault codes
Stops the system
from operating?
Yes
Stops the system
from operating?
Yes
Yes
3
