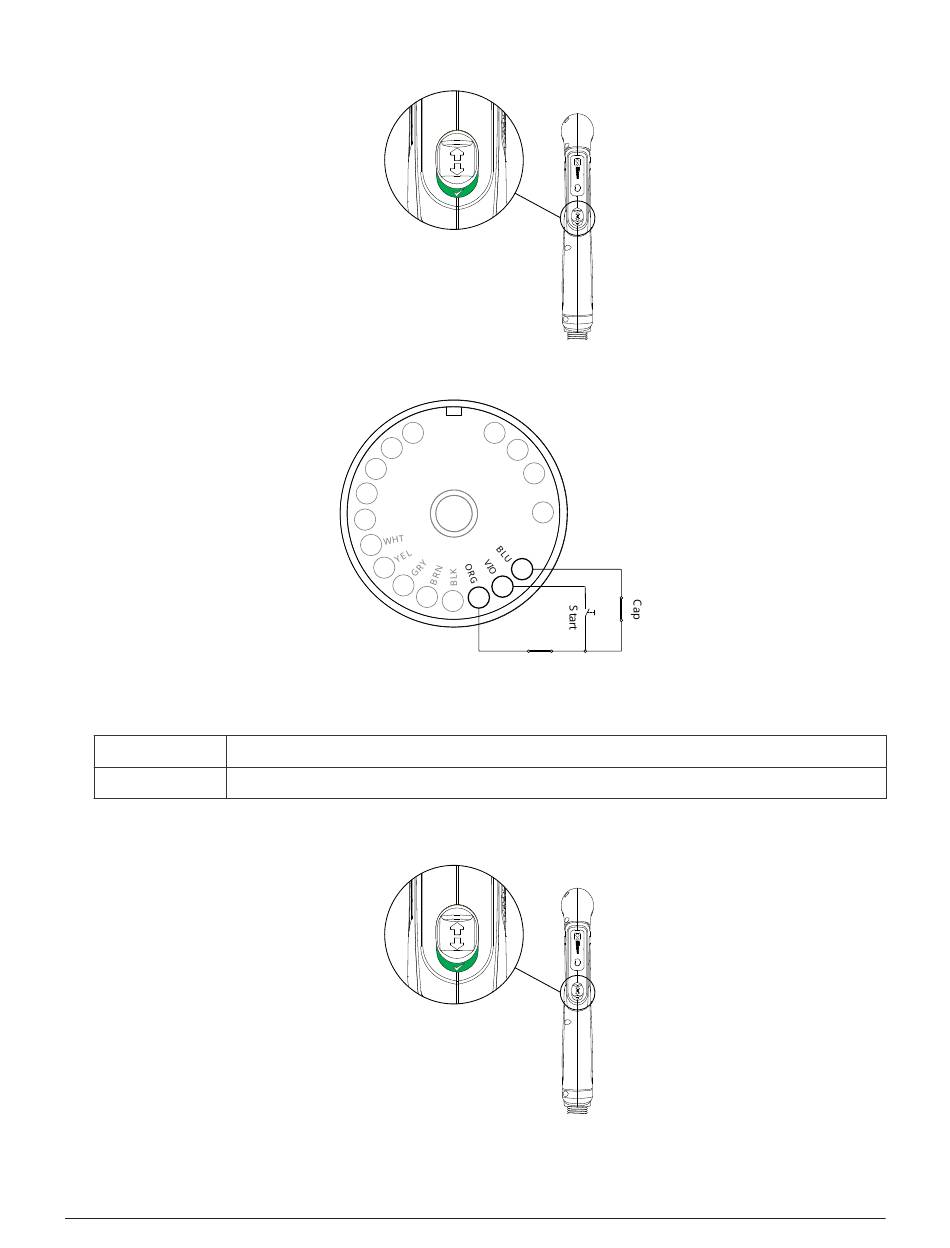

4. Measure the resistance between pin 5 and pin 7 in the torch connector.
5. Is the resistance very low?
If yes... Continue with the next step.
If no... The cap-sensor switch in the torch is open. Continue with step
6. Set the torch to the yellow lock (X) position.
Powermax45 SYNC® Service Manual
17 1
16
2
RED
RED
15
3
14
13
RED
12
11
5
10
6
9 7
8
Torch-disable switch
811480
Troubleshooting for fault codes
4
9 on page 74.
