Item Item Description Fault LED status Description Fault LED status
1 Bay 1 LED Off: Normal
Flashing 1Hz: Drive predictive failure
2 Bay 2 LED
Amber: Drive failure
DSC-25 2-port SFP28 card ports and LEDs DSC-25 2-port SFP28 card ports and LEDs
Ports Ports
Item Item Port Port
1 Management port
2 Network interface port 10/25G SFP+ based
3 Network interface port 10/25G SFP+ based
LEDs LEDs

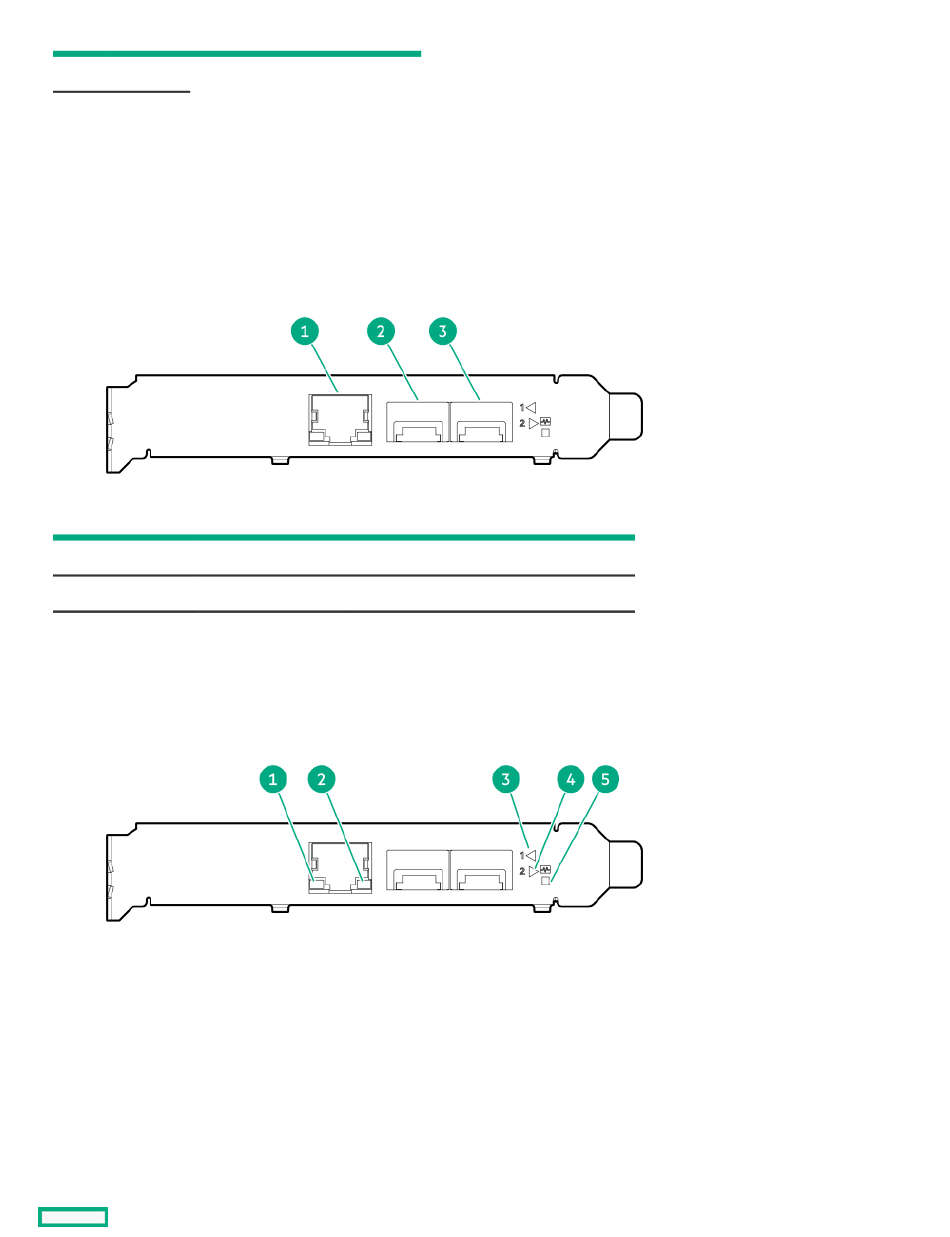

The HPE for Pensando DSP DSC-25 2p SFP28 card is a dual-port, single-slot, half-height, half-length (HHHL) SFP28 network adapter. It has
LEDs for Link (L) and Activity (A) for each port. A half-height bracket is shown in the following illustration with SFP28 ports and LEDs.
Table 1. Ports
Description Description
1GbE RJ45
Table 2. LED indicators
