1-2. Parts Name and Functions of the Converter

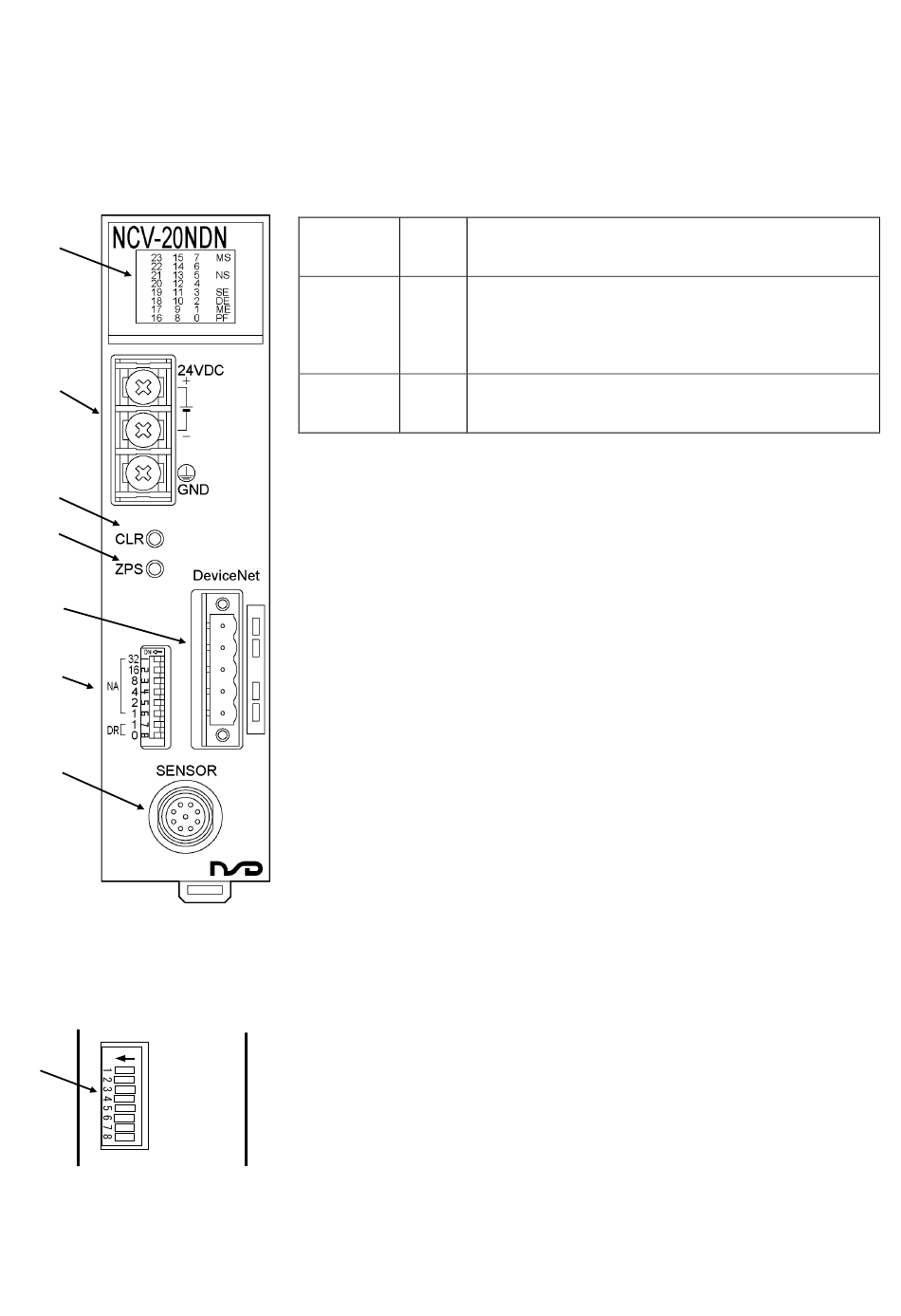

Names and functions of the NCV-20NDN Series are indicated in the below.
①
②
③
④
⑤
⑥
⑦
● Rear side of the converter
～
ON
⑧
～
① Monitor LED
DeviceNet
monitor
Error
monitor
Position
data
monitor
② Terminal block for the power supply connection
It is the input terminal of the external power supply. (M4 screw)
Connect the 24VDC and grounding wires.
③ CLR button
Cancel the error by pressing the button.
For more details, refer to "6-3".
④ ZPS button
The position data (D0-D23) can be set to 0 by pressing the ZPS button.
For more details, refer to "6-2".
⑤ "DeviceNet" communication connector
Connector for connecting the network
⑥ DeviceNet setting switch
Set the baud rate and node address.
For more details, refer to the "6-1-1".
⑦ Sensor connector
Connect with the ABSOCODER sensor.
～
⑧ PLC selection switch
Set when using the master unit which is manufactured by the
Rockwell Automation, Inc.
For more details, refer to the "6-1-2".
～
MS: Indicate the device status.
NS: Indicate the network status.
For more details, refer to "10-2".
SE: Light ON when the sensor disconnected error has
occurred.
DE: Light ON when the sensor data error has occurred.
ME: Light ON when the memory error has occurred.
PF: Light ON when the low power error has occurred.
0~23: Indicate the position data by the binary code.
