6-1-2. Setting the PLC selector switch
PLC selector switch is set when using the master unit which is manufactured by the Rockwell
Automation, Inc.
DIP-SW1 on the rear side of the converter should be ON.

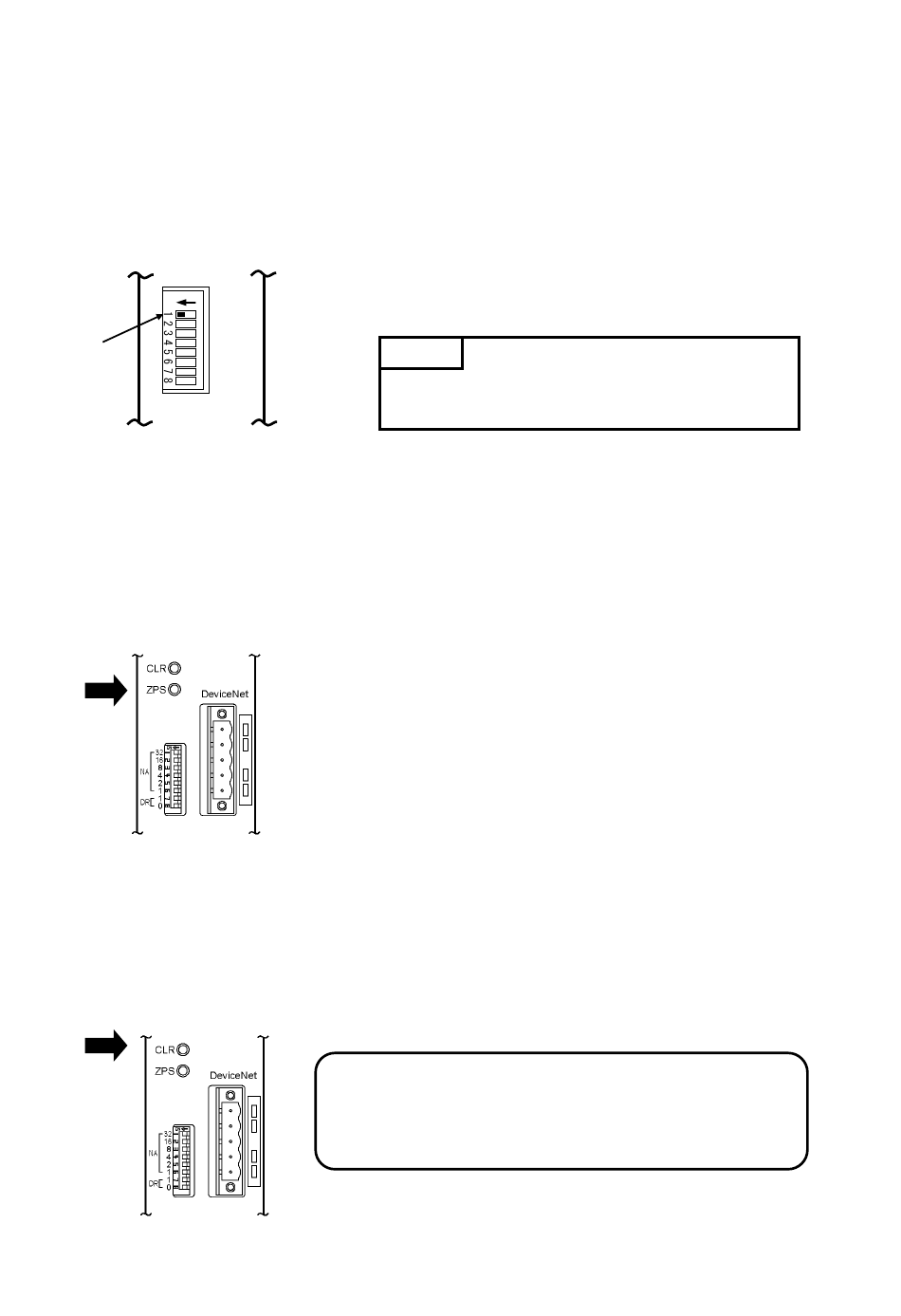

Rear side of the converter
ON
DIP-SW1
6-2. Zero Point Setting (ZPS Button)
Designating the position data (D0-D23) at "0" is "zero point setting". The zero point setting is that pressing
the zero point setting button "ZPS" on the panel after the moving the sensor to the zero point position.
6-3. Error Clear (CLR Button)
If an error has occurred, clear the error by pressing "CLR" button on the panel after remove an error cause.
For more error details, refer to "10-2. Troubleshooting".
All setting is OFF when shipping from the factory.
Note
DIP-SW2 to 8 is must be OFF.
Do not change the switch.
Zero point setting procedure
(1) Move the machine to the zero point position.
(2) Check the converter is normal status.
In the normal status, light OFF the each SE, DE, ME, and PF on
the front panel.
(3) Press the zero point setting button "ZPS" on the panel.
(4) Position data is set to the "0".
Point
The error clear can be done by "error reset" on the out data.
Fore more details, refer to "9-1-2. OUT data format".
