2. CONNECTION CONFIGURATION AND MODEL LIST

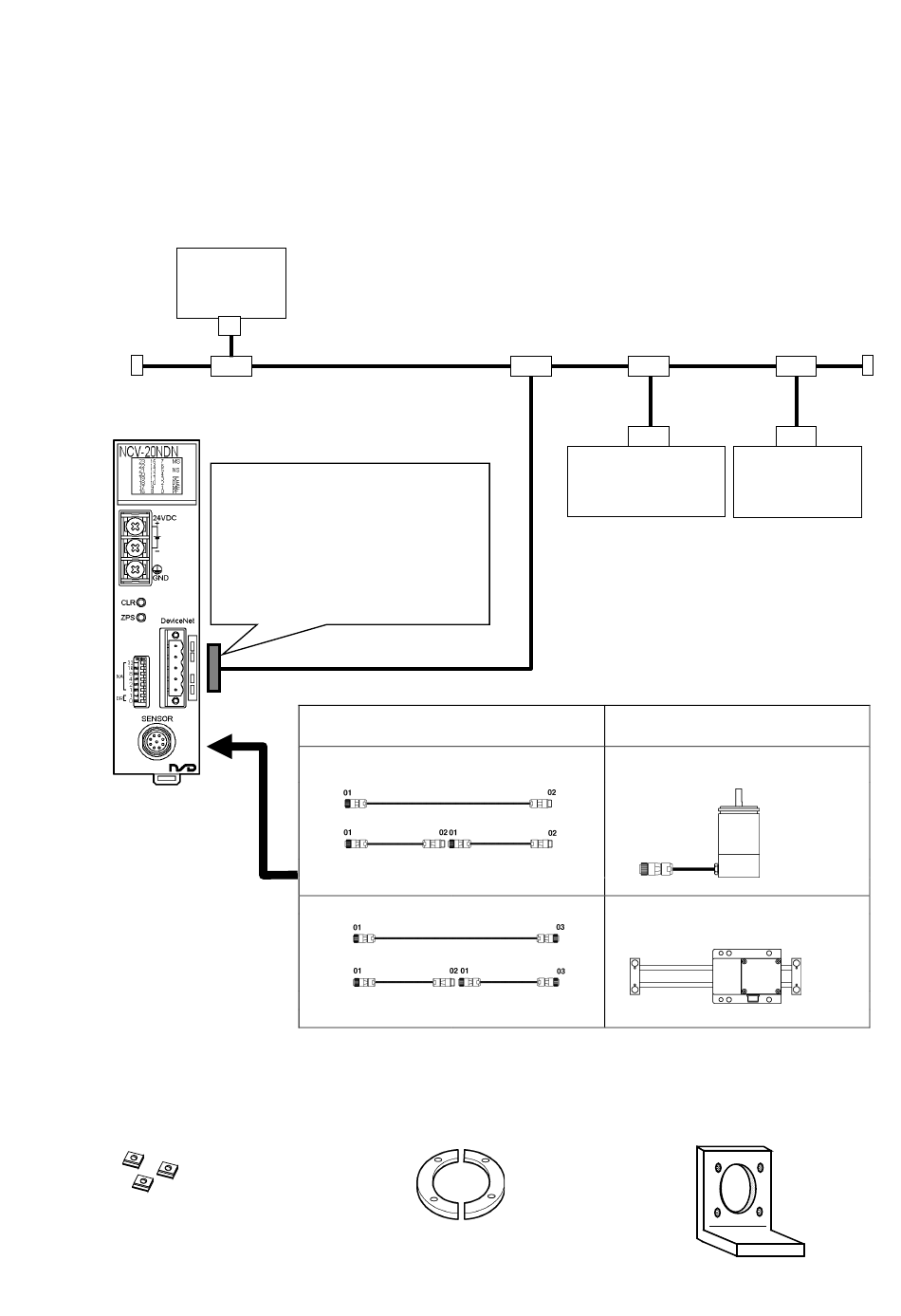

Following figure is indicated connection configuration of "NCV-20NDN Series".
Before ordering, please refer to the connection configuration and model list.
Please prepare equipments by the customer except from ① to ⑦ in the connection configuration.
● Connection configuration
① Converter
Slave unit
⑤Servo-mount fixture
Accessory of the MRE
ABSOCODER sensor
PLC,
DeviceNet,
master unit
Communication connector
Accessory of the converter
Connector: HR31-5.08P-5SC(72)
Crimp contact: HR31-SC-121(71)
Manufacturer: HIROSE ELECTRIC
CO.,LTD
③ Interconnecting cable
④ Extension sensor cable
4P-S-0102-[L]
4P-RBT-0102-[L]
4P-S-0102-[L]
4P-RBT-0102-[L]
⑥Reinforced servo-mount fixture
Option of the MRE
ABSOCODER sensor
DeviceNet network
4P-S-0102-[L]
4P-RBT-0102-[L]
4P-S-0102-[L]
4P-RBT-0102-[L]
4P-RBT-0103-[L]
4P-RBT-0103-[L]
4
Slave unit
Configuration tool
(Other manufacturers)
② ABSOCODER sensor
MRE-32SP062○○C
MRE-G[ ]SP062F○C
VLS-256PWB / 512PWB / 1024PW
VLS-512PYB / 1024PYB / 2048PY
⑦L type flange-mount fixture
Option of the MRE
ABSOCODER sensor
