When installing SCSI devices, use the end
connector on the cable first. Attach the next SCSI
device to next connector on the cable. (Do not skip
connectors when attaching more than one SCSI de-
vice.)
Connect the cables to the back of the drive. (See
the documentation that came with the drive exact
connector locations. Locations vary depending on
model.)
The audio cable comes with two connectors. Pick
the one that is appropriate for your drive type.

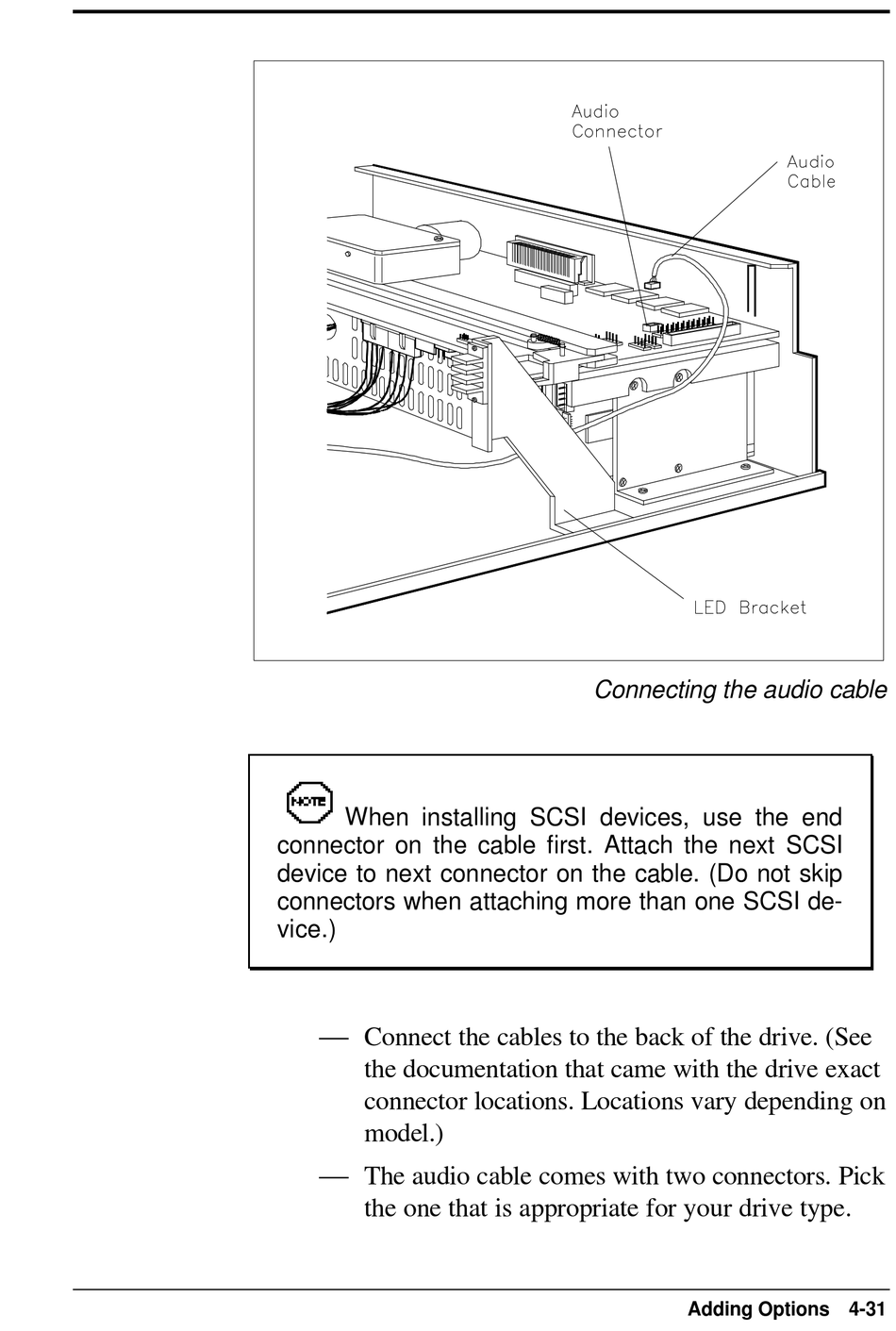

Connecting the audio cable
Adding Options 4-31
