6.4 Configuration via IO-Link
8027562.1P2W/2024-11-21 | SICK
Subject to change without notice
1
1...3 sec.
2
3

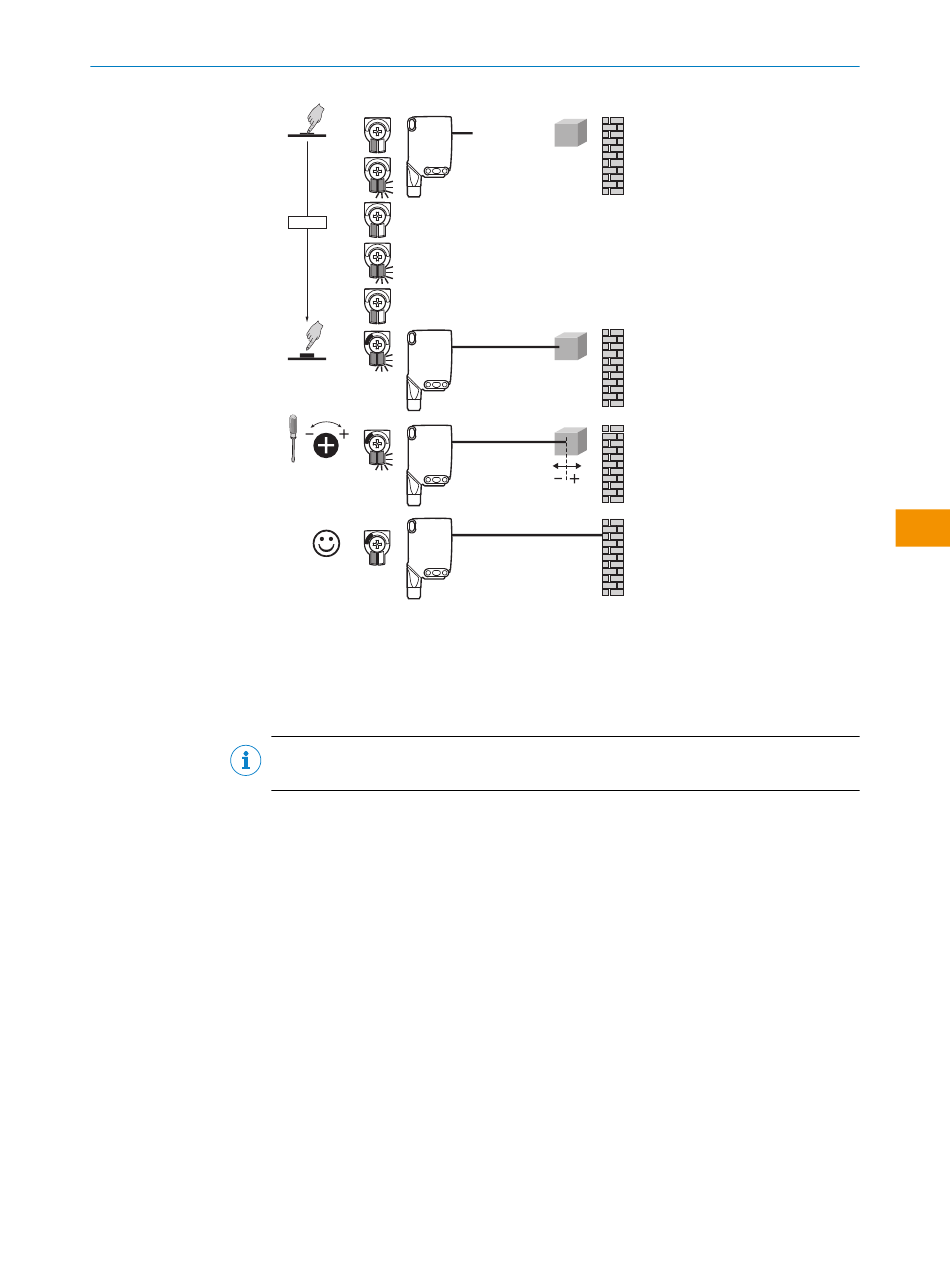

Figure 7: WTB4F, adjustment of the sensing range using a teach-turn adjustment
WTS16P-xxxxxx0
Sensor with preset sensing range.
The sensor is adjusted and ready for operation.
NOTE
Do not operate the teach-in button using sharp objects.
The sensing range can be adjusted via IO-Link. Please refer to the enclosed "IO-Link
photoelectric sensors" operating instructions for information.
In addition to manual setting the parameters on the device, the sensor can also be
configured via IO-Link.
Configuration via IO-Link can be performed in two ways:
• Configuration via the SiLink box (required software: SOPAS ET from SICK)
To do this, connect the sensor to a computer via USB using the SiLink box.
• Configuration via an IO-Link Master (PLC), e.g. SIG350
You can quickly and easily test and parameterize the connected products using the
SOPAS ET program (SICK Engineering Tool with graphic user navigation and convenient
visualization).
Details on configuration can be found in the detailed IO-Link description:
Information: Photoelectric sensors, SICK Smart Sensors /
OPERATING INSTRUCTIONS
IO-Link.
