5.1 Integration of the sensor in IO-Link mode
en
5.2 Notes on UL approval
6 Commissioning
6.1 Alignment
26 O P E R A T I N G I N S T R U C T I O N S | W16 MultiPulse
Q

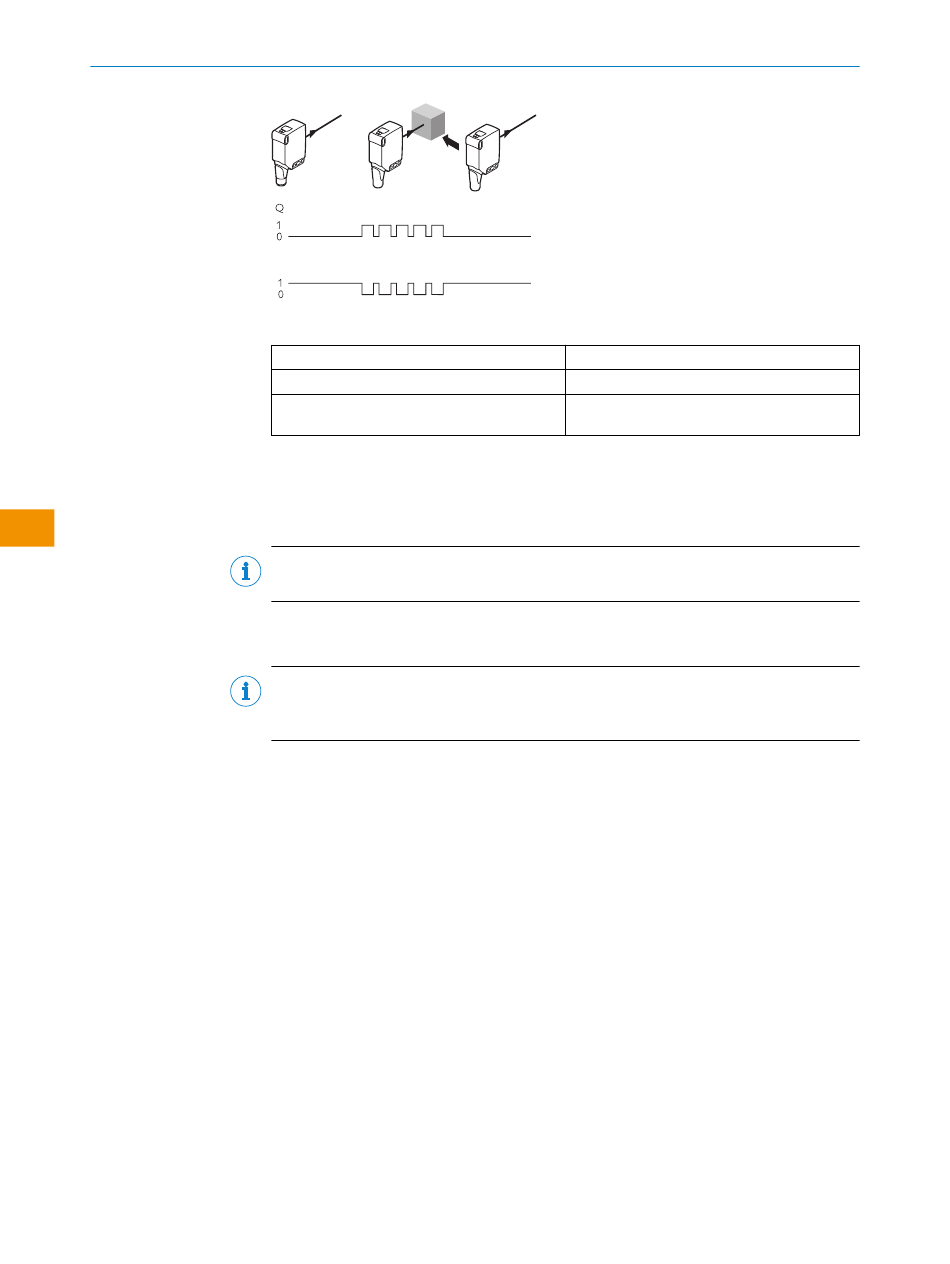

Table 5: Output status
Output oscillates
Output HIGH
Output LOW
To operate the product in IO-Link mode, it must be connected to a suitable IO-Link
Master. This is used for further integration into the control system.
NOTE
The cable length between the IO-Link Master and IO-Link device: maximum 20 m.
Details on integration can be found in the detailed IO-Link description:
mation: Photoelectric sensors, SICK Smart Sensors /
NOTE
After successful connection of the product to the IO-Link Master, the green (Power) LED
flashes to indicate a functioning IO-Link communication between the master and device.
The device shall be supplied from an isolating transformer having a secondary overcur‐
rent protective device that complies with UL 248 to be installed in the field rated either:
a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or
b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).
Alternatively, they can be supplied from a Class 2 power supply.
UL Environmental Rating: Enclosure type 1
Align the sensor with the object. Select the position so that the red emitted light beam
hits the center of the object. You must ensure that the optical opening (front screen) of
the sensor is completely clear [see
Object is present. Sensor is in operation.
Undefined status. Sensor is malfunctioning.
Object is not present or sensor is malfunction‐
ing.
IO-Link.
figure 3].
Technical Infor‐
