OPERATING INSTRUCTIONS
en
6.3 Setting
28 O P E R A T I N G I N S T R U C T I O N S | W16 MultiPulse
WTS16P-xxxxx1xx
Minimum distance in mm (y) between the set sensing
range (x) and white background (90 % remission)
y
90
18%/90%
1
80
2
6%/90%
3
70
90%/90%
60
50
40
30
20
10
0
0 200 400 600 800 1,000
(7.87) (15.75) (23.62) (31.5) (39.37)
Distance in mm (inch)
Recommended sensing range for the best
performance

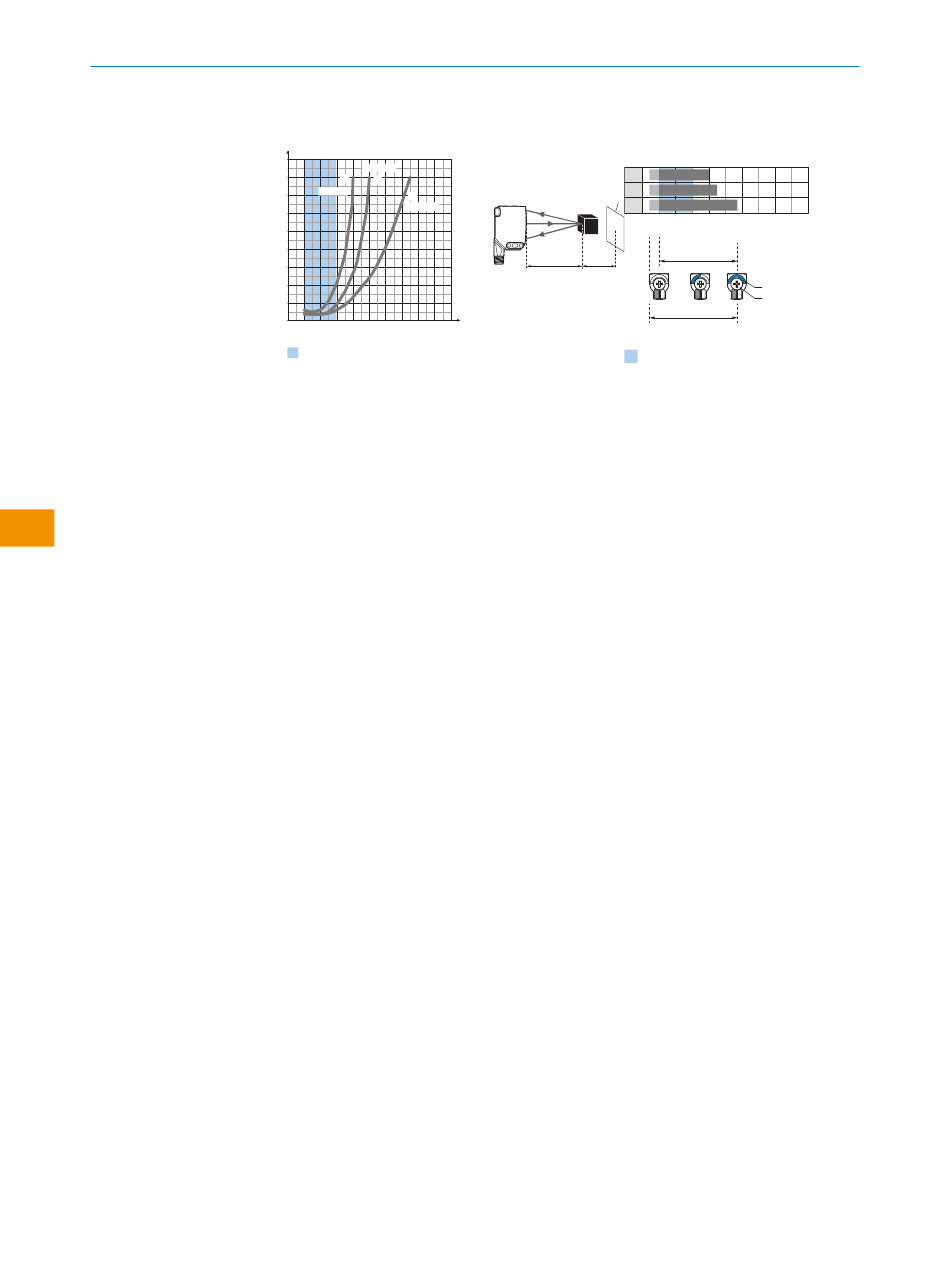

Figure 5: Characteristic curve
Sensing range on black, 6% remission
1
Sensing range on gray, 18% remission
2
Sensing range on white, 90% remission
3
Check the function as described in
behave as described in see table 4, page
WTS16P-xxxxxx2
The sensing range is adjusted by pressing the teach-in button (approx. 1-3 sec.).
Depending on the requirements, the potentiometer can be used for fine-tuning (without
pressing the teach-in button).
Clockwise rotation: Sensing range increased.
Counterclockwise rotation: Sensing range reduced.
The sensing range can also be adjusted using just the potentiometer.
Example:
1
Safe suppression of the background
2
White
background (90 %)
3
x y
Black object (6 % remission)
Set sensing range x = 300 mm
Needed minimum distance to white
x
background y = 20 mm
Figure 6: Bar graph
1
2
3
A
B
C
D
E
F
blue
see table 4, page 25. If the digital output fails to
25, check the application conditions.
100 400
50
100 500
50
100 750
50
0 100 200 400 800 1,000 1,500
(3.94) (7.87) (15.75) (31.5) (39.37) (59.06)
Distance in mm (inch)
D
BluePilot
E
F
C
A B
Recommended sensing range for the best performance
Black object, 6% remission fac‐
tor
Gray object, 18% remission
factor
White object, 90% remission
factor
Sensing range min. in mm
Sensing range max. in mm
Field of view
Adjustable switching threshold
for background suppression
Sensing range indicator
Teach-Turn adjustment
Recommended sensing range
for the best performance
