6.2 Check the application conditions
8027562.1P2W/2024-11-21 | SICK
Subject to change without notice

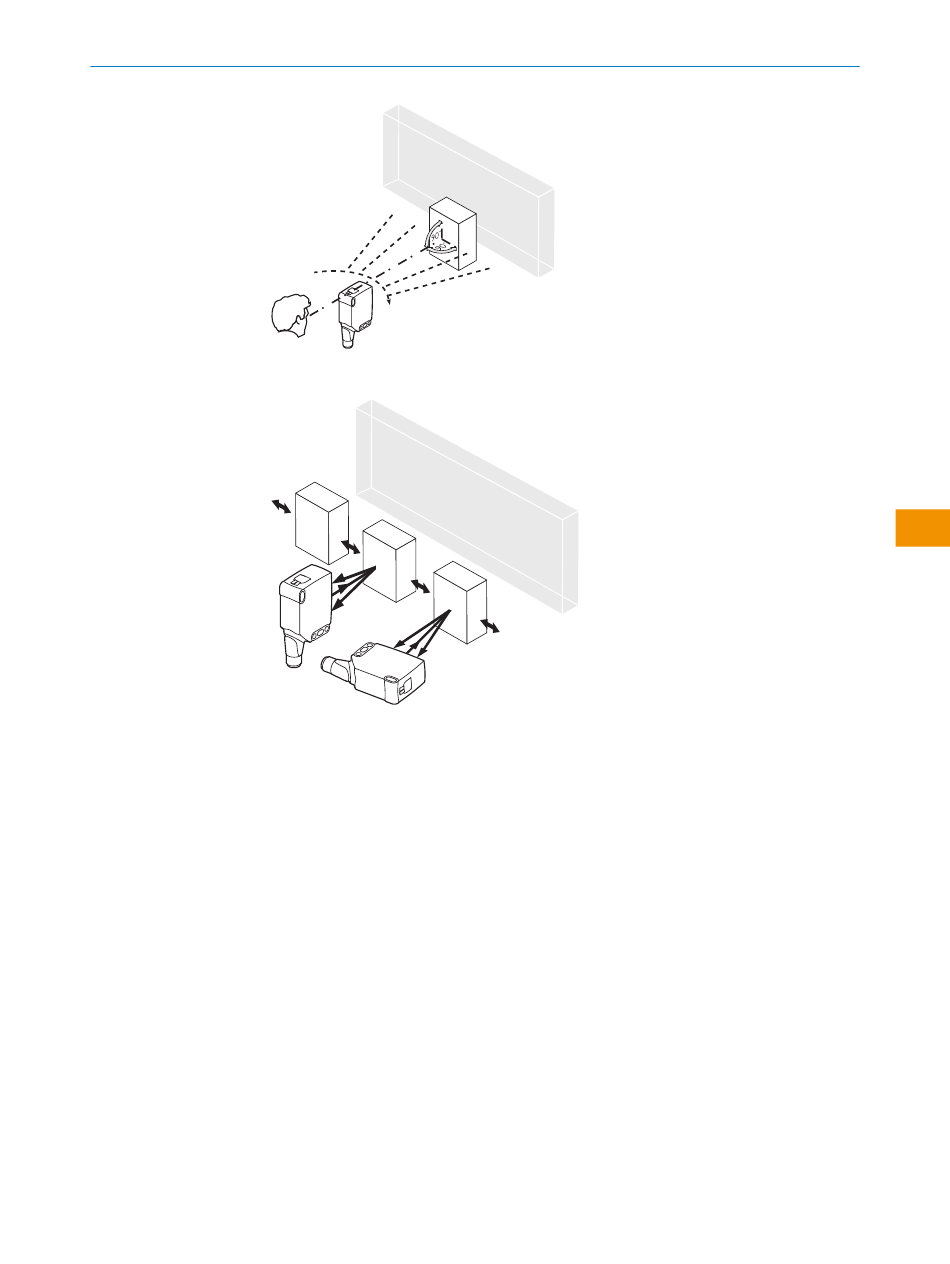

Figure 3: Alignment 1
WTS16
Figure 4: Alignment 1
WTS16 MultiPulse are photoelectric proximity sensors with background suppression.
Depending on the remission factor of the object to be detected, and perhaps the
background behind it, a minimum distance (y) between the set sensing range (x) and
the background is to be maintained.
Check the application conditions:
Adjust the sensing range and distance to the object and background as well as the
remission factor capability of the object according to the corresponding diagram (x
= sensing range, y = minimum distance between set sensing range and background
(white, 90%)) Remission factor: 6% = black 1, 18% = gray 2, 90% = white 3 (relative
to standard white as per DIN 5033). We recommend that the adjustment be performed
with an object with low remission factor.
The minimum distance (= y) for the background suppression can be determined from
the diagram [ figure 5 1] as follows:
Example: x = 400 mm, y = 80 mm. That is, the background (white, 90%) is suppressed
at a distance of > 80 mm of the configured sensing range.
