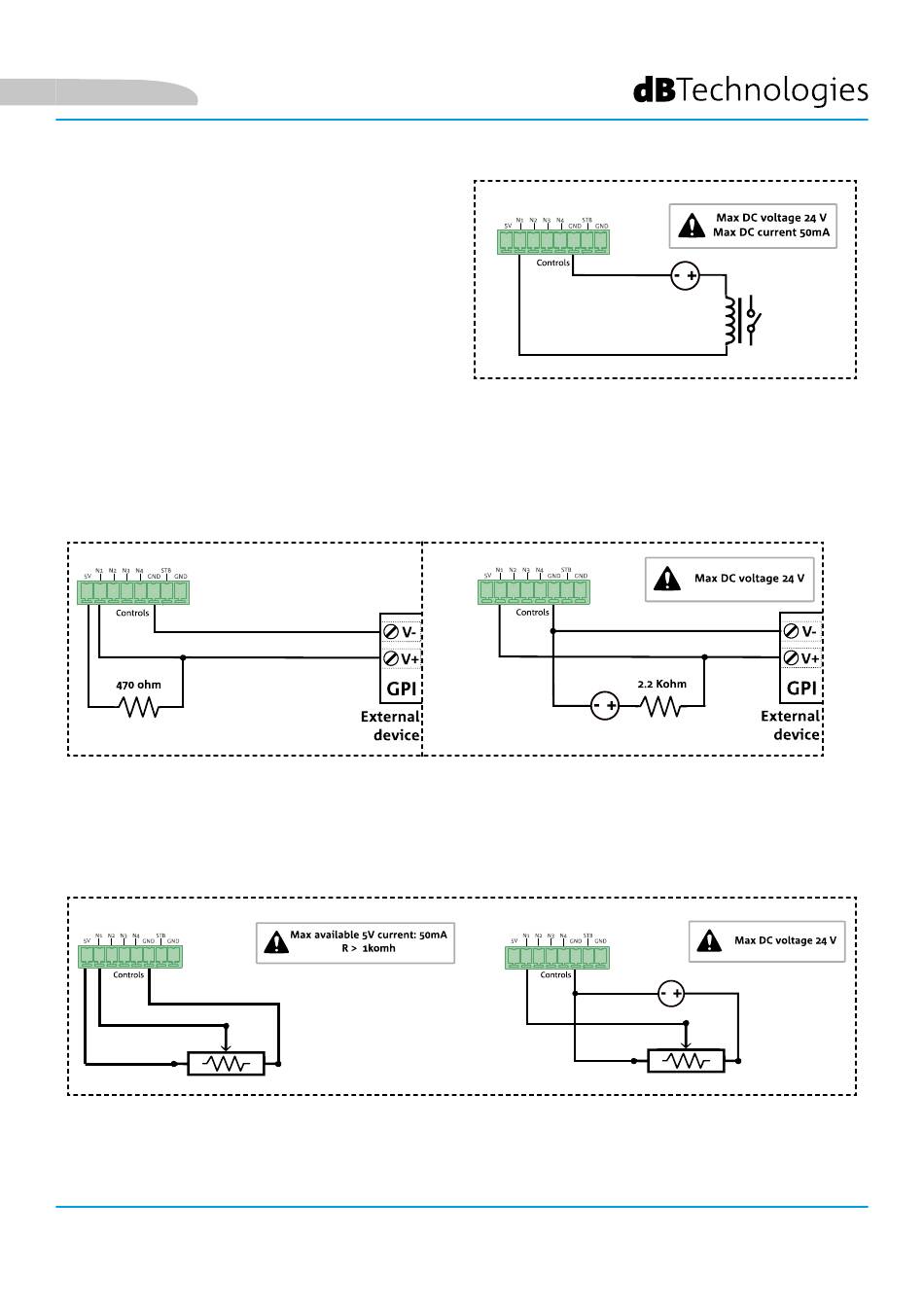

GPO - RELAY CONNECTION

Connecting a relay powered externally. It is configured

in the GPIO => Configure section of the AURORA NET

software.

GPO - EXTERNAL DEVICE

Connecting an external device powered by the IA3204R amplifier (on the left) or powered externally (on the

right). It is configured in the GPIO => Configure section of the AURORA NET software.

ANALOGUE - ROTARY CONNECTION

Connecting an analogue potentiometer powered by the IA3204R amplifier (on the left) or powered externally (on

the right). It is configured in the GPIO => Configure section of the AURORA NET software.

IA3204R

Cod. 420120450 REV. 1.0
