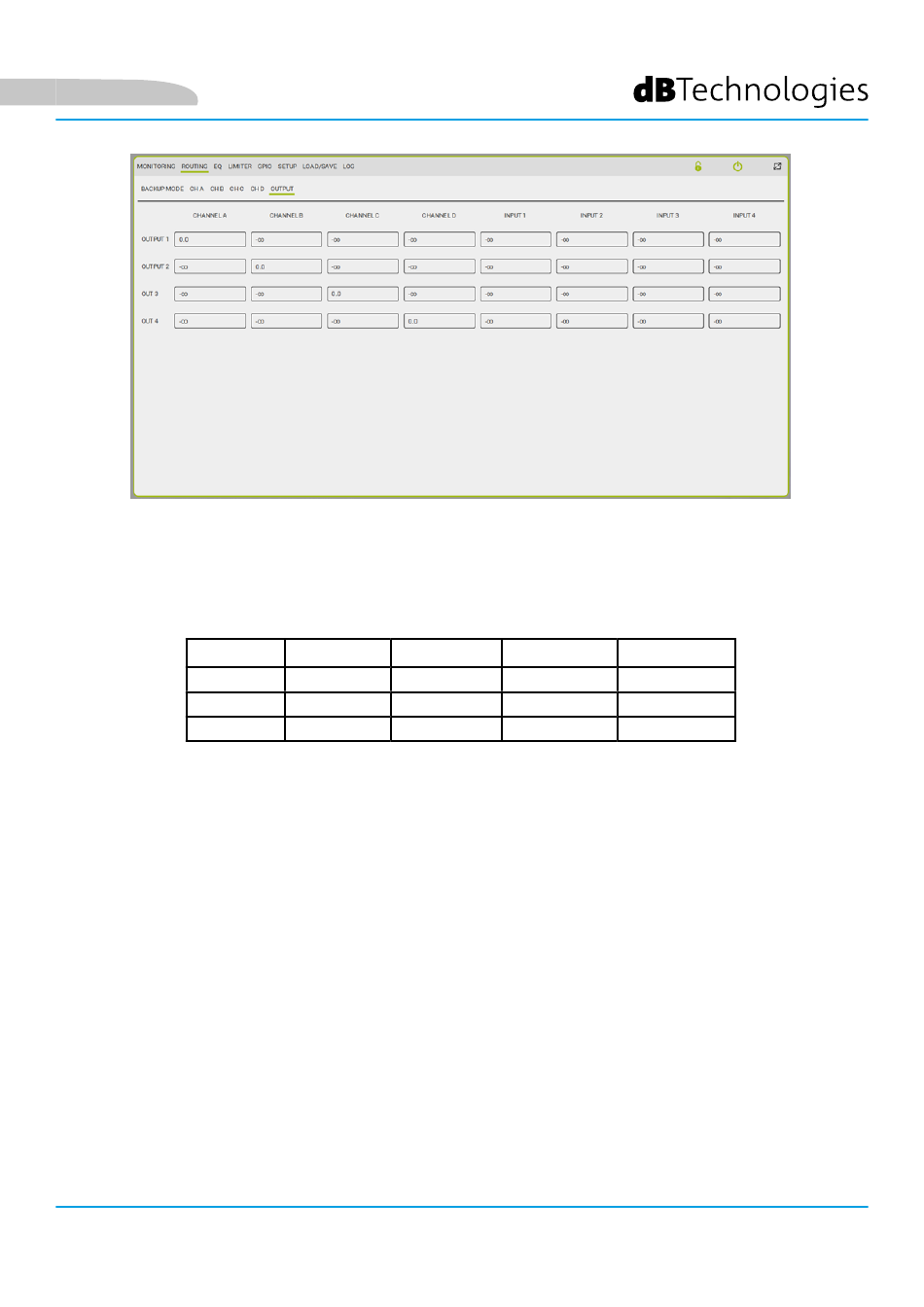

From the Output page, you can use the matrix to customise the routing to suit your needs.
The Default routing configuration is as follows:
Input Routing
1st
2nd
3rd
Backup Mode is set to NONE by default.
Output Routing
CH A => Out 1
CH B => Out 2
CH C => Out 3
CH D => Out 4
IA3204R
CH A CH B
Analogue 1 Analogue 2
NONE NONE
NONE NONE
CH C CH D
Analogue 3 Analogue 4
NONE NONE
NONE NONE
