MECHANICAL FEATURES

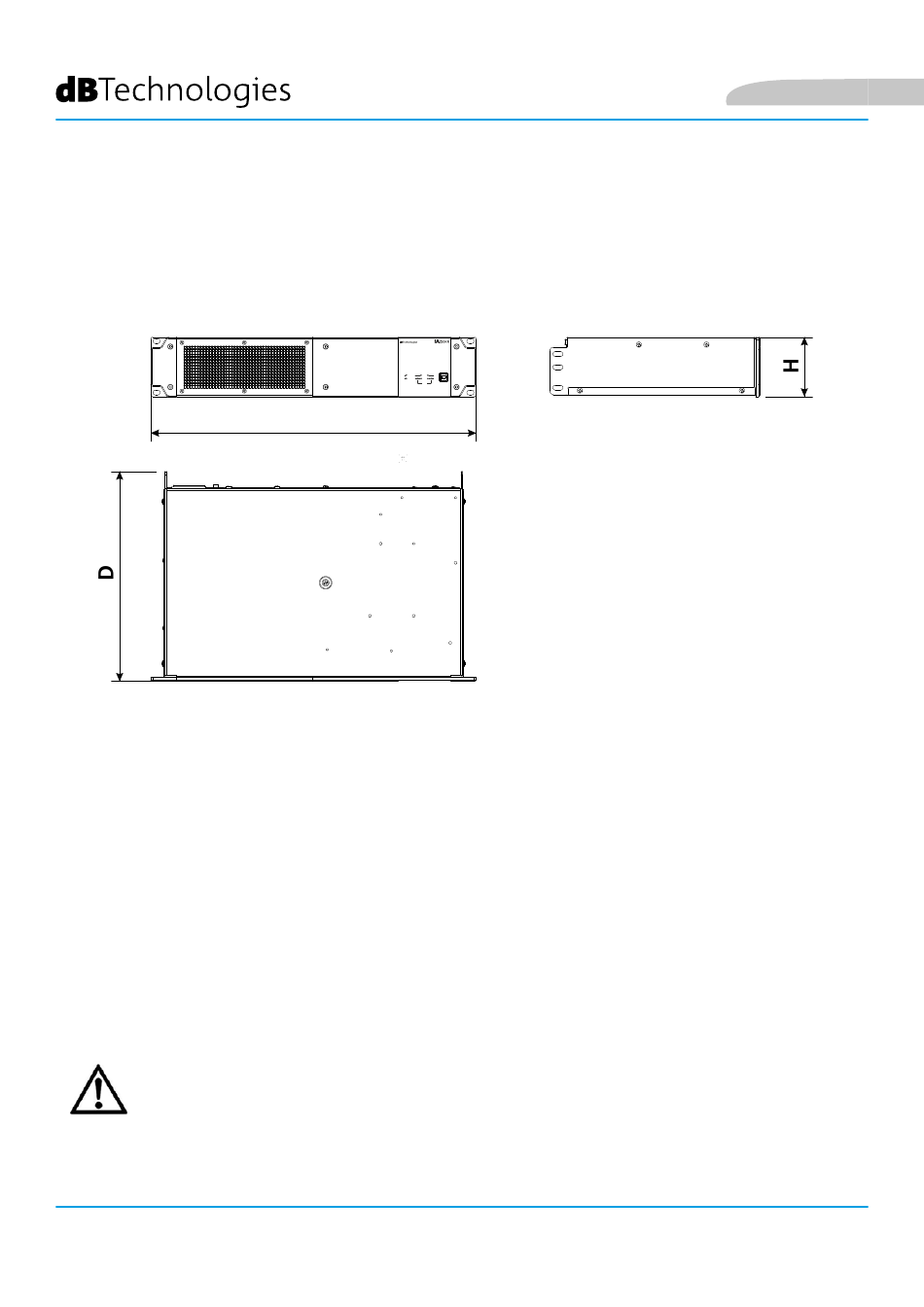

The IA3204R digital amplifier has been designed with particular attention to optimising its weight and overall
size. It can be installed in two rack units. It weighs 8.3 kg.
Its dimensions are: 440 mm (W) x 88 mm (H) x 305 mm (D).

AMPLIFIER AND CONTROL SECTION FEATURES

The new generation IA3204R class D digital amplifier offers a total amplification power of 3200 W RMS. The AD/
DA conversion stage is 48 kHz - 24 bit. The connections offer application flexibility, and include:
- four balanced analogue audio inputs on 3.81mm Euroblock connectors
- four power outputs in 5.08mm Euroblock format
- two RDNet ports on RJ45 connectors
- USB port
- four configurable GPIO (General Purpose Input/Output) ports
- standby input
!
CAUTION
• Protect the unit from moisture
• Do not attempt to open the amplifier
• In the event of malfunction, immediately turn off the power, disconnect the module from the
mains and contact an authorised service centre
