ROUTING

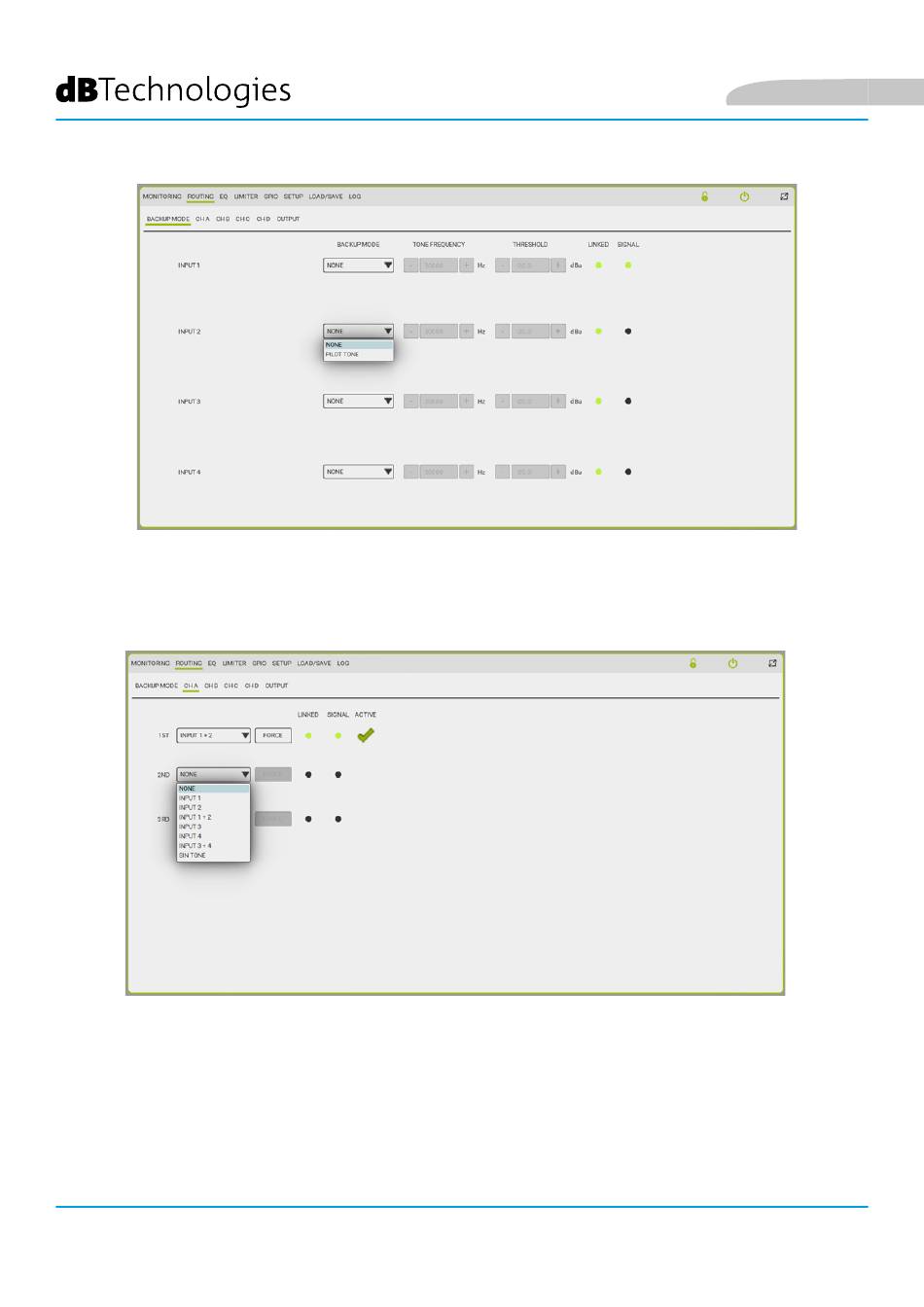

From the Backup Mode section, you can select the mode the amplifier uses to detect a signal at each input (set
to None by default). This feature has a critical role in automatic input channel selection; take care to set the
parameters correctly. When not using this function, set the "BackUp Mode" field to "NONE".
The matrix that assigns the input signals to the four processing channels is divided into CH A, CH B, CH C and CH D
panels. Each processing channel can receive the inputs or a pilot tone; there are three possible priority levels:
• the amplifier detects the channel with the highest priority and selects it
• when the selected channel loses the Link status, it switches to the input with the lower priority
You can use the Force button to force the amplifier to select a specific input.
