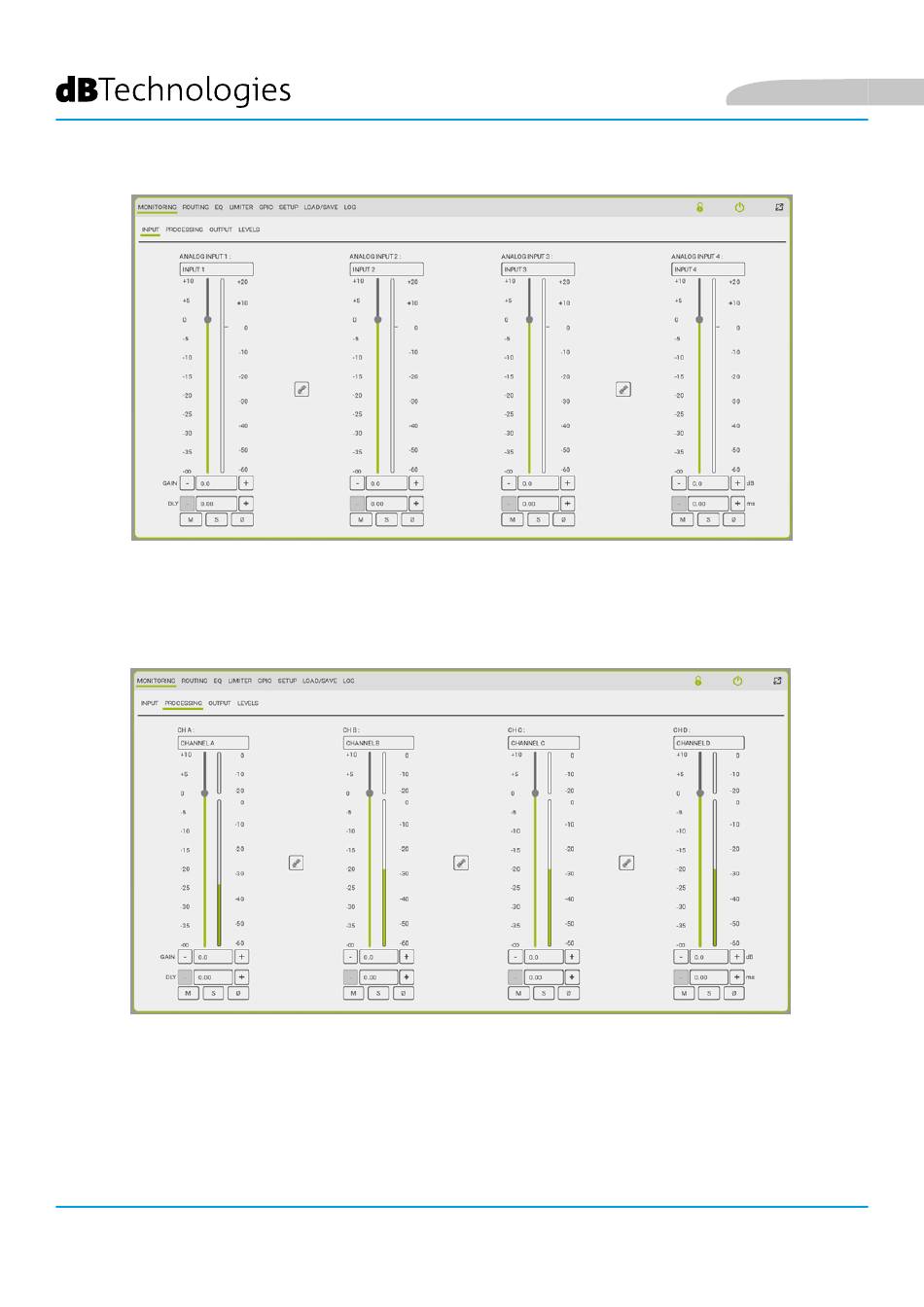

MONITORING

From the INPUT section, you can monitor the input signal levels, set the gain and delay time, solo, mute, invert
the polarity and link channels 1-2 and 3-4 together. The Link control affects the entire processing chain. By default,
Gain is set to 0 dB, Delay to 0 ms and the channels are not linked.
From the Processing section, you can monitor the signal levels and compression in the processing channels, solo,
mute, invert the polarity, apply a delay and link channels A-B, B-C and C-D. The Link control affects the entire
processing chain. The compressor meter refers to the compressor enabled in the Limiter => Processing Channels
section.
By default, Gain is set to 0 dB, Delay to 0 ms and the channels are not linked.
